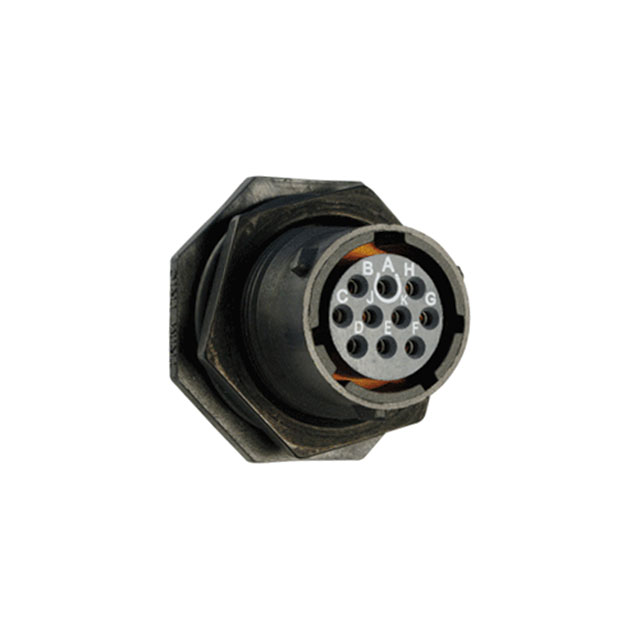

UTS712D10S32
ActiveSouriau-Sunbank by Eaton
FEMALE JAM NUT RECEPTACLE WITH CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
UTS712D10S32
ActiveSouriau-Sunbank by Eaton
FEMALE JAM NUT RECEPTACLE WITH CONTACTS
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | UTS712D10S32 |
|---|---|
| Applications | Instrumentation, Energy, Lighting, Telecommunications |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 16 Áin |
| Contact Finish Thickness - Mating | 0.41 Ám |
| Contact Material | Brass |
| Current Rating (Amps) | 4.5 A |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant, Board Lock |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polychloroprene |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 10 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
UTS71 Series
...
| Part | Primary Material | Current Rating (Amps) | Ingress Protection | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Mounting Feature | Features | Shielding | Fastening Type | Connector Type | Contact Finish - Mating | Voltage Rating | Contact Material | Orientation | Material Flammability Rating | Mounting Type | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Color | Number of Positions [custom] | Number of Positions [custom] | Accessory Type | Shell Size - Insert | For Use With/Related Products | Housing Color | Contact Type | Type | Shell Size - Insert | Number of Positions | Contact Size | Note | Contact Shape | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | Plastic | 10 A | IP68 IP69K | 16 Áin | 0.41 Ám | Energy Instrumentation Lighting Telecommunications | Bulkhead - Front Side Nut | Board Lock UV Resistant | Unshielded | Bayonet Lock | Male Pins Receptacle | Gold | 500 V | Brass | N | UL94 V-0 | Panel Mount Through Hole | 14 | 7 | Solder | -40 °C | 105 ░C | Nylon Polyamide (PA) | Black | 1 | 6 | |||||||||||||
Souriau-Sunbank by Eaton | Yellow | Coding Ring | 12 | Trim Trio® UTS Receptacles | |||||||||||||||||||||||||||||||||||
Souriau-Sunbank by Eaton | IP68 IP69K | Bulkhead - Rear Side Nut | Unshielded | Bayonet Lock | Receptacle Housing | N | UL94 V-0 | -40 °C | 105 ░C | Black | Crimp | For Female Sockets | 18-3 | 4 | 8 | Contacts Not Included Jam Nut Not Included | Circular | ||||||||||||||||||||||
Souriau-Sunbank by Eaton | Plastic | 4 A | IP68 IP69K | 16 Áin | 0.41 Ám | Energy Instrumentation Lighting Telecommunications | Bulkhead - Front Side Nut | UV Resistant | Unshielded | Bayonet Lock | Male Pins Receptacle | Gold | 250 VDC | Brass | N | UL94 V-0 | -40 °C | 105 ░C | Polychloroprene | Black | 19 | 19 | 14 | ||||||||||||||||
Souriau-Sunbank by Eaton | Plastic | 6 A | IP68 IP69K | 16 Áin | 0.41 Ám | Energy Instrumentation Lighting Telecommunications | Bulkhead - Front Side Nut | UV Resistant | Unshielded | Bayonet Lock | Male Pins Receptacle | Gold | 250 VDC | Brass | N | UL94 V-0 | -40 °C | 105 ░C | Polychloroprene | Black | 10-7 | 7 | |||||||||||||||||
Souriau-Sunbank by Eaton | Plastic | 12 A | IP68 IP69K | 16 Áin | 0.41 Ám | Energy Instrumentation Lighting Telecommunications | Bulkhead - Front Side Nut | Board Lock UV Resistant | Unshielded | Bayonet Lock | Male Pins Receptacle | Gold | 600 V | Brass | N | UL94 V-0 | Panel Mount Through Hole | Solder | -40 °C | 105 ░C | Polychloroprene | Black | 14-5 | ||||||||||||||||
Souriau-Sunbank by Eaton | IP67 IP69K | Bulkhead - Front Side Nut | Unshielded | Bayonet Lock | Receptacle Housing | N | UL94 V-0 | -40 °C | 105 ░C | Black | Crimp | For Female Sockets | 10-6 | 6 | 20 | Contacts Not Included | Circular | ||||||||||||||||||||||
Souriau-Sunbank by Eaton | IP68 IP69K | Bulkhead - Rear Side Nut | Unshielded | Bayonet Lock | Receptacle Housing | N | UL94 V-0 | -40 °C | 105 ░C | Black | Crimp | For Female Sockets | 18X2 | 8 16 | Contacts Not Included Jam Nut Not Included | Circular | |||||||||||||||||||||||
Souriau-Sunbank by Eaton | Plastic | 4.5 A | IP68 IP69K | 16 Áin | 0.41 Ám | Energy Instrumentation Lighting Telecommunications | Bulkhead - Front Side Nut | Board Lock UV Resistant | Unshielded | Bayonet Lock | Receptacle Female Sockets | Gold | 250 VDC | Brass | N | UL94 V-0 | Panel Mount Through Hole | Solder | -40 °C | 105 ░C | Polychloroprene | Black | 10 | ||||||||||||||||
Souriau-Sunbank by Eaton | Red | Coding Ring | 10 | Trim Trio® UTS Receptacles |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UTS71 Series
10 Position Circular Connector Receptacle, Female Sockets Solder
