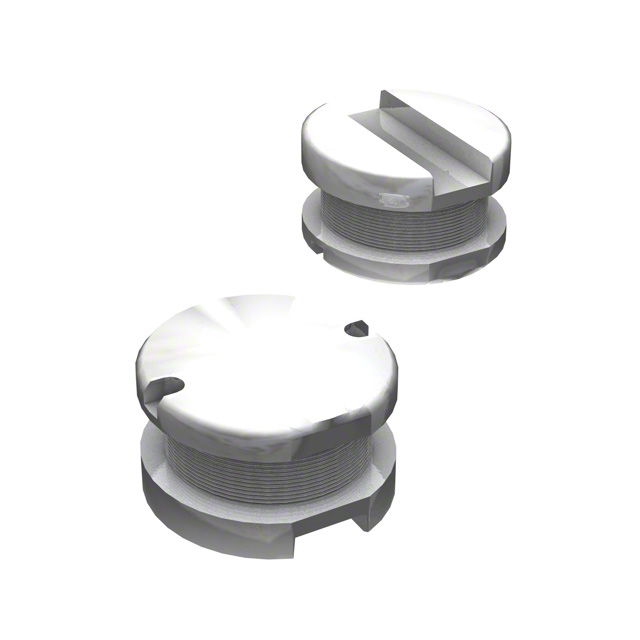

SDR1006-100ML

Active

Bourns Inc.

POWER INDUCTOR (SMD), 10 ΜH, 2.6 A, UNSHIELDED, 5.1 A, SDR1006 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

SDR1006-100ML

Active

Bourns Inc.

POWER INDUCTOR (SMD), 10 ΜH, 2.6 A, UNSHIELDED, 5.1 A, SDR1006 SERIES

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDR1006-100ML

Current - Saturation (Isat)	5.1 A
Current Rating (Amps)	2.6 A
Frequency - Self Resonant	21 MHz
Height - Seated (Max) [Max] [z]	5.8 mm
Height - Seated (Max) [Max] [z]	0.228 "
Inductance	10 µH
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	2.52 MHz, 30
Shielding	Unshielded
Size / Dimension [x]	0.386 in
Size / Dimension [x]	9.8 mm
Size / Dimension [y]	9.8 mm
Size / Dimension [y]	0.386 in
Tolerance	20 %
Type	Wirewound, Drum Core

SDR1006 Series

Part	Shielding	Tolerance	Material - Core	Inductance	Package / Case	Q @ Freq	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type	Frequency - Self Resonant	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	DC Resistance (DCR)
Bourns Inc. SDR1006-4R7ML	Unshielded	20 %	Ferrite	4.7 ÁH	Nonstandard	7.96 MHz 33	9.8 mm	0.386 in	0.386 in	9.8 mm	Drum Core Wirewound	40 MHz	36 mOhm	5.8 mm	0.228 "	4 A	Surface Mount	125 °C	-40 °C
Bourns Inc. SDR1006-392KL	Unshielded	10 %	Ferrite	3.9 mH	Nonstandard	32 252 kHz	9.8 mm	0.386 in	0.386 in	9.8 mm	Drum Core Wirewound	1.2 MHz	14.8 Ohm	5.8 mm	0.228 "	110 mA	Surface Mount	125 °C	-40 °C	280 mA
Bourns Inc. SDR1006-6R8ML	Unshielded	20 %	Ferrite	6.8 µH	Nonstandard	7.96 MHz 33	9.8 mm	0.386 in	0.386 in	9.8 mm	Drum Core Wirewound	32 MHz		5.8 mm	0.228 "	3.4 A	Surface Mount	125 °C	-40 °C	5.9 A	44 mOhm
Bourns Inc. SDR1006-152KL	Unshielded	10 %	Ferrite	1.5 mH	Nonstandard	31 252 kHz	9.8 mm	0.386 in	0.386 in	9.8 mm	Drum Core Wirewound	1.7 MHz		5.8 mm	0.228 "		Surface Mount	125 °C	-40 °C	450 mA	5 Ohm
Bourns Inc. SDR1006-100ML	Unshielded	20 %	Ferrite	10 µH	Nonstandard	2.52 MHz 30	9.8 mm	0.386 in	0.386 in	9.8 mm	Drum Core Wirewound	21 MHz		5.8 mm	0.228 "	2.6 A	Surface Mount	125 °C	-40 °C	5.1 A
Bourns Inc. SDR1006-180ML	Unshielded	20 %	Ferrite	18 µH	Nonstandard	2.52 MHz 30	9.8 mm	0.386 in	0.386 in	9.8 mm	Drum Core Wirewound	15 MHz	90 mOhm	5.8 mm	0.228 "	2.15 A	Surface Mount	125 °C	-40 °C	3.8 A
Bourns Inc. SDR1006-221KL	Unshielded	10 %	Ferrite	220 µH	Nonstandard	12 796 kHz	9.8 mm	0.386 in	0.386 in	9.8 mm	Drum Core Wirewound	3.8 MHz	730 mOhm	5.8 mm	0.228 "	660 mA	Surface Mount	125 °C	-40 °C	1.1 A
Bourns Inc. SDR1006-471KL	Unshielded	10 %	Ferrite		Nonstandard	12 796 kHz	9.8 mm	0.386 in	0.386 in	9.8 mm	Drum Core Wirewound	2.5 MHz	1.48 Ohm	5.8 mm	0.228 "	0.42 A	Surface Mount	125 °C	-40 °C	800 mA
Bourns Inc. SDR1006-560K	Unshielded	10 %	Ferrite	56 µH	Nonstandard	2.52 MHz 20	9.8 mm	0.386 in	0.386 in	9.8 mm	Drum Core Wirewound	7.5 MHz	190 mOhm	5.8 mm	0.228 "	1.15 A	Surface Mount	125 °C	-40 °C	2.1 A
Bourns Inc. SDR1006-390KL	Unshielded	10 %	Ferrite	39 µH	Nonstandard	2.52 MHz 20	9.8 mm	0.386 in	0.386 in	9.8 mm	Drum Core Wirewound	9 MHz		5.8 mm	0.228 "	1.35 A	Surface Mount	125 °C	-40 °C	2.6 A	140 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.66
		10	$ 0.55
		100	$ 0.45
	Digi-Reel®	1	$ 0.66
		10	$ 0.55
		100	$ 0.45
	Tape & Reel (TR)	800	$ 0.38
		1600	$ 0.35
		2400	$ 0.34
		4000	$ 0.33
		5600	$ 0.32
		8000	$ 0.31
		20000	$ 0.30
Newark	Each (Supplied on Full Reel)	1	$ 0.42
		5000	$ 0.41
		10000	$ 0.38
		20000	$ 0.35
		30000	$ 0.33
		50000	$ 0.31

Description

General part information

SDR1006 Series

10 µH Unshielded Drum Core, Wirewound Inductor 2.6 A 60mOhm Max Nonstandard

Documents

Technical documentation and resources

Datasheet

Product Change Notice EN

Datasheet
