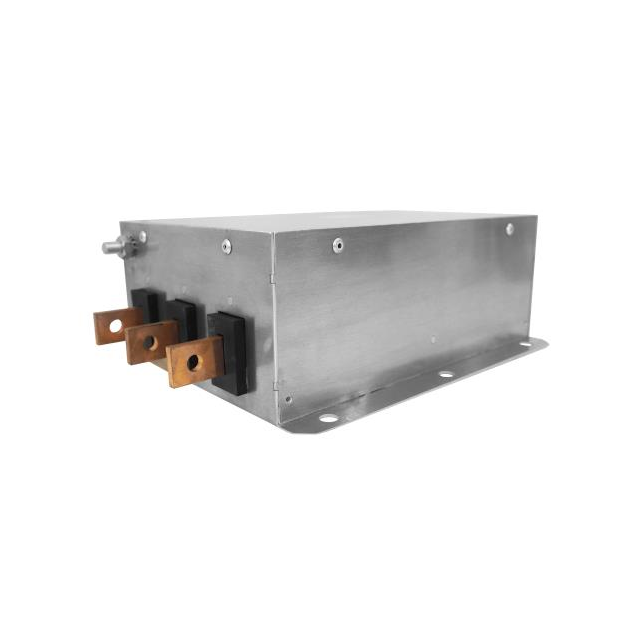

Specification	RP357-800-10-B

Applications	General Purpose
Approval Agency	SEMKO, ENEC, cURus, CE
Configuration	Three Stage
Current	800 A
Filter Subtype	Delta
Filter Type	Three Phase
Frequency - Operating	60Hz, 50Hz
Frequency - Operating (Max)	60 Hz
Frequency - Operating (Min)	50 Hz
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-25 °C
Termination Style	Terminal Post
Voltage - Rated AC	600 V
Voltage - Rated AC (Phase to Ground/Neutral)	3.8 kV

RP357 Series

Part	Configuration	Filter Subtype	Filter Type	Current	Termination Style	Voltage - Rated AC	Frequency - Operating (Min)	Frequency - Operating	Frequency - Operating (Max)	Approval Agency	Applications	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Voltage - Rated AC (Phase to Ground/Neutral)
Astrodyne TDI RP357-800-10-B	Three Stage	Delta	Three Phase	800 A	Terminal Post	600 V	50 Hz	50Hz 60Hz	60 Hz	CE cURus ENEC SEMKO	General Purpose	-25 °C	100 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-180-10-W	Three Stage	Delta	Three Phase	180 A	Wire Leads	600 V	50 Hz	50Hz 60Hz	60 Hz	CE cURus ENEC SEMKO	General Purpose	-25 °C	100 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-400-10-B	Three Stage	Delta	Three Phase	400 A	Terminal Post	600 V	50 Hz	50Hz 60Hz	60 Hz	CE cURus ENEC SEMKO	General Purpose	-25 °C	100 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-180-0-C	Three Stage	Delta	Three Phase	180 A	Terminal Block	600 V	50 Hz	50Hz 60Hz	60 Hz	CE cURus ENEC SEMKO	General Purpose	-25 °C	100 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-180-10-S	Three Stage	Delta	Three Phase	180 A	Threaded Post (M10)	600 V	50 Hz	50Hz 60Hz	60 Hz	CE cURus ENEC SEMKO	General Purpose	-25 °C	100 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-150-100-W	Three Stage	Delta	Three Phase	150 A	Wire Leads	600 V	50 Hz	50Hz 60Hz	60 Hz	CE cURus ENEC SEMKO	General Purpose	-25 °C	100 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-2500-2000-B	Three Stage	Delta	Three Phase	2500 A	Terminal Post	600 V	50 Hz	50Hz 60Hz	60 Hz	CE cURus ENEC SEMKO	General Purpose	-25 °C	100 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-1000-100-B	Three Stage	Delta	Three Phase	1000 A	Terminal Post	600 V	50 Hz	50Hz 60Hz	60 Hz	CE cURus ENEC SEMKO	General Purpose	-25 °C	100 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-250-1000-S	Three Stage	Delta	Three Phase	250 A	Threaded Post (M10)	600 V	50 Hz	50Hz 60Hz	60 Hz	CE cURus ENEC SEMKO	General Purpose	-25 °C	100 °C	Chassis Mount	3.8 kV
Astrodyne TDI RP357-2500-0-B	Three Stage	Delta	Three Phase	2500 A	Terminal Post	600 V	50 Hz	50Hz 60Hz	60 Hz	CE cURus ENEC SEMKO	General Purpose	-25 °C	100 °C	Chassis Mount	3.8 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RP357-800-10-B | Datasheet
