C2410A.38.10

Active

Prysmian Group

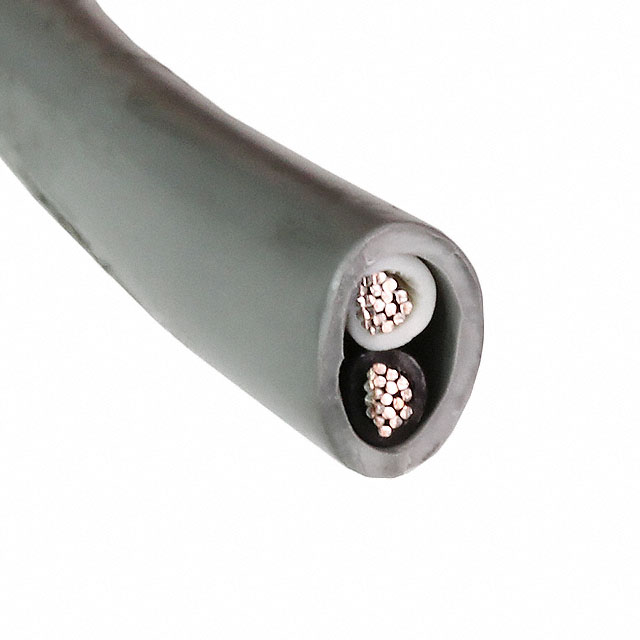

CABLE 2COND 12AWG GRAY 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 12AWG GRAY 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C2410A.38.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [diameter]	0.0185 in
Jacket (Insulation) Diameter [diameter]	9.3 mm
Jacket (Insulation) Diameter [diameter]	0.366 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	600 V
Wire Gauge	12 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Jacket (Insulation) Material	Usage	Wire Gauge	Length [x]	Length [x]	Conductor Strand [diameter]	Conductor Strand [custom]	Conductor Material	Cable Type	Jacket Color	Conductor Insulation	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length
Prysmian Group C2410A.38.10	9.3 mm	0.366 in	2	Poly-Vinyl Chloride (PVC)	Communication Control	12 AWG	500 '	152.4 m	0.0185 in	19 Strands	Copper Tinned	Multi-Conductor	Gray	Poly-Vinyl Chloride (PVC)	600 V	-20 C	90 °C
Prysmian Group C2410A.41.10	9.3 mm	0.366 in	2	Poly-Vinyl Chloride (PVC)	Communication Control	12 AWG	50 ft 100 ft 500 '	30.5 m 152.4 m	0.0185 in	19 Strands	Copper Tinned	Multi-Conductor	Gray	Poly-Vinyl Chloride (PVC)	300 V	-20 C	80 C	15.24 m 304.8 m	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	22000	$ 1.44

General part information

2 Conductor Multi-Conductor Cable Gray 12 AWG 500.0' (152.4m)

Technical documentation and resources

No documents available
