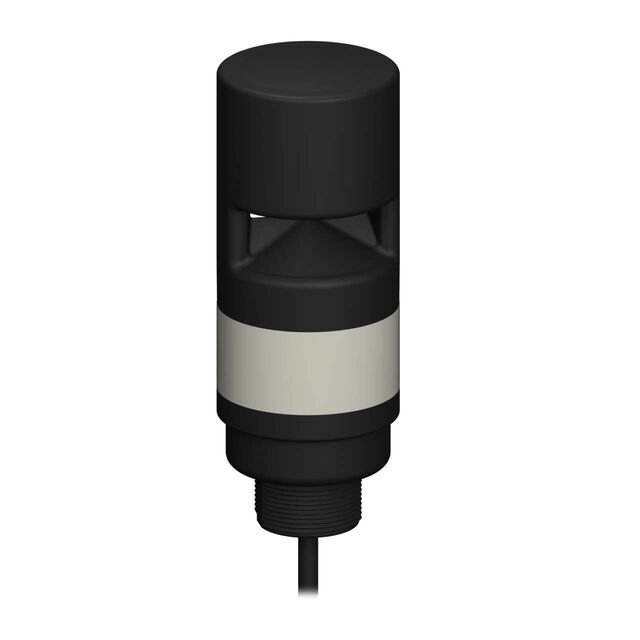

Specification	TL50HRAOS3

Features	Alarm
Function - Audible	Pulse
Function - Lighting	Steady
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Lamp Type	LED
Light Color	Red
Number of Stacks	2
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply	30 VDC
Voltage - Supply (Maximum)	24 VAC
Voltage - Supply (Minimum)	18 VAC
Voltage - Supply (Range 1 Maximum)	24 VDC
Voltage - Supply (Range 1 Minimum)	18 VAC
Voltage - Supply Maximum	24 VDC
Voltage - Supply Minimum	18 VDC

TL50HR Series

Part	Ingress Protection Description	Ingress Protection IP Rating	Termination Style	Type	Light Color	Number of Stacks	Function - Lighting	Lamp Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Minimum)	Voltage - Supply (Option 1)	Voltage - Supply (Maximum)	Voltage - Supply Maximum	Voltage - Supply Minimum	Voltage - Supply	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 1 Minimum)	Function - Audible	Features
BANNER ENGINEERING TL50HRQP	Dust Tight Waterproof	IP67	Cable with Connector	Complete Unit	Red	1	Steady	LED	50 °C	-40 °C	18 VDC	18 VAC	24 VAC	30 VDC	30 V	18 VDC	24 VDC	24 VDC	30 V	24 VAC
BANNER ENGINEERING TL50HRYGAOSQ	Dust Tight Waterproof	IP67	Connector	Complete Unit	Green Red Yellow	4	Steady	LED	50 °C	-20 °C		18 VAC		24 VAC	24 VDC	18 VDC	30 VDC	24 VDC		18 VAC	Continuous	Alarm
BANNER ENGINEERING TL50HRAOS3	Dust Tight Waterproof	IP67	Wire Leads	Complete Unit	Red	2	Steady	LED	50 °C	-20 °C		18 VAC		24 VAC	24 VDC	18 VDC	30 VDC	24 VDC		18 VAC	Pulse	Alarm
BANNER ENGINEERING TL50HRYGQ	Dust Tight Waterproof	IP67	Connector	Complete Unit	Green Red Yellow	3	Steady	LED	50 °C	-40 °C	12 VDC	12 VDC	24 VAC	30 VDC	30 V	12 VAC	24 VDC	24 VDC	30 V	24 VAC
BANNER ENGINEERING TL50HRGYBYQ	Dust Tight Waterproof	IP67	Connector	Complete Unit	Blue Green Red Yellow	5	Steady	LED	50 °C	-40 °C		18 VAC		24 VAC	24 VDC	18 VDC	30 VDC	24 VDC		18 VAC
BANNER ENGINEERING TL50HRALSQ	Dust Tight Waterproof	IP67	Connector	Complete Unit	Red	2	Steady	LED	50 °C	-20 °C		18 VAC		24 VAC	24 VDC	18 VDC	30 VDC	24 VDC		18 VAC	Continuous	Alarm
BANNER ENGINEERING TL50HRALS3Q	Dust Tight Waterproof	IP67	Connector	Complete Unit	Red	2	Steady	LED	50 °C	-20 °C		18 VAC		24 VAC	24 VDC	18 VDC	30 VDC	24 VDC		18 VAC	Pulse	Alarm
BANNER ENGINEERING TL50HRGQP	Dust Tight Waterproof	IP67	Connector	Complete Unit	Green Red	2	Steady	LED	50 °C	-40 °C		18 VAC		24 VAC	24 VDC	18 VDC	30 VDC	24 VDC		18 VAC
BANNER ENGINEERING TL50HRAOS3Q	Dust Tight Waterproof	IP67	Connector	Complete Unit	Red	2	Steady	LED	50 °C	-20 °C		18 VAC		24 VAC	24 VDC	18 VDC	30 VDC	24 VDC		18 VAC	Pulse	Alarm
BANNER ENGINEERING TL50HRYBG	Dust Tight Waterproof	IP67	Wire Leads	Complete Unit	Blue Green Red Yellow	4	Steady	LED	50 °C	-40 °C		18 VAC		24 VAC	24 VDC	18 VDC	30 VDC	24 VDC		18 VAC
