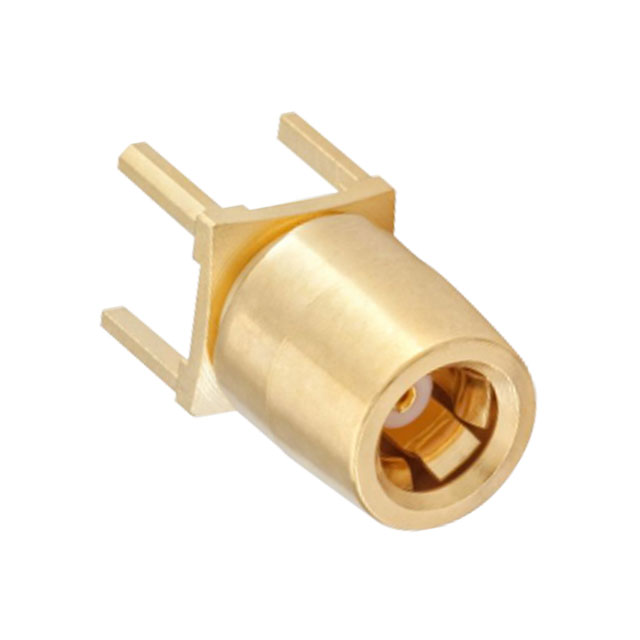

59K102-400L5

Active

Rosenberger

RF SMB CONNECTOR, FEMALE, BOARD MOUNT, SOLDER TERMINAL, JACK, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Rosenberger

RF SMB CONNECTOR, FEMALE, BOARD MOUNT, SOLDER TERMINAL, JACK, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	59K102-400L5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Shield Termination	Contact Termination	Center Contact Plating	Center Contact Material	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Connector Style	Voltage Rating	Frequency - Max [Max]	Impedance	Number of Ports	Mating Cycles	Fastening Type	Housing Color	Body Finish	Body Material
Rosenberger 59K102-400L5	Solder	Solder	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	155 °C	-55 °C	Female Socket Jack	Through Hole	SMB	250 VDC	4 GHz	50 Ohms	1	500	Snap-On	Gold	Gold	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Jack, Female Socket 50 Ohms Through Hole Solder
