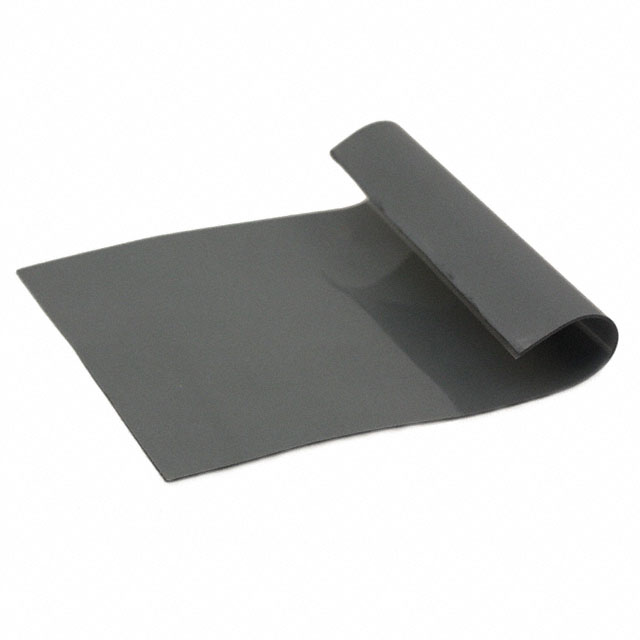

5519 210 MM X 155 MM X 1.0 MM

Active

3M (TC)

THERM PAD 210MMX155MM GRAY

Search across all available documentation for this part.

Active

3M (TC)

THERM PAD 210MMX155MM GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	5519 210 MM X 155 MM X 1.0 MM

Adhesive	Tacky - Both Sides
Color	Gray
Outline [x]	210 mm
Outline [y]	155 mm
Shape	Rectangular
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Thermal Conductivity	4.9 W/m-K
Thickness	0.991 mm
Thickness	0.039 in
Type	Interface Pad, Sheet
Usage	Thermally Conductive

Part	Outline [y]	Outline [x]	Shape	Thickness	Thickness	Shelf Life Start	Thermal Conductivity	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Adhesive	Usage	Shelf Life	Type	Color
3M (TC) 5519 210 MM X 155 MM X 1.0 MM	155 mm	210 mm	Rectangular	0.991 mm	0.039 in	Date of Manufacture	4.9 W/m-K	70 °F	21 °C	Tacky - Both Sides	Thermally Conductive	24 Months	Interface Pad Sheet	Gray
3M (TC) 5519-1.5MM	155 mm	210 mm	Rectangular	1.5 mm	0.0591 "	Date of Manufacture	4.9 W/m-K	70 °F	21 °C	Tacky - Both Sides	Thermally Conductive	24 Months	Interface Pad Sheet	Gray
3M (TC) 5519 210 MM X 155 MM X 2.0 MM	155 mm	210 mm	Rectangular	2 mm	0.079 in	Date of Manufacture	4.9 W/m-K	70 °F	21 °C	Tacky - Both Sides	Thermally Conductive	24 Months	Interface Pad Sheet	Gray
3M (TC) 5519-0.5MM	155 mm	210 mm	Rectangular	0.508 mm	0.02 in	Date of Manufacture	4.9 W/m-K	70 °F	21 °C	Tacky - Both Sides	Thermally Conductive	24 Months	Interface Pad Sheet	Gray
