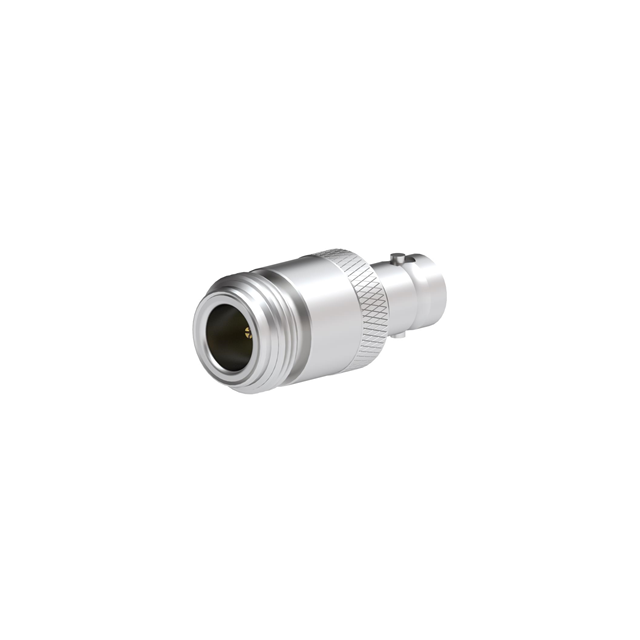

R192418010

Active

Radiall USA, Inc.

BNC HDTV FEMALE- N FEMALE STRAIG

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC HDTV FEMALE- N FEMALE STRAIG

Technical Specifications

Parameters and characteristics for this part

Specification	R192418010

Adapter Series	N, BNC, HD
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	BNC HD Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	6000 MHz
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Adapter Series	Dielectric Material	Center Contact Material	Style	Frequency - Max [Max]	Convert To (Adapter End)	Adapter Type	Mating Cycles	Fastening Type	Impedance	Convert From (Adapter End)	Center Contact Plating	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Conversion Type	Center Gender	Body Finish
Radiall USA, Inc. R192418010	BNC HD N	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Straight	6000 MHz	Female Socket N Jack	Jack to Jack	500	Bayonet Lock Threaded	75 Ohms	BNC HD Jack Female Socket	Gold	Brass	-65 ░C	165 °C	Free Hanging (In-Line)	Between Series	Female to Female	White Bronze
Radiall USA, Inc. R192419000	BNC to N	Polytetrafluoroethylene (PTFE)	Brass	Straight	1 GHz	Female Socket N Jack	Plug to Jack	500	Bayonet Lock Threaded	75 Ohms	BNC Plug Male Pin	Gold	Brass	-55 °C	155 °C	Free Hanging (In-Line)	Between Series		Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 64.22

General part information

Adapter Coaxial Connector BNC HD Jack, Female Socket To N Jack, Female Socket 75 Ohms
