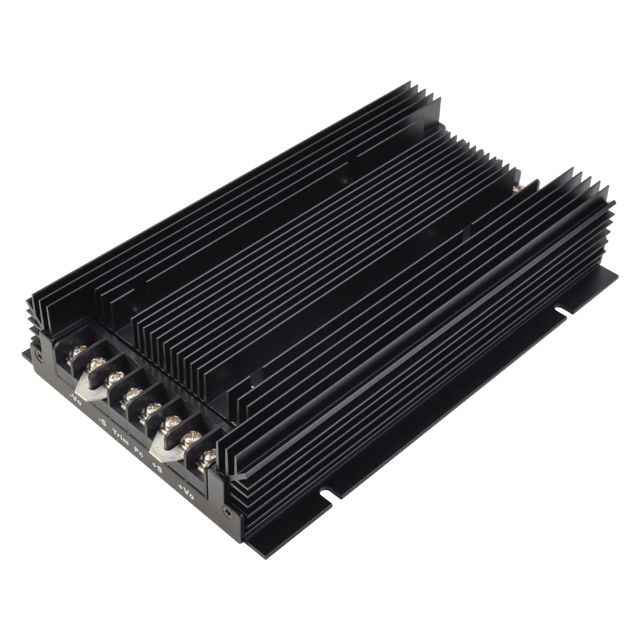

VFK600-D48-S12

Active

CUI Inc.

DC/DC CONVERTER 12V 600W

Deep-Dive with AI

Search across all available documentation for this part.

VFK600-D48-S12

Active

CUI Inc.

DC/DC CONVERTER 12V 600W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VFK600-D48-S12

Current - Output (Max) [Max]	50 A
Efficiency	90 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	600 W
Size / Dimension [x]	199.1 mm
Size / Dimension [x]	7.84 "
Size / Dimension [y]	4.99 in
Size / Dimension [y]	126.8 mm
Size / Dimension [z]	1.54 "
Size / Dimension [z]	39.1 mm
Type	Enclosed
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Output 1	12 V

VFK600 Series

Part	Voltage - Input (Max) [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Efficiency	Number of Outputs	Power (Watts)	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Input Type	Approval Agency
CUI Inc. VFK600-D48-S48	75 V	Chassis Mount	199.1 mm	7.84 "	4.99 in	1.54 "	126.8 mm	39.1 mm	100 °C	-40 °C	Enclosed	92 %	1	600 W	48 V	12.5 A	36 V
CUI Inc. VFK600-D24-S32-DIN			198.9 mm	7.83 in	5 "	2.11 "	127 mm	53.6 mm	85 °C	-40 °C		91 %	1	608 W	32 V	19 A		36 V	18 V	DC	CE
CUI Inc. VFK600-D48-S48-DIN			198.9 mm	7.83 in	5 "	2.11 "	127 mm	53.6 mm	85 °C	-40 °C		92 %	1	600 W	48 V	12.5 A		75 V	36 V	DC	CE
CUI Inc. VFK600-D48-S12	75 V	Chassis Mount	199.1 mm	7.84 "	4.99 in	1.54 "	126.8 mm	39.1 mm	100 °C	-40 °C	Enclosed	90 %	1	600 W	12 V	50 A	36 V
CUI Inc. VFK600-D24-S28	36 V	Chassis Mount	199.1 mm	7.84 "	4.99 in	1.54 "	126.8 mm	39.1 mm	100 °C	-40 °C	Enclosed	90 %	1	600 W	28 V	21.5 A	18 V
CUI Inc. VFK600-D24-S12-DIN			198.9 mm	7.83 in	5 "	2.11 "	127 mm	53.6 mm	85 °C	-40 °C		89 %	1	600 W	12 V	50 A		36 V	18 V	DC	CE
CUI Inc. VFK600-D48-S28-DIN			198.9 mm	7.83 in	5 "	2.11 "	127 mm	53.6 mm	85 °C	-40 °C		91 %	1	700 W	28 V	25 A		75 V	36 V	DC	CE
CUI Inc. VFK600-D48-S28	75 V	Chassis Mount	199.1 mm	7.84 "	4.99 in	1.54 "	126.8 mm	39.1 mm	100 °C	-40 °C	Enclosed	91 %	1	700 W	28 V	25 A	36 V
CUI Inc. VFK600-D48-S32-DIN			198.9 mm	7.83 in	5 "	2.11 "	127 mm	53.6 mm	85 °C	-40 °C		92 %	1	608 W	32 V	19 A		75 V	36 V	DC	CE
CUI Inc. VFK600-D48-S24	75 V	Chassis Mount	199.1 mm	7.84 "	4.99 in	1.54 "	126.8 mm	39.1 mm	100 °C	-40 °C	Enclosed	91 %	1	600 W	24 V	25 A	36 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 477.12
		5	$ 461.21
		12	$ 453.26

Description

General part information

VFK600 Series

Enclosed DC DC Converter 1 Output 12V 50A 75V Input

Documents

Technical documentation and resources

No documents available
