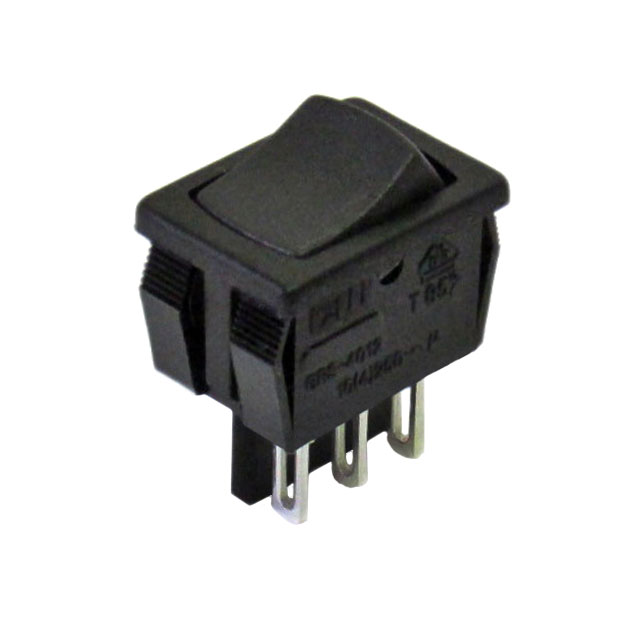

GRS-4012-0051
ActiveCW Industries
SWITCH ROCKER SPDT 13A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GRS-4012-0051
ActiveCW Industries
SWITCH ROCKER SPDT 13A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRS-4012-0051 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 13 A |
| Electrical Life | 25000 Steps |
| Features | Terminal Barriers |
| Mechanical Life | 25000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions | Rectangular |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - AC | 125 V |
GRS-4012 Series
| Part | Circuit | Current Rating (Amps) | Mounting Type | Electrical Life | Actuator Marking | Features | Switch Function | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions | Panel Cutout Dimensions [x] | Color - Actuator/Cap | Termination Style | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | SPDT | 8 A | Panel Mount Snap-In | 25000 Steps | O I | Terminal Barriers | On-Mom | Concave (Curved) | -20 C | 105 ░C | 125 V | 12.9 mm | Rectangular | 19.2 mm | Black | Quick Connect - 0.187" (4.7mm) | 25000 Steps |
CW Industries | SPDT | 8 A | Panel Mount Snap-In | 25000 Steps | No Marking | On-On | Concave (Curved) | -20 C | 105 ░C | 125 V | 12.9 mm | Rectangular | 19.2 mm | Black | Quick Connect - 0.187" (4.7mm) | 25000 Steps | |
CW Industries | SPDT | 13 A | Panel Mount Snap-In | 25000 Steps | No Marking | Terminal Barriers | On-On | Concave (Curved) | -20 C | 105 ░C | 125 V | 12.9 mm | Rectangular | 19.2 mm | Blue | Quick Connect - 0.187" (4.7mm) | 25000 Steps |
CW Industries | SPDT | 13 A | Panel Mount Snap-In | 25000 Steps | No Marking | Terminal Barriers | On-On | Concave (Curved) | -20 C | 105 ░C | 125 V | 12.9 mm | Rectangular | 19.2 mm | Black | Quick Connect - 0.110" (2.8mm) | 25000 Steps |
CW Industries | SPDT | 16 A | Panel Mount Snap-In | 25000 Steps | Bump | Polarized | On-On | Concave (Curved) | -20 C | 105 ░C | 125 V | 12.9 mm | Rectangular | 19.2 mm | Brown | Quick Connect - 0.187" (4.7mm) | 25000 Steps |
CW Industries | SPDT | 16 A | Panel Mount Snap-In | 25000 Steps | No Marking | Polarized | On-On | Concave (Curved) | -20 C | 105 ░C | 125 V | 12.9 mm | Rectangular | 19.2 mm | Black | Quick Connect - 0.187" (4.7mm) | 25000 Steps |
CW Industries | SPDT | 16 A | Panel Mount Snap-In | 25000 Steps | Bump | Polarized | On-On | Concave (Curved) | -20 C | 105 ░C | 125 V | 12.9 mm | Rectangular | 19.2 mm | Bisque | Quick Connect - 0.187" (4.7mm) | 25000 Steps |
CW Industries | SPDT | 13 A | Panel Mount Snap-In | 25000 Steps | No Marking | Terminal Barriers | On-Mom | Concave (Curved) | -20 C | 105 ░C | 125 V | 12.9 mm | Rectangular | 19.2 mm | Black | Quick Connect - 0.187" (4.7mm) | 25000 Steps |
CW Industries | SPDT | 13 A | Panel Mount Snap-In | 25000 Steps | O - | Terminal Barriers | On-On | Concave (Curved) | -20 C | 105 ░C | 125 V | 12.9 mm | Rectangular | 19.2 mm | Red | Quick Connect - 0.187" (4.7mm) | 25000 Steps |
CW Industries | SPDT | 8 A | Panel Mount Snap-In | 25000 Steps | No Marking | Terminal Barriers | On-Mom | Concave (Curved) | -20 C | 105 ░C | 125 V | 12.9 mm | Rectangular | 19.2 mm | Black | Quick Connect - 0.187" (4.7mm) | 25000 Steps |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 0.84 | |
Description
General part information
GRS-4012 Series
Rocker Switch SPDT 13A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
