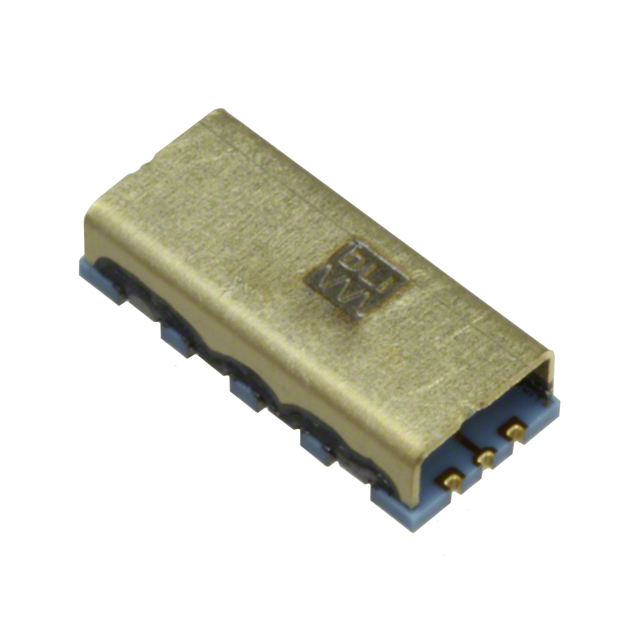

B060NC5S

Active

Knowles Dielectric Labs

RF FILTER BAND PASS 6GHZ 8SMD

Search across all available documentation for this part.

Active

Knowles Dielectric Labs

RF FILTER BAND PASS 6GHZ 8SMD

Technical Specifications

Parameters and characteristics for this part

RF FILTER BAND PASS 6GHZ 8SMD

Part	Frequency	Package / Case	Filter Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Bandwidth	Insertion Loss	Height (Max)	Height (Max) [Max]
Knowles Dielectric Labs B060NC5S	6 GHz	8-SMD, No Lead	Band Pass	12.7 mm	0.2 "	0.5 in	5.08 mm	Surface Mount	1 GHz	3 dB	2.24 mm	0.088 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6GHz Frequency Band Pass RF Filter (Radio Frequency) 1GHz Bandwidth 3dB 8-SMD, No Lead
