MMVPMB48K1NNT

Active

Switchcraft Inc.

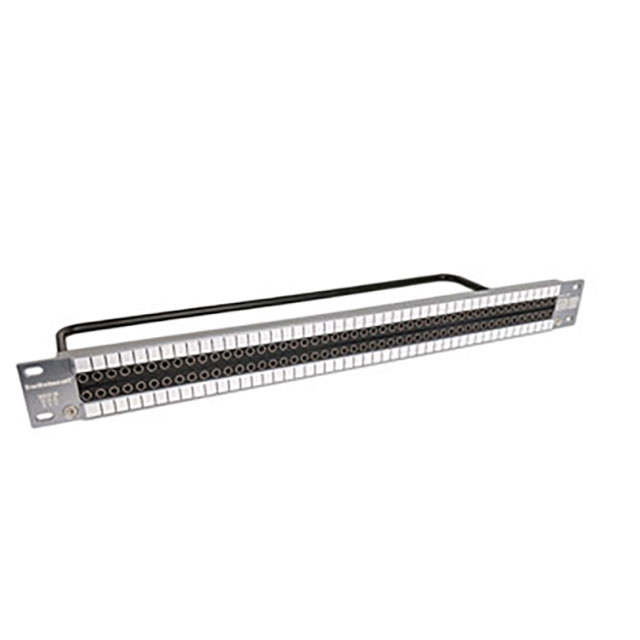

PATCH PANELS 1RU, 2X48, V-PBAY NORM MICRBNC NONTERM

Search across all available documentation for this part.

Active

Switchcraft Inc.

PATCH PANELS 1RU, 2X48, V-PBAY NORM MICRBNC NONTERM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4580.87

General part information

Patch Panels 1RU, 2x48, V-PBay Norm, DIN, Term

Technical documentation and resources

Specification	MMVPMB48K1NNT	MMVP Series

Connector Type	1/4" Phone Jack	HD Jack, 1/4" Phone Jack
Connector Type	-	75 Ohm
For Use With/Related Products	-	Video Patchbays
Number of Positions	96	48 - 192
Number of Rows	2	2
Termination Style	Solder	Solder
Tool Type	-	Insertion/Extraction Tool
Type	Telephone Jack Panel	Video Pass Through Panel, Telephone Jack Panel

Part	Number of Positions	Connector Type	Connector Type	Number of Rows	Type	Termination Style	For Use With/Related Products	Tool Type
Switchcraft Inc. MMVP48K1UHD	48	75 Ohm	HD Jack	2	Video Pass Through Panel
Switchcraft Inc. MMVP96K375T	192	75 Ohm	HD Jack		Video Pass Through Panel
Switchcraft Inc. MMVP48K275T	96	75 Ohm	HD Jack	2	Video Pass Through Panel
Switchcraft Inc. MMVPMB48K175T	96		1/4" Phone Jack	2	Telephone Jack Panel	Solder
Switchcraft Inc. MMVP96K3NT	192	75 Ohm	HD Jack		Video Pass Through Panel
Switchcraft Inc. MMVPMB48K1NNT	96		1/4" Phone Jack	2	Telephone Jack Panel	Solder
Switchcraft Inc. MMVPTL							Video Patchbays	Insertion/Extraction Tool
Switchcraft Inc. MMVPD48K175T	96		1/4" Phone Jack	2	Telephone Jack Panel	Solder
Switchcraft Inc. MMVP48K2NNT	96	75 Ohm	HD Jack	2	Video Pass Through Panel
Switchcraft Inc. MMVPD48K1NNT	96		1/4" Phone Jack	2	Telephone Jack Panel	Solder
