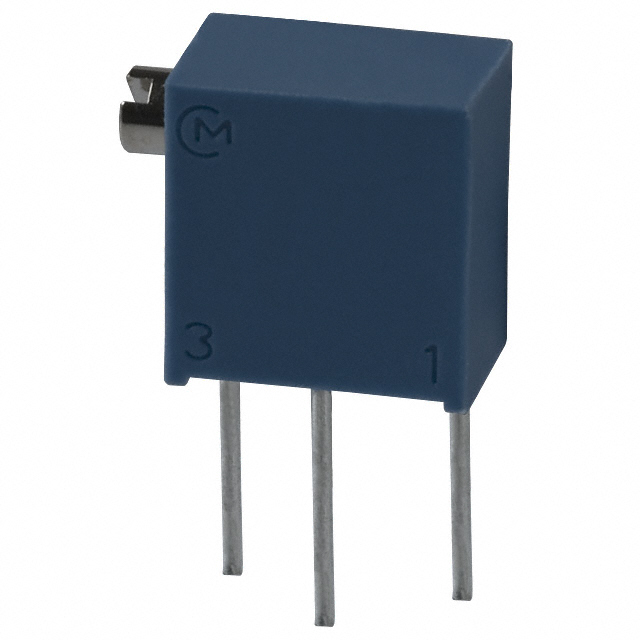

PV37X202C01B00

Active

Bourns Inc.

TRIMMER 2K OHM 0.25W PC PIN SIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PV37X202C01B00

Active

Bourns Inc.

TRIMMER 2K OHM 0.25W PC PIN SIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PV37X202C01B00

Adjustment Type	Side Adjustment
Mounting Type	Through Hole
Number of Turns	12
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	2 kOhms
Resistive Material	Cermet
Size / Dimension [x]	0.264 in
Size / Dimension [x]	6.7 mm
Size / Dimension [y]	4 mm
Size / Dimension [y]	0.157 in
Temperature Coefficient	150 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

PV37X Series

Part	Adjustment Type	Termination Style	Power (Watts)	Power (Watts)	Resistive Material	Temperature Coefficient	Number of Turns	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Resistance	Tolerance
Bourns Inc. PV37X501A01B00	Side Adjustment	PC Pins	0.25 W	250 mW	Cermet	150 ppm/°C	12	0.264 in	4 mm	6.7 mm	0.157 in	Through Hole	500 Ohms	10 %
Bourns Inc. PV37X501C01B00	Side Adjustment	PC Pins	0.25 W	250 mW	Cermet	150 ppm/°C	12	0.264 in	4 mm	6.7 mm	0.157 in	Through Hole	500 Ohms	10 %
Bourns Inc. PV37X205A01B00	Side Adjustment	PC Pins	0.25 W	250 mW	Cermet	150 ppm/°C	12	0.264 in	4 mm	6.7 mm	0.157 in	Through Hole	2 MOhms	10 %
Bourns Inc. PV37X500A01B00	Side Adjustment	PC Pins	0.25 W	250 mW	Cermet	150 ppm/°C	12	0.264 in	4 mm	6.7 mm	0.157 in	Through Hole	50 Ohms	10 %
Bourns Inc. PV37X202C01B00	Side Adjustment	PC Pins	0.25 W	250 mW	Cermet	150 ppm/°C	12	0.264 in	4 mm	6.7 mm	0.157 in	Through Hole	2 kOhms	10 %
Bourns Inc. PV37X500C01B00	Side Adjustment	PC Pins	0.25 W	250 mW	Cermet	150 ppm/°C	12	0.264 in	4 mm	6.7 mm	0.157 in	Through Hole	50 Ohms	10 %
Bourns Inc. PV37X105A01B00	Side Adjustment	PC Pins	0.25 W	250 mW	Cermet	150 ppm/°C	12	0.264 in	4 mm	6.7 mm	0.157 in	Through Hole	1 MOhms	10 %
Bourns Inc. PV37X105C01B00	Side Adjustment	PC Pins	0.25 W	250 mW	Cermet	150 ppm/°C	12	0.264 in	4 mm	6.7 mm	0.157 in	Through Hole	1 MOhms	10 %
Bourns Inc. PV37X253C01B00	Side Adjustment	PC Pins	0.25 W	250 mW	Cermet	150 ppm/°C	12	0.264 in	4 mm	6.7 mm	0.157 in	Through Hole	25 kOhms	10 %
Bourns Inc. PV37X104A01B00	Side Adjustment	PC Pins	0.25 W	250 mW	Cermet	150 ppm/°C	12	0.264 in	4 mm	6.7 mm	0.157 in	Through Hole	100 kOhms	10 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 1.16

Description

General part information

PV37X Series

2 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 12.0 Turn Side Adjustment
