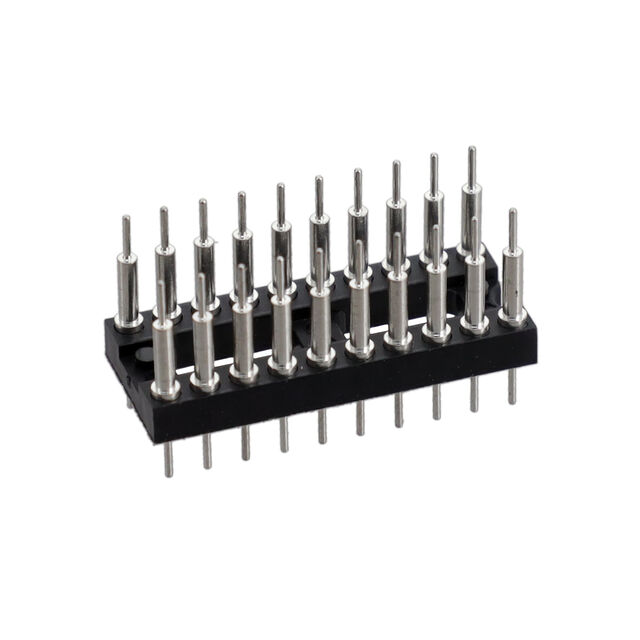

142-90-320-00-592000

Active

Mill-Max Manufacturing Corp.

CONN HDR DIP POST 20POS TIN-LEAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

142-90-320-00-592000

Active

Mill-Max Manufacturing Corp.

CONN HDR DIP POST 20POS TIN-LEAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	142-90-320-00-592000

Color	Black
Connector Type	DIP, DIL - Header
Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Type	Post, Extended
Mounting Type	Through Hole
Number of Positions	20
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	0.3 in
Row Spacing	7.62 mm
Termination	Solder

142-90 Series

Part	Termination	Contact Finish Thickness	Contact Finish Thickness	Color	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions	Contact Type	Row Spacing	Row Spacing	Mounting Type	Contact Finish	Number of Positions
Mill-Max Manufacturing Corp. 142-90-308-00-594000	Solder	200 Áin	5.08 Ám	Black	DIL - Header DIP	2.54 mm	0.1 in	2	8	Post Extended	0.3 in	7.62 mm	Through Hole	Tin-Lead
Mill-Max Manufacturing Corp. 142-90-324-00-591000	Solder	200 Áin	5.08 Ám	Black	DIL - Header DIP	2.54 mm	0.1 in	2	24	Post Extended	0.3 in	7.62 mm	Through Hole	Tin-Lead
Mill-Max Manufacturing Corp. 142-90-324-00-594000	Solder	200 Áin	5.08 Ám	Black	DIL - Header DIP	2.54 mm	0.1 in	2	24	Post Extended	0.3 in	7.62 mm	Through Hole	Tin-Lead
Mill-Max Manufacturing Corp. 142-90-640-00-594000	Solder	200 Áin	5.08 Ám	Black	DIL - Header DIP	2.54 mm	0.1 in	2	40	Post Extended	0.6 in	15.24 mm	Through Hole	Tin-Lead
Mill-Max Manufacturing Corp. 142-90-308-00-591000	Solder	200 Áin	5.08 Ám	Black	DIL - Header DIP	2.54 mm	0.1 in	2	8	Post Extended	0.3 in	7.62 mm	Through Hole	Tin-Lead
Mill-Max Manufacturing Corp. 142-90-316-00-591000	Solder	200 Áin	5.08 Ám	Black	DIL - Header DIP	2.54 mm	0.1 in	2		Post Extended	0.3 in	7.62 mm	Through Hole	Tin-Lead	16
Mill-Max Manufacturing Corp. 142-90-632-00-591000	Solder	200 Áin	5.08 Ám	Black	DIL - Header DIP	2.54 mm	0.1 in	2		Post Extended	0.6 in	15.24 mm	Through Hole	Tin-Lead
Mill-Max Manufacturing Corp. 142-90-320-00-592000	Solder	200 Áin	5.08 Ám	Black	DIL - Header DIP	2.54 mm	0.1 in	2	20	Post Extended	0.3 in	7.62 mm	Through Hole	Tin-Lead
Mill-Max Manufacturing Corp. 142-90-314-00-594000	Solder	200 Áin	5.08 Ám	Black	DIL - Header DIP	2.54 mm	0.1 in	2	14	Post Extended	0.3 in	7.62 mm	Through Hole	Tin-Lead
Mill-Max Manufacturing Corp. 142-90-316-00-594000	Solder	200 Áin	5.08 Ám	Black	DIL - Header DIP	2.54 mm	0.1 in	2		Post Extended	0.3 in	7.62 mm	Through Hole	Tin-Lead	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 19.17
		20	$ 16.62
		100	$ 13.70
		500	$ 12.51

Description

General part information

142-90 Series

20 Position DIP, DIL - Header Connector Post, Extended Tin-Lead
