861-004-213R004

Active

MH Connectors

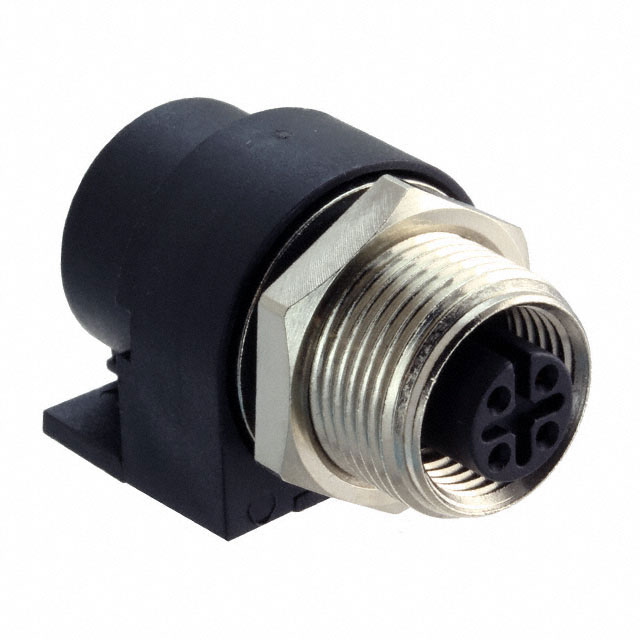

SENSOR CONNECTOR, SHIELDED, VULCON SERIES, M12, FEMALE, 4 POSITIONS, PCB SOCKET

Search across all available documentation for this part.

Active

MH Connectors

SENSOR CONNECTOR, SHIELDED, VULCON SERIES, M12, FEMALE, 4 POSITIONS, PCB SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	861-004-213R004

Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Brass
Current Rating (Amps)	4 A
Features	Board Guide
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-4
Shielding	Shielded
Termination	Solder
Voltage Rating	250 VDC

Part	Shielding	Primary Material	Shell Material	Contact Finish - Mating	Shell Size - Insert	Material Flammability Rating	Shell Finish	Ingress Protection	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Color	Contact Material	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Current Rating (Amps)	Insert Material	Orientation	Termination	Features	Contact Finish Thickness - Mating
MH Connectors 861-004-213R004	Shielded	Metal	Brass	Gold	M12-4	UL94 V-0	Nickel	IP67 - Dust Tight Waterproof	4	85 °C	-40 °C	Female Sockets Plug	Black Silver	Brass	250 VDC	10 çin	0.25 çm	Panel Mount Right Angle Through Hole	4 A	Polybutylene Terephthalate (PBT)	A	Solder	Board Guide
MH Connectors 861-004-113R001	Shielded	Metal	Brass	Gold	M12-4	UL94 V-0	Nickel	IP67 - Dust Tight Waterproof	4	85 °C	-40 °C	Male Pins Receptacle	Black Silver	Brass	250 VDC			Panel Mount Right Angle Through Hole	4 A	Polybutylene Terephthalate (PBT)	A	Solder	Board Guide	Flash
MH Connectors 861-004-213R001	Shielded	Metal	Brass	Gold	M12-4	UL94 V-0	Nickel	IP67 - Dust Tight Waterproof	4	85 °C	-40 °C	Female Sockets Plug	Black Silver	Brass	250 VDC			Panel Mount Right Angle Through Hole	4 A	Polybutylene Terephthalate (PBT)	A	Solder	Board Guide	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Solder
