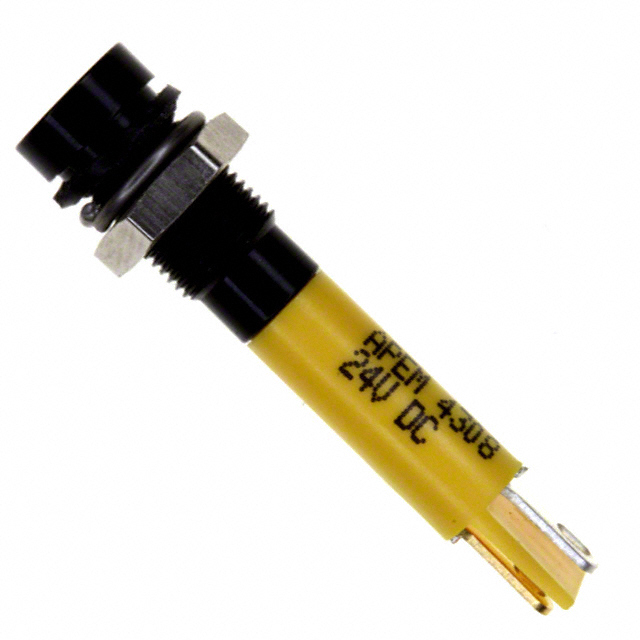

Q6R1BXXY24E
ActiveAPEM
INDICATOR 24V 6MM RECESSED YEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q6R1BXXY24E
ActiveAPEM
INDICATOR 24V 6MM RECESSED YEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q6R1BXXY24E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Yellow |
| Lens Color | Yellow |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 30 mcd |
| Panel Cutout Dimensions | 6.1 mm |
| Panel Cutout Dimensions | 0.24 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Solder Lug |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.97 | |
| 25 | $ 11.29 | |||
| 100 | $ 9.49 | |||
| 500 | $ 8.71 | |||
| 1000 | $ 8.23 | |||
Description
General part information
Q6R1BXXY Series
LED Panel Indicator Yellow Diffused 100° 24V 20mA Solder Lug
