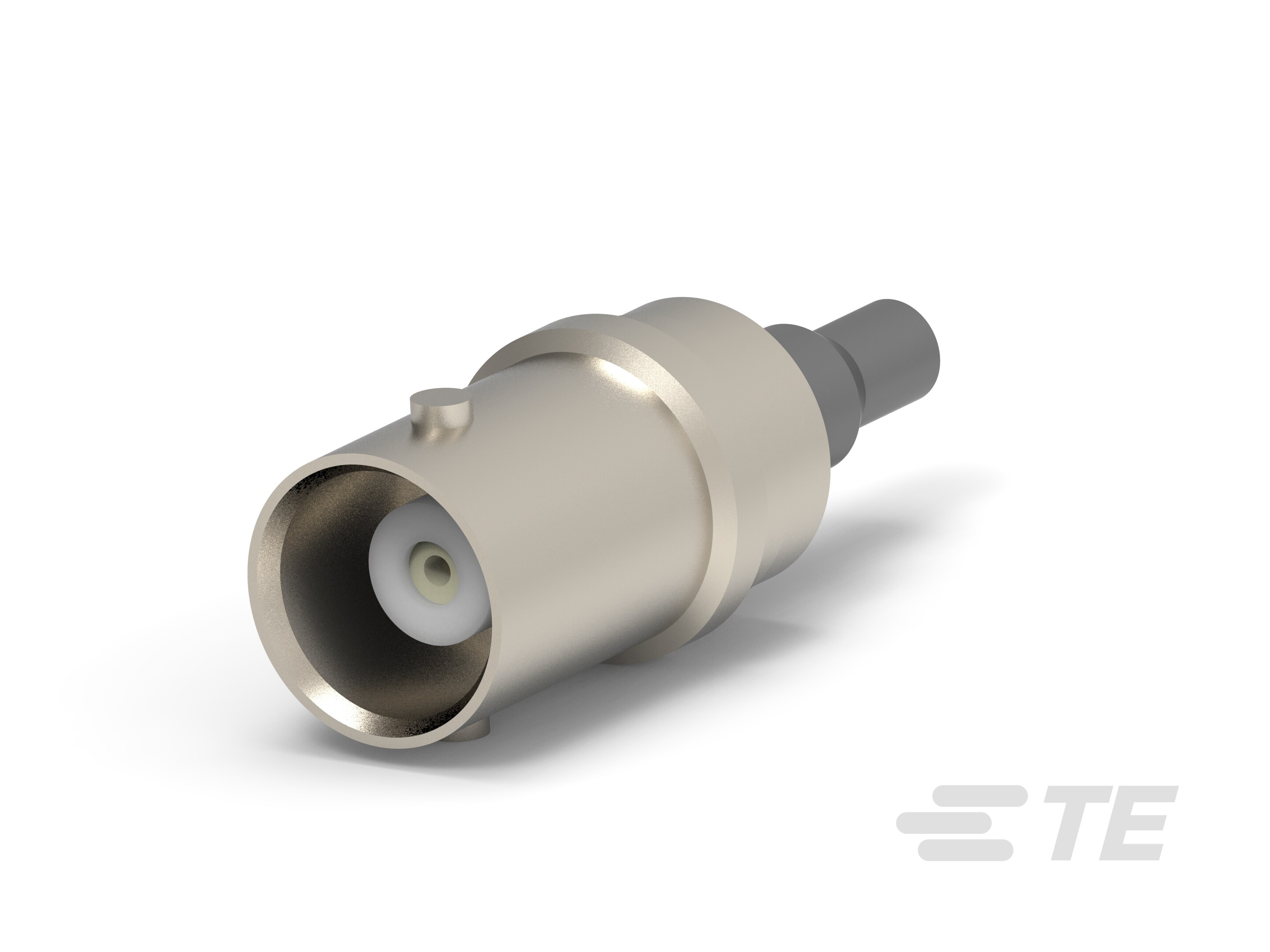

CONN BNC JACK STR 50 OHM CRIMP
5225396-7
ActiveTE Connectivity AMP Connectors
CONN BNC JACK STR 50 OHM CRIMP
Description
General part information
5225396 Series
BNC Connector, Jack, 50 ohm, Bayonet, 4 GHz, Cable-to-Board, 1 Position, Wire & Cable, Panel Mount, -55 – 85 °C [-67 – 185 °F], Crimp, Straight, Brass
Technical Specifications
Parameters and characteristics for this part
| Specification | 5225396-7 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 188, RG-174 |
| Cable Group Current Rating | 188 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Includes | Connector, Bushing, Contact, Ferrule |
| Includes Total Count | 4 pcs |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
