2912507

Active

Phoenix Contact

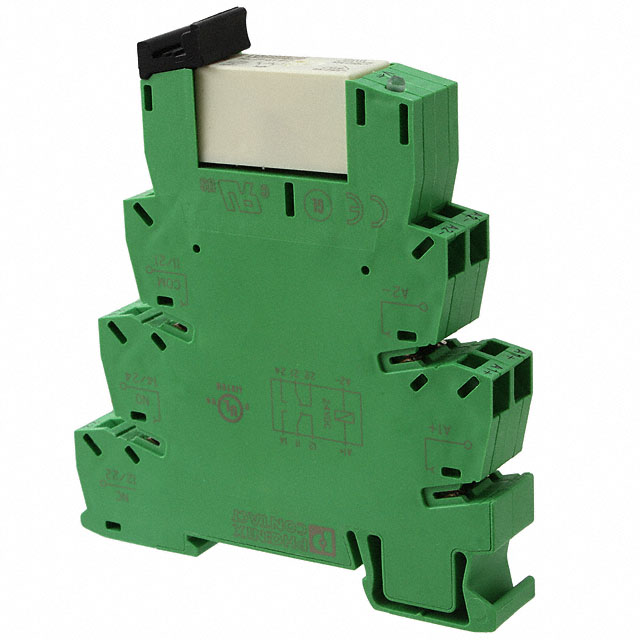

RELAY GEN PURPOSE DPDT 6A 24V

Deep-Dive with AI

Search across all available documentation for this part.

2912507

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 6A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2912507	29125 Series

Coil Current	18 mA	4.5 - 33 mA
Coil Resistance	1.33 kOhms	1.33 - 364 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 230 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	6 A	6 A
Features	Lighted Indicator, Socket Included	Lighted Indicator, Socket Included
Mounting Type	DIN Rail	DIN Rail
Operate Time	8 ms	7 - 8 ms
Operating Temperature [Max]	60 °C	55 - 60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	10 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Spring Terminal	Spring Terminal

29125 Series

RELAY GEN PURPOSE DPDT 6A 24V

Part	Contact Material	Contact Form	Operate Time	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Switching Voltage	Mounting Type	Features	Termination Style	Coil Current	Coil Type	Release Time	Coil Resistance	Coil Voltage
Phoenix Contact 2912578	Gold (Au), Silver Nickel (AgNi)	DPDT (2 Form C)	8 ms	General Purpose	-40 °C	60 °C	6 A	250 VAC, 250 VDC	DIN Rail	Lighted Indicator, Socket Included	Spring Terminal	18 mA	Non Latching	10 ms	1.33 kOhms	24 VDC
Phoenix Contact 2912565	Gold (Au), Silver Nickel (AgNi)	DPDT (2 Form C)	8 ms	General Purpose	-40 °C	60 °C	6 A	250 VAC, 250 VDC	DIN Rail	Lighted Indicator, Socket Included	Spring Terminal	33 mA	Non Latching	10 ms	364 Ohms	12 VDC
Phoenix Contact 2912581	Gold (Au), Silver Nickel (AgNi)	DPDT (2 Form C)	8 ms	General Purpose	-40 °C	60 °C	6 A	250 VAC, 250 VDC	DIN Rail	Lighted Indicator	Spring Terminal	17.5 mA	Non Latching	10 ms	1.37 kOhms	24 VAC
Phoenix Contact 2912549	Silver Nickel (AgNi)	DPDT (2 Form C)	7 ms	General Purpose	-40 °C	60 °C	6 A	250 VAC, 250 VDC	DIN Rail	Lighted Indicator, Socket Included	Spring Terminal	4.5 mA	Non Latching	10 ms		120 VAC, 120 VDC
Phoenix Contact 2912510	Silver Nickel (AgNi)	DPDT (2 Form C)	8 ms	General Purpose	-40 °C	60 °C	6 A	250 VAC, 250 VDC	DIN Rail	Lighted Indicator, Socket Included	Spring Terminal	17.5 mA	Non Latching	10 ms	2.182 kOhms	24 VAC
Phoenix Contact 2912523	Silver Nickel (AgNi)	DPDT (2 Form C)	8 ms	General Purpose	-40 °C	60 °C	6 A	250 VAC, 250 VDC	DIN Rail	Lighted Indicator, Socket Included	Spring Terminal	20 mA	Non Latching	10 ms	2.4 kOhms	48 VDC
Phoenix Contact 2912507	Silver Nickel (AgNi)	DPDT (2 Form C)	8 ms	General Purpose	-40 °C	60 °C	6 A	250 VAC, 250 VDC	DIN Rail	Lighted Indicator, Socket Included	Spring Terminal	18 mA	Non Latching	10 ms	1.33 kOhms	24 VDC
Phoenix Contact 2912552	Silver Nickel (AgNi)	DPDT (2 Form C)	7 ms	General Purpose	-40 °C	55 °C	6 A	250 VAC, 250 VDC	DIN Rail	Lighted Indicator	Spring Terminal	4.5 mA	Non Latching	10 ms	51.11 kOhms	230 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

29125 Series

General Purpose Relay DPDT (2 Form C) 24VDC Coil DIN Rail
