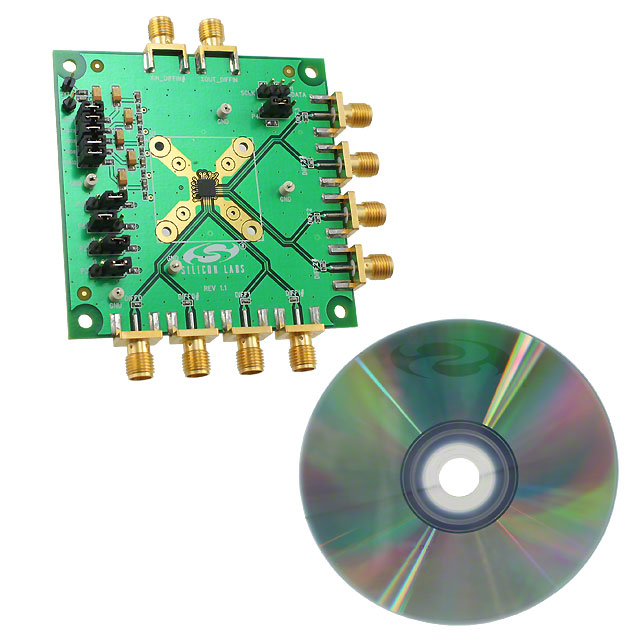

Specification	SI52144-EVB

Contents	Board
Embedded	No
Function	Clock Generator
Primary Attributes	Gen3 Compliant, PCI Express (PCIe) Gen1, Gen2 and Gen3 Compliant, PCI Express (PCIe) Gen1, Gen2
Secondary Attributes	4 Ports
Supplied Contents	Board(s)
Type	Timing
Utilized IC / Part	SI52144

SI52144 Series

Part	Supplied Contents	Primary Attributes	Secondary Attributes	Utilized IC / Part	Contents	Embedded	Function	Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Input Ratio	Output Ratio	Package Width	Package Name	Package Length	Operating Temperature (Min)	Operating Temperature (Max)	Input	Package / Case	Differential Output	Differential Input	Frequency - Max	Number of Circuits	Main Purpose	PLL	Output	Mounting Type
Skyworks Solutions Inc. SI52144-EVB	Board(s)	Gen2 Gen3 Compliant PCI Express (PCIe) Gen1 PCI Express (PCIe) Gen1 Gen2 and Gen3 Compliant	4 Ports	SI52144	Board	No	Clock Generator	Timing
Skyworks Solutions Inc. SI52144-A01AGMR									3.135 V	3.465 V	1	4	4 mm	24-QFN	4 mm	-40 °C	85 °C	Clock Crystal	24-WFQFN Exposed Pad	Yes	No	100 MHz	1	PCI Express (PCIe)	Yes	HCSL	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
