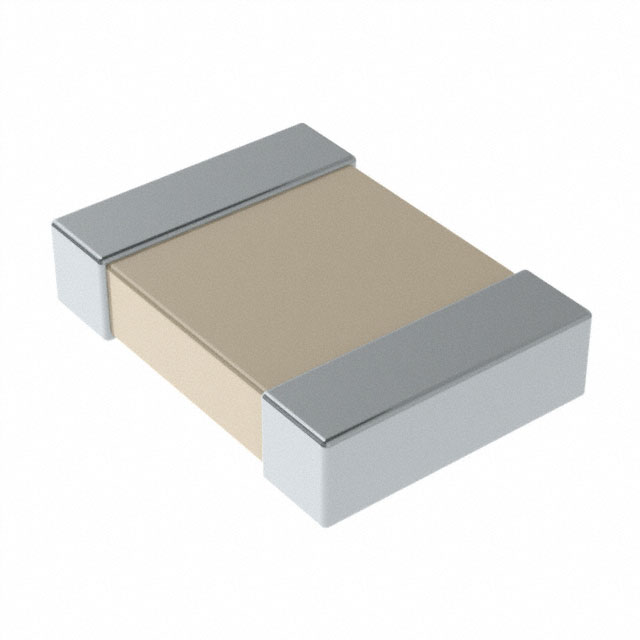

C1812V334KCRACAUTO

Active

KEMET

COMSMDHIVOLTAGE.330UF 500V

Search across all available documentation for this part.

Active

KEMET

COMSMDHIVOLTAGE.330UF 500V

Technical Specifications

Parameters and characteristics for this part

Specification	C1812V334KCRACAUTO

Applications	Automotive
Capacitance	0.33 µF
Features	High Voltage, Low ESL, ArcShield™
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1812 (4532 Metric)
Ratings	AEC-Q200
Size / Dimension [x]	0.177 in
Size / Dimension [x]	4.5 mm
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Temperature Coefficient	X7R
Thickness (Max) [Max]	2.3 mm
Thickness (Max) [Max]	0.091 in
Tolerance	10 %
Voltage - Rated	500 V

Part	Thickness (Max) [Max]	Thickness (Max) [Max]	Applications	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Ratings	Capacitance	Features	Temperature Coefficient	Tolerance	Thickness (Max)	Voltage - Rated	Thickness (Max) [Max] [custom]	Thickness (Max) [Max] [custom]	Thickness (Max)
KEMET C1812V334KCRACAUTO	2.3 mm	0.091 in	Automotive	1812 (4532 Metric)	MLCC Surface Mount	3.2 mm	0.177 in	4.5 mm	0.126 "	-55 °C	125 °C	500 V	AEC-Q200	0.33 µF	ArcShield™ High Voltage Low ESL	X7R	10 %
KEMET C1812V154KBRAC7800		0.075 in	General Purpose	1812 (4532 Metric)	MLCC Surface Mount	3.2 mm	0.177 in	4.5 mm	0.126 "	-55 °C	125 °C	630 V		0.15 ÁF	ArcShield™ High Voltage	X7R	10 %	1.9 mm
KEMET C1812V333KDRAC7800			General Purpose	1812 (4532 Metric)	MLCC Surface Mount	3.2 mm	0.177 in	4.5 mm	0.126 "	-55 °C	125 °C	1000 V		0.033 çF	ArcShield™ High Voltage	X7R	10 %		1 kV	0.043 "	1.1 mm
KEMET C1812V473MDRAC7800			General Purpose	1812 (4532 Metric)	MLCC Surface Mount	3.2 mm	0.177 in	4.5 mm	0.126 "	-55 °C	125 °C	1000 V			ArcShield™ High Voltage	X7R	20 %	1.2 mm	1 kV			0.047 in
KEMET C1812V333KBRAC7800			General Purpose	1812 (4532 Metric)	MLCC Surface Mount	3.2 mm	0.177 in	4.5 mm	0.126 "	-55 °C	125 °C	630 V		0.033 çF	ArcShield™ High Voltage	X7R	10 %			0.043 "	1.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.33 µF ±10% 500V Ceramic Capacitor X7R 1812 (4532 Metric)
