5-794633-0

Active

TE Connectivity Raychem Cable Protection

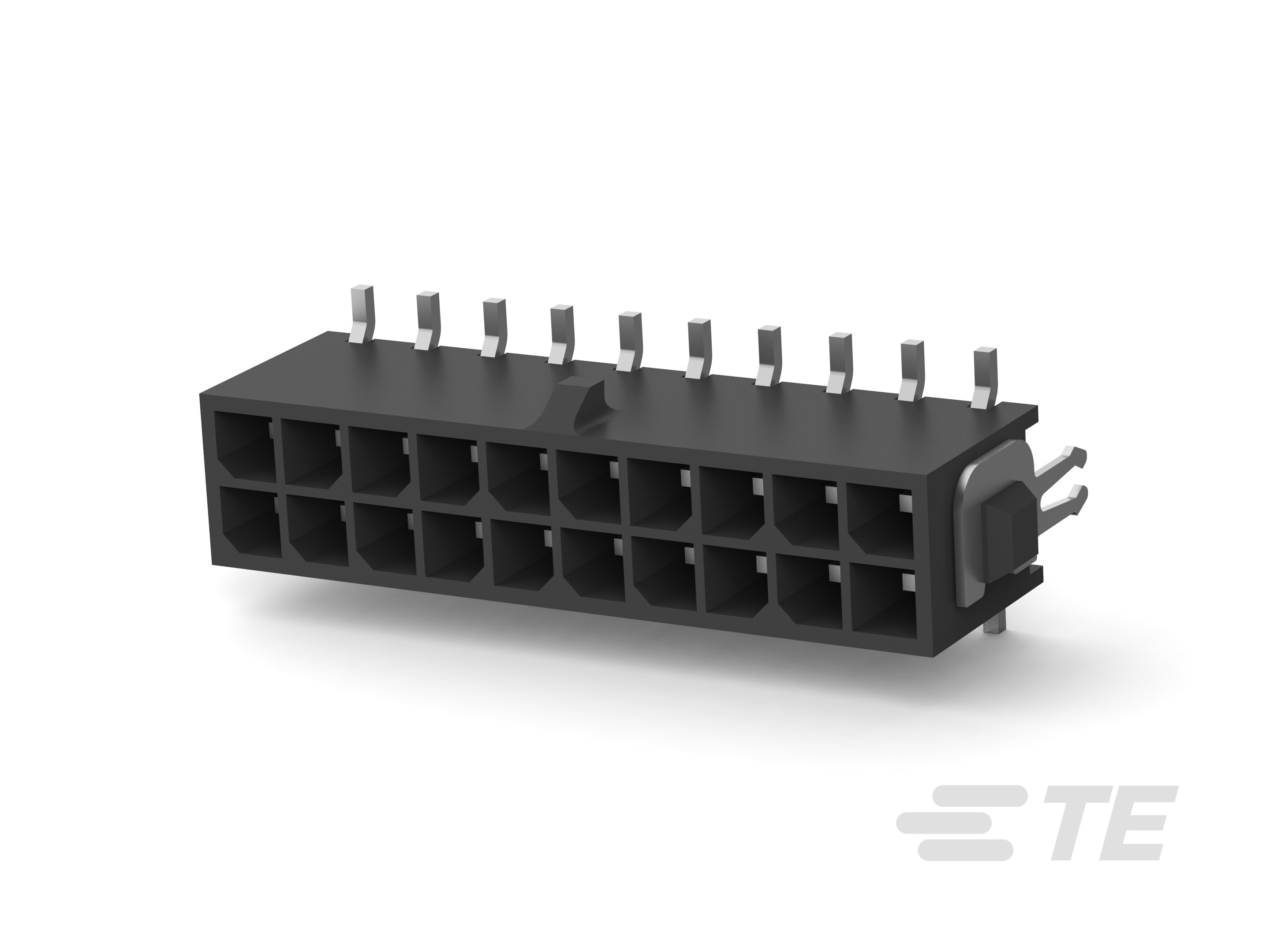

CONN HEADER SMD 20POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

Connectors, Interconnects

5-794633-0

Active

TE Connectivity Raychem Cable Protection

CONN HEADER SMD 20POS 3MM

Deep-Dive with AI

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5-794633-0

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Pick and Place, Board Lock
Insulation Color	Black
Insulation Height	9.25 mm
Insulation Height	0.364 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

794633 Series

Part	Fastening Type	Contact Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Number of Rows	Insulation Color	Contact Material	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Mounting Type	Termination	Current Rating (Amps)	Shrouding	Contact Shape	Connector Type	Insulation Material	Applications	Contact Finish - Post	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating
TE Connectivity Raychem Cable Protection 5-794633-0	Locking Ramp	Male Pin	All	0.118 in	3 mm	2	Black	Brass	20	UL94 V-0	2.54 çm	100 çin	2.54 µm	100 µin	Board to Cable/Wire	Board Lock Pick and Place	-40 °C	105 ░C	9.25 mm	0.364 in	Surface Mount	Solder	Varies by Wire Gauge	Shrouded - 4 Wall	Square	Header	Nylon Polyamide (PA)	General Purpose	Tin	250 VDC	3 mm	0.118 in
TE Connectivity Raychem Cable Protection 794633-8	Locking Ramp	Male Pin	All	0.118 in	3 mm	2	Black	Brass	8	UL94 V-0	2.54 çm	100 çin	2.54 µm	100 µin	Board to Cable/Wire	Board Lock Pick and Place	-40 °C	105 ░C	9.25 mm	0.364 in	Surface Mount	Solder	Varies by Wire Gauge	Shrouded - 4 Wall	Square	Header	Nylon Polyamide (PA)	General Purpose	Tin-Lead	250 VDC	3 mm	0.118 in	Tin-Lead
TE Connectivity Raychem Cable Protection 4-794633-2	Locking Ramp	Male Pin	All	0.118 in	3 mm	2	Black	Brass	12	UL94 V-0	2.54 çm	100 çin	2.54 µm	100 µin	Board to Cable/Wire	Board Lock Pick and Place	-40 °C	105 ░C	9.25 mm	0.364 in	Surface Mount	Solder	Varies by Wire Gauge	Shrouded - 4 Wall	Square	Header	Nylon Polyamide (PA)	General Purpose	Tin	250 VDC	3 mm	0.118 in
TE Connectivity Raychem Cable Protection 794633-6	Locking Ramp	Male Pin	All	0.118 in	3 mm	2	Black	Brass	6	UL94 V-0	2.54 çm	100 çin	2.54 µm	100 µin	Board to Cable/Wire	Board Lock Pick and Place	-40 °C	105 ░C	9.25 mm	0.364 in	Surface Mount	Solder	Varies by Wire Gauge	Shrouded - 4 Wall	Square	Header	Nylon Polyamide (PA)	General Purpose	Tin-Lead	250 VDC	3 mm	0.118 in	Tin-Lead
TE Connectivity Raychem Cable Protection 794633-4	Locking Ramp	Male Pin	All	0.118 in	3 mm	2	Black	Brass	4	UL94 V-0	2.54 çm	100 çin	2.54 µm	100 µin	Board to Cable/Wire	Board Lock Pick and Place	-40 °C	105 ░C	9.25 mm	0.364 in	Surface Mount	Solder	Varies by Wire Gauge	Shrouded - 4 Wall	Square	Header	Nylon Polyamide (PA)	General Purpose	Tin-Lead	250 VDC	3 mm	0.118 in	Tin-Lead
TE Connectivity Raychem Cable Protection 1-794633-0	Locking Ramp	Male Pin	All	0.118 in	3 mm	2	Black	Brass	10	UL94 V-0	2.54 çm	100 çin	2.54 µm	100 µin	Board to Cable/Wire	Board Lock Pick and Place	-40 °C	105 ░C	9.25 mm	0.364 in	Surface Mount	Solder	Varies by Wire Gauge	Shrouded - 4 Wall	Square	Header	Nylon Polyamide (PA)	General Purpose	Tin-Lead	250 VDC	3 mm	0.118 in	Tin-Lead
TE Connectivity Raychem Cable Protection 4-794633-0	Locking Ramp	Male Pin	All	0.118 in	3 mm	2	Black	Brass	10	UL94 V-0	2.54 çm	100 çin	2.54 µm	100 µin	Board to Cable/Wire	Board Lock Pick and Place	-40 °C	105 ░C	9.25 mm	0.364 in	Surface Mount	Solder	Varies by Wire Gauge	Shrouded - 4 Wall	Square	Header	Nylon Polyamide (PA)	General Purpose	Tin	250 VDC	3 mm	0.118 in
TE Connectivity Raychem Cable Protection 5-794633-4	Locking Ramp	Male Pin	All	0.118 in	3 mm	2	Black	Brass	24	UL94 V-0	2.54 çm	100 çin	2.54 µm	100 µin	Board to Cable/Wire	Board Lock Pick and Place	-40 °C	105 ░C	9.25 mm	0.364 in	Surface Mount	Solder	Varies by Wire Gauge	Shrouded - 4 Wall	Square	Header	Nylon Polyamide (PA)	General Purpose	Tin	250 VDC	3 mm	0.118 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	350	$ 3.89

Description

General part information

794633 Series

Connector Header Surface Mount 20 position 0.118" (3.00mm)
