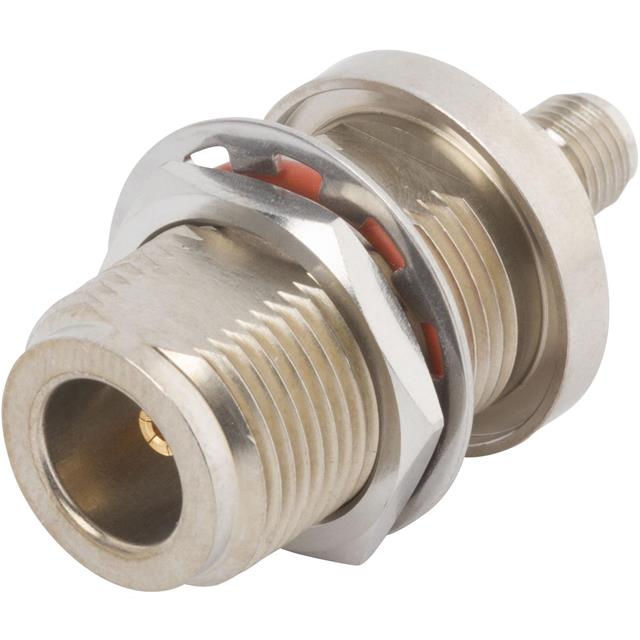

SF1104-6007

Active

Amphenol SV Microwave

CONN ADAPT PN JACK TO SMA JACK

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN ADAPT PN JACK TO SMA JACK

Technical Specifications

Parameters and characteristics for this part

Specification	SF1104-6007

Adapter Series	SMA to PN
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, PN Jack
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Style	Straight

Part	Conversion Type	Impedance	Convert To (Adapter End)	Adapter Type	Dielectric Material	Center Contact Plating	Center Gender	Mounting Feature	Mating Cycles	Includes	Center Contact Material	Frequency - Max [Max]	Convert From (Adapter End)	Adapter Series	Body Material	Style
Amphenol SV Microwave SF1104-6007	Between Series	50 Ohms	Female Socket SMA Jack	Jack to Jack	Polytetrafluoroethylene (PTFE)	Gold	Female to Female	Bulkhead	500	1 Connector 1 Lockwasher 1 Nut	Beryllium Copper	18 GHz	Female Socket PN Jack	SMA to PN	Stainless Steel	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector PN Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
