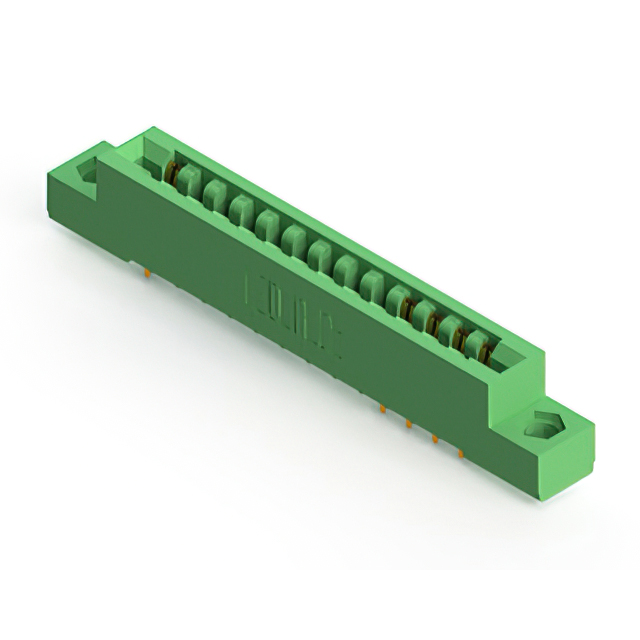

307-026-524-204
ActiveEDAC Inc.
3.96MM STRAIGHT 26P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
307-026-524-204
ActiveEDAC Inc.
3.96MM STRAIGHT 26P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-026-524-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions/Bay/Row [custom] | 13 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
307-026 Series
...
| Part | Termination | Number of Positions | Termination Rows | Number of Rows | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Read Out | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Material - Insulation | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Card Type | Features | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder Eyelet(s) | 26 | 2 | 2 | Female | -40 °C | 105 ░C | Copper Alloy | Dual | Gold | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Polyester Thermoplastic | 13 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Card Extender | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green |
EDAC Inc. | Wire Wrap | 26 | 2 | 2 | Female | -40 °C | 105 ░C | Copper Alloy | Dual | Tin | Through Hole | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Polyester Thermoplastic | 13 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | |||
EDAC Inc. | Solder | 26 | 1 | 1 | Female | -40 °C | 105 ░C | Copper Alloy | Single | Tin | Through Hole | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Polyester Thermoplastic | 26 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | |||
EDAC Inc. | Solder | 26 | 2 | 2 | Female | -40 °C | 105 ░C | Copper Alloy | Dual | Tin | Board Edge Straddle Mount | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Polyester Thermoplastic | 13 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | |||
EDAC Inc. | Wire Wrap | 52 | 1 | 2 | Female | -40 °C | 105 ░C | Copper Alloy | Dual | Gold | 10 Áin | 0.25 Ám | Through Hole | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Polyester Thermoplastic | 26 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | |
EDAC Inc. | Solder | 26 | 1 | 1 | Female | -40 °C | 105 ░C | Copper Alloy | Single | Gold | 10 Áin | 0.25 Ám | Through Hole Right Angle | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Polyester Thermoplastic | 26 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | |
EDAC Inc. | Wire Wrap | 26 | 1 | 1 | Female | -40 °C | 105 ░C | Copper Alloy | Single | Tin | Through Hole | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Polyester Thermoplastic | 26 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | |||
EDAC Inc. | Wire Wrap | 52 | 1 | 2 | Female | -40 °C | 105 ░C | Copper Alloy | Dual | Tin | Through Hole | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Polyester Thermoplastic | 26 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | |||
EDAC Inc. | Solder | 26 | 2 | 2 | Female | -40 °C | 105 ░C | Copper Alloy | Dual | Gold | 10 Áin | 0.25 Ám | Through Hole | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Polyester Thermoplastic | 13 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | |
EDAC Inc. | Solder | 26 | 2 | 2 | Female | -40 °C | 105 ░C | Copper Alloy | Dual | Tin | Board Edge Straddle Mount | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | 13 | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
307-026 Series
26 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
