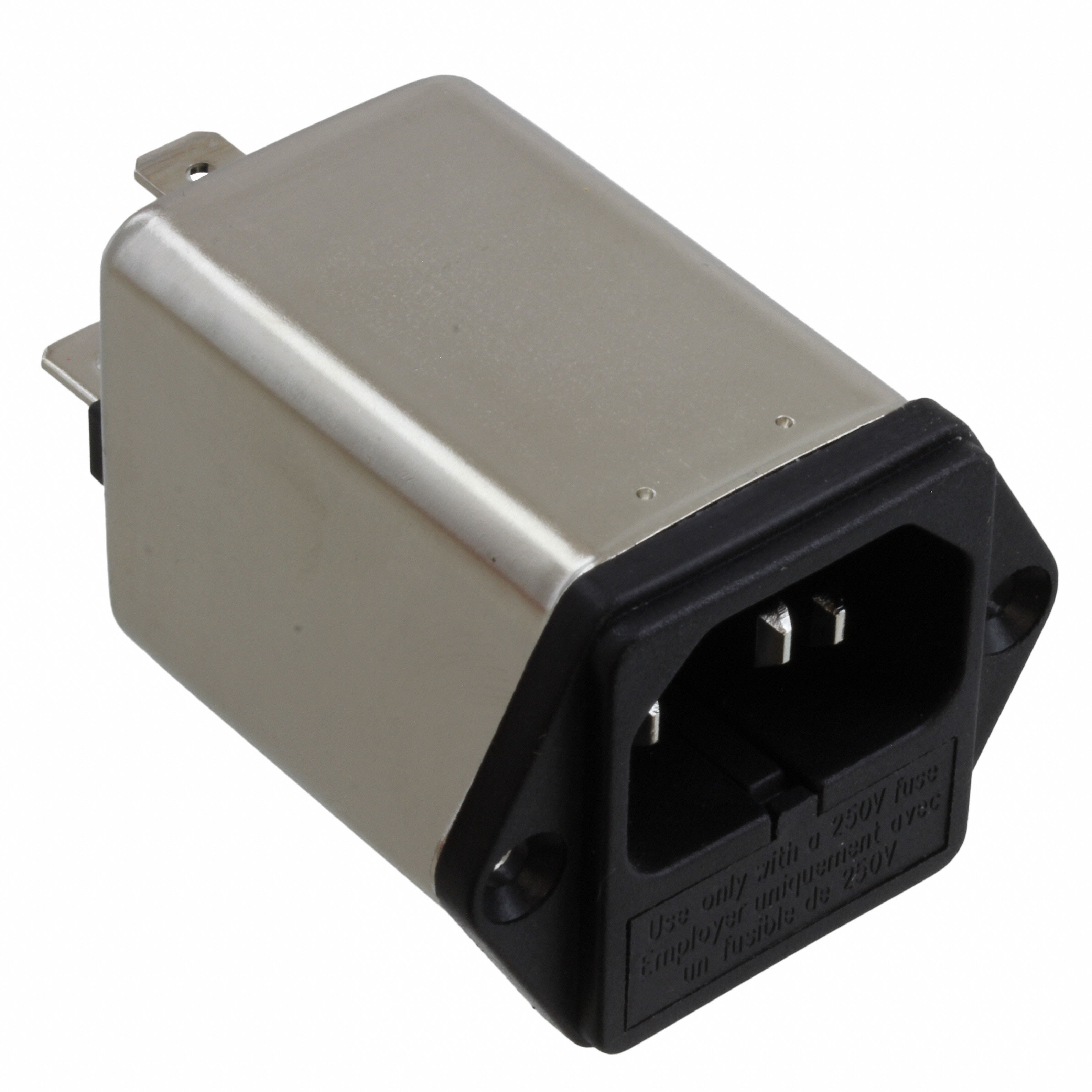

04BEEG3FM-R
ActiveDelta Electronics
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
04BEEG3FM-R
ActiveDelta Electronics
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 04BEEG3FM-R | 04BEEG Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | UL, VDE, CSA | UL, VDE, CSA |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 4 A | 4 A |
| Current Rating - Filter | 4 A | 4 A |
| Features | Bleed Resistor | Bleed Resistor |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical | Filtered (EMI, RFI) - Commercial, Medical, Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused | Fuse Holder, Twin Fused, Fuse Holder |
| Mounting Type | Panel Mount, Flange | Panel Mount, Flange |
| Panel Cutout Dimensions | Rectangular | Rectangular |
| Panel Cutout Dimensions [x] | 29 mm | 29 mm |
| Panel Cutout Dimensions [y] | 33.1 mm | 33 - 33.1 mm |
| Termination | Quick Connect | Quick Connect |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC | 115 VAC |
04BEEG Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Current Rating - Appliance Inlet | Connector Style | Current Rating - Filter | Approval Agency | Voltage Rating - Appliance Inlet [Min] | Voltage Rating - Appliance Inlet [Max] | Connector Type | Features | Accomodates a Fuse | Fuse Holder, Drawer | Panel Cutout Dimensions | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Filter Type | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics 04BEEG3FM-R | 4 A | IEC 320-C14 | 4 A | CSA, UL, VDE | 115 VAC | 250 VAC | Receptacle, Male Blades - Module | Bleed Resistor | Fuse Holder, Twin Fused | Rectangular | 29 mm | 33.1 mm | Filtered (EMI, RFI) - Commercial, Medical | Quick Connect | Flange, Panel Mount | |
Delta Electronics 04BEEG3S | 4 A | IEC 320-C14 | 4 A | CSA, UL, VDE | 115 VAC | 250 VAC | Receptacle, Male Blades - Module | Fuse Holder | 29 mm | 33 mm | Filtered (EMI, RFI) - Commercial | Quick Connect | Flange, Panel Mount | |||
Delta Electronics 04BEEG3H | 4 A | IEC 320-C14 | 4 A | CSA, UL, VDE | 115 VAC | 250 VAC | Receptacle, Male Blades - Module | Fuse Holder | 29 mm | 33 mm | Filtered (EMI, RFI) - Commercial | Quick Connect | Flange, Panel Mount | |||
Delta Electronics 04BEEG3F | 4 A | IEC 320-C14 | 4 A | CSA, UL, VDE | 115 VAC | 250 VAC | Receptacle, Male Blades - Module | Fuse Holder, Twin Fused | Rectangular | 29 mm | 33.1 mm | Filtered (EMI, RFI) - Commercial | Quick Connect | Flange, Panel Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
04BEEG Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
