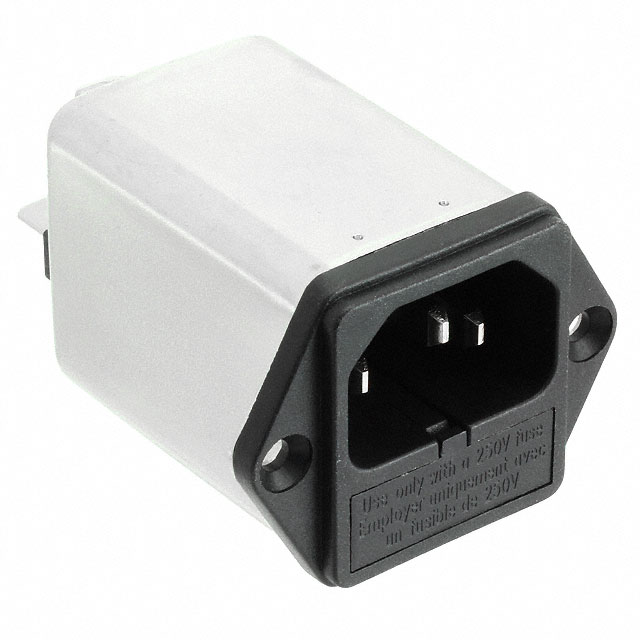

04BEEG3F

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	04BEEG3F	04BEEG Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	4 A	4 A
Current Rating - Filter	4 A	4 A
Features	-	Bleed Resistor
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial, Medical, Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Twin Fused, Fuse Holder
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions	Rectangular	Rectangular
Panel Cutout Dimensions [x]	29 mm	29 mm
Panel Cutout Dimensions [y]	33.1 mm	33 - 33.1 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Appliance Inlet	Connector Style	Current Rating - Filter	Approval Agency	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Connector Type	Features	Fuse Holder, Drawer	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Filter Type	Termination	Mounting Type
Delta Electronics 04BEEG3FM-R	4 A	IEC 320-C14	4 A	CSA, UL, VDE	115 VAC	250 VAC	Receptacle, Male Blades - Module	Bleed Resistor	Fuse Holder, Twin Fused	Rectangular	29 mm	33.1 mm	Filtered (EMI, RFI) - Commercial, Medical	Quick Connect	Flange, Panel Mount
Delta Electronics 04BEEG3S	4 A	IEC 320-C14	4 A	CSA, UL, VDE	115 VAC	250 VAC	Receptacle, Male Blades - Module		Fuse Holder		29 mm	33 mm	Filtered (EMI, RFI) - Commercial	Quick Connect	Flange, Panel Mount
Delta Electronics 04BEEG3H	4 A	IEC 320-C14	4 A	CSA, UL, VDE	115 VAC	250 VAC	Receptacle, Male Blades - Module		Fuse Holder		29 mm	33 mm	Filtered (EMI, RFI) - Commercial	Quick Connect	Flange, Panel Mount
Delta Electronics 04BEEG3F	4 A	IEC 320-C14	4 A	CSA, UL, VDE	115 VAC	250 VAC	Receptacle, Male Blades - Module		Fuse Holder, Twin Fused	Rectangular	29 mm	33.1 mm	Filtered (EMI, RFI) - Commercial	Quick Connect	Flange, Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	189	$ 11.18

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
