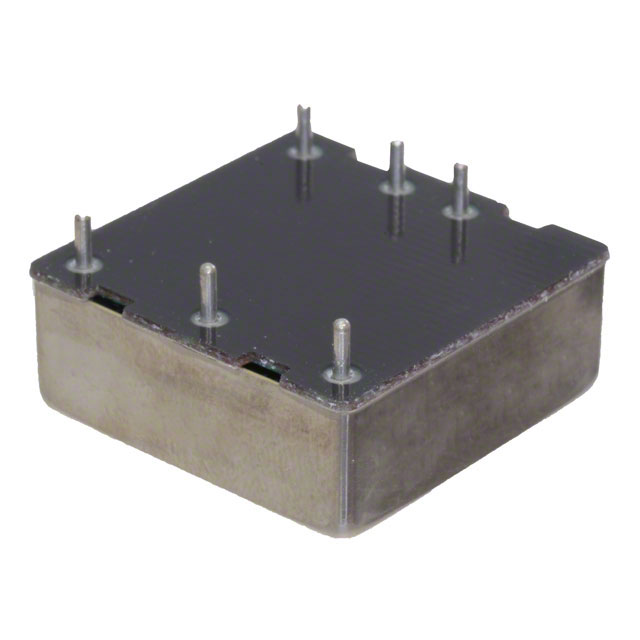

MGFS40243R3
ActiveCosel USA, Inc.
DC DC CONVERTER 3.3V 33W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGFS40243R3
ActiveCosel USA, Inc.
DC DC CONVERTER 3.3V 33W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGFS40243R3 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, DEMKO, CE |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 10 A |
| Efficiency | 89 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 33 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 9.9 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 63.01 | |
| 5 | $ 62.52 | |||
| 10 | $ 62.02 | |||
| 25 | $ 60.05 | |||
| 50 | $ 57.10 | |||
| 100 | $ 53.16 | |||
Description
General part information
MGFS40243 Series
Isolated Module DC DC Converter 1 Output 3.3V 10A 9V - 36V Input
