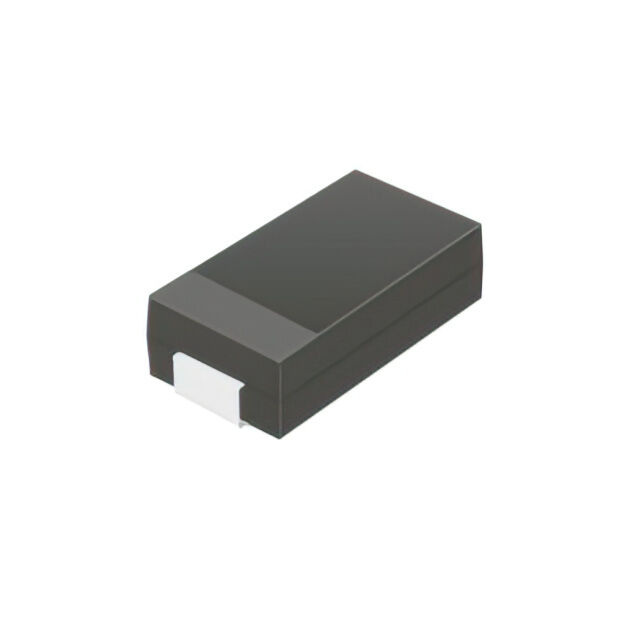

ASMCJ200CA-HF

Active

Comchip Technology

TVS DIODE 200VWM 324VC DO214AB

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 200VWM 324VC DO214AB

Technical Specifications

Parameters and characteristics for this part

Specification	ASMCJ200CA-HF

Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	4.6 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SMC, DO-214AB
Power - Peak Pulse	1.5 kW
Power - Peak Pulse	1500 W
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	DO-214AB (SMC)
Type	Zener
Voltage - Breakdown (Min) [Min]	224 V
Voltage - Clamping (Max) @ Ipp [Max]	324 V
Voltage - Reverse Standoff (Typ)	200 V

TVS DIODE 200VWM 324VC DO214AB

Part	Package / Case	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Power Line Protection	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Mounting Type	Power - Peak Pulse	Power - Peak Pulse	Type	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Supplier Device Package	Grade
Comchip Technology ASMCJ200CA-HF	DO-214AB, SMC	224 V	4.6 A	200 V		-55 °C	150 °C	AEC-Q101	Surface Mount	1.5 kW	1500 W	Zener	1	324 V	DO-214AB (SMC)	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

324V Clamp 4.6A Ipp Tvs Diode Surface Mount DO-214AB (SMC)

Technical documentation and resources

No documents available
