BK010-05-C-0850-0864-0508-G

Active

GCT

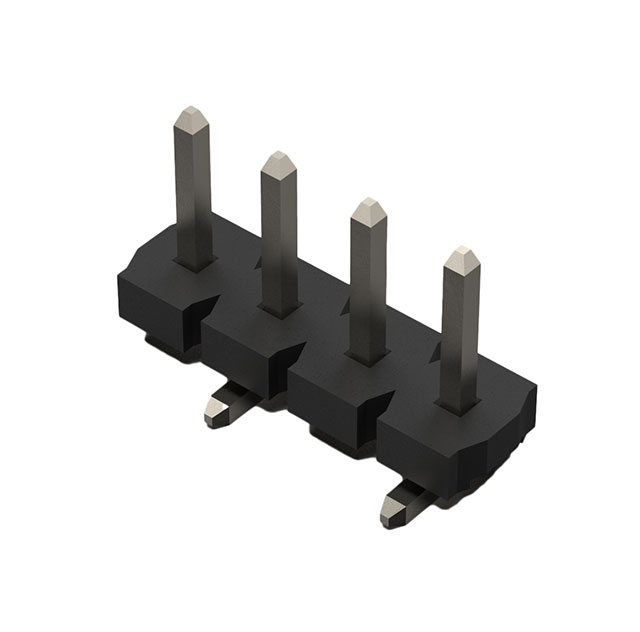

CONN HEADER SMD 5POS 5.08MM

Search across all available documentation for this part.

Active

GCT

CONN HEADER SMD 5POS 5.08MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BK010-05-C-0850-0864-0508-G	BK010 Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Mating	0.335 in	0.335 in
Contact Length - Mating	8.51 mm	8.51 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	7.9 A	7.9 A
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place	Pick and Place
Insulation Color	Black	Black
Insulation Height [z]	0.098 in	0.098 in
Insulation Height [z]	2.5 mm	2.5 mm
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	-	2 - 10
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	5.08 mm	5.08 mm
Pitch - Mating	0.2 in	0.2 in
Shrouding	Unshrouded	Unshrouded
Termination	Solder	Solder

CONN HEADER SMD 10POS 5.08MM

Part	Contact Type	Insulation Color	Contact Shape	Current Rating (Amps)	Mounting Type	Number of Positions Loaded	Fastening Type	Number of Rows	Contact Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Features	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Material	Connector Type	Insulation Height [z]	Insulation Height [z]	Number of Positions	Contact Finish - Post
GCT BK010-10-C-0850-0864-0508-G	Male Pin	Black	Square	7.9 A	Surface Mount	All	Push-Pull	1	Brass	Solder	-40 °C	105 ░C	Unshrouded	Pick and Place	UL94 V-0	5.08 mm	0.2 in	0.335 in	8.51 mm	Liquid Crystal Polymer (LCP)	Header	0.098 in	2.5 mm	10	Tin
GCT BK010-02-C-0850-0864-0508-G	Male Pin	Black	Square	7.9 A	Surface Mount	All	Push-Pull	1	Brass	Solder	-40 °C	105 ░C	Unshrouded	Pick and Place	UL94 V-0	5.08 mm	0.2 in	0.335 in	8.51 mm	Liquid Crystal Polymer (LCP)	Header	0.098 in	2.5 mm	2	Tin
GCT BK010-03-C-0850-0864-0508-G	Male Pin	Black	Square	7.9 A	Surface Mount	All	Push-Pull	1	Brass	Solder	-40 °C	105 ░C	Unshrouded	Pick and Place	UL94 V-0	5.08 mm	0.2 in	0.335 in	8.51 mm	Liquid Crystal Polymer (LCP)	Header	0.098 in	2.5 mm		Tin
GCT BK010-05-C-0850-0864-0508-G	Male Pin	Black	Square	7.9 A	Surface Mount	All	Push-Pull	1	Brass	Solder	-40 °C	105 ░C	Unshrouded	Pick and Place	UL94 V-0	5.08 mm	0.2 in	0.335 in	8.51 mm	Liquid Crystal Polymer (LCP)	Header	0.098 in	2.5 mm		Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 5 position 0.200" (5.08mm)
