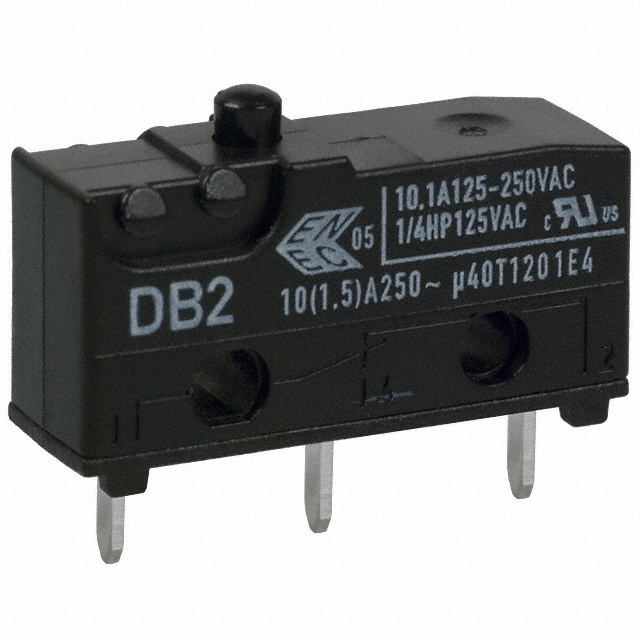

DB2CC1AA

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DB2CC1AA

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DB2CC1AA	DB2C Series

Actuator Type	Round (Pin Plunger)	Lever, Straight, Round (Pin Plunger), Roller, Lever
Circuit	SPDT	SPDT
Current Rating (Amps)	10 A	10 A
Differential Travel	0.1 mm	0.1 - 1.8 mm
Differential Travel	0.004 in	0.004 - 0.07 in
Electrical Life	6000 Cycles	6000 Cycles
Ingress Protection	IP50	IP50
Mechanical Life	10000000 Cycles	10000000 - 15000000 Cycles
Mounting Type	Through Hole	Chassis Mount, Through Hole
Operating Force	0.25 kgf	0.25 - 100 gf
Operating Position	8.4 mm	8.4 - 16.2 mm
Operating Position	0.33 in	0.33 - 0.638 in
Operating Position	-	0.437 "
Operating Position	-	11.1 mm
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.6 mm	0.6 - 4 mm
Overtravel	0.025 "	0.025 - 0.158 "
Pretravel	0.04 in	0.04 - 0.394 in
Pretravel	1 mm	1 - 10 mm
Switch Function	On-Mom	On-Mom
Termination Style	PC Pin	Solder Lug, Quick Connect - 0.110" (2.8mm), PC Pin
Voltage Rating - AC	125 V	125 V

DB2C Series

SWITCH SNAP ACTION SPDT 10A 125V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Voltage Rating - AC	Operating Force	Current Rating (Amps)	Overtravel	Overtravel	Electrical Life	Actuator Type	Termination Style	Operating Position [custom]	Operating Position [custom]	Pretravel	Pretravel	Mounting Type	Differential Travel	Differential Travel	Mechanical Life	Switch Function	Circuit	Operating Position	Operating Position
ZF Electronics DB2C-A1LC	-40 °C	120 °C	IP50	125 V	85 gf	10 A	1.5 mm	0.06 "	6000 Cycles	Lever, Straight	Solder Lug	0.437 "	11.1 mm	0.197 in	5 mm	Chassis Mount	1 mm	0.04 in	15000000 Cycles	On-Mom	SPDT
ZF Electronics DB2CB1AA	-40 °C	120 °C	IP50	125 V	0.25 kgf	10 A	0.6 mm	0.025 "	6000 Cycles	Round (Pin Plunger)	Quick Connect - 0.110" (2.8mm)			0.04 in	1 mm	Chassis Mount	0.1 mm	0.004 in	10000000 Cycles	On-Mom	SPDT	8.4 mm	0.33 in
ZF Electronics DB2CC1AA	-40 °C	120 °C	IP50	125 V	0.25 kgf	10 A	0.6 mm	0.025 "	6000 Cycles	Round (Pin Plunger)	PC Pin			0.04 in	1 mm	Through Hole	0.1 mm	0.004 in	10000000 Cycles	On-Mom	SPDT	8.4 mm	0.33 in
ZF Electronics DB2CA1RC	-40 °C	120 °C	IP50	125 V	95 gf	10 A	1.5 mm	0.06 "	6000 Cycles	Lever, Roller	Solder Lug			0.197 in	5 mm	Chassis Mount	1 mm	0.04 in	10000000 Cycles	On-Mom	SPDT	16.2 mm	0.638 in
ZF Electronics DB2C-A1MC	-40 °C	120 °C	IP50	125 V	35 gf	10 A	4 mm	0.158 in	6000 Cycles	Lever, Straight	Solder Lug			0.394 in	10 mm	Chassis Mount	1.8 mm	0.07 in	10000000 Cycles	On-Mom	SPDT	12.5 mm	0.492 in
ZF Electronics DB2CA1LB	-40 °C	120 °C	IP50	125 V	100 gf	10 A	1.5 mm	0.06 "	6000 Cycles	Lever, Straight	Solder Lug			0.178 in	4.5 mm	Chassis Mount	0.7 mm	0.027 "	10000000 Cycles	On-Mom	SPDT
ZF Electronics DB2CB1RC	-40 °C	120 °C	IP50	125 V	95 gf	10 A	1.5 mm	0.06 "	6000 Cycles	Lever, Roller	Quick Connect - 0.110" (2.8mm)			0.197 in	5 mm	Chassis Mount	1 mm	0.04 in	10000000 Cycles	On-Mom	SPDT	16.2 mm	0.638 in
ZF Electronics DB2CA1AA	-40 °C	120 °C	IP50	125 V	0.25 kgf	10 A	0.6 mm	0.025 "	6000 Cycles	Round (Pin Plunger)	Solder Lug			0.04 in	1 mm	Chassis Mount	0.1 mm	0.004 in	10000000 Cycles	On-Mom	SPDT	8.4 mm	0.33 in
ZF Electronics DB2C-B1LC	-40 °C	120 °C	IP50	125 V	85 gf	10 A	1.5 mm	0.06 "	6000 Cycles	Lever, Straight	Quick Connect - 0.110" (2.8mm)	0.437 "	11.1 mm	0.197 in	5 mm	Chassis Mount	1 mm	0.04 in	10000000 Cycles	On-Mom	SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.91
		10	$ 2.41
		25	$ 2.24
		50	$ 2.12
		100	$ 2.00
		250	$ 1.86
		500	$ 1.75
		1200	$ 1.63
		6000	$ 1.43

Description

General part information

DB2C Series

Switch SPDT Through Hole
