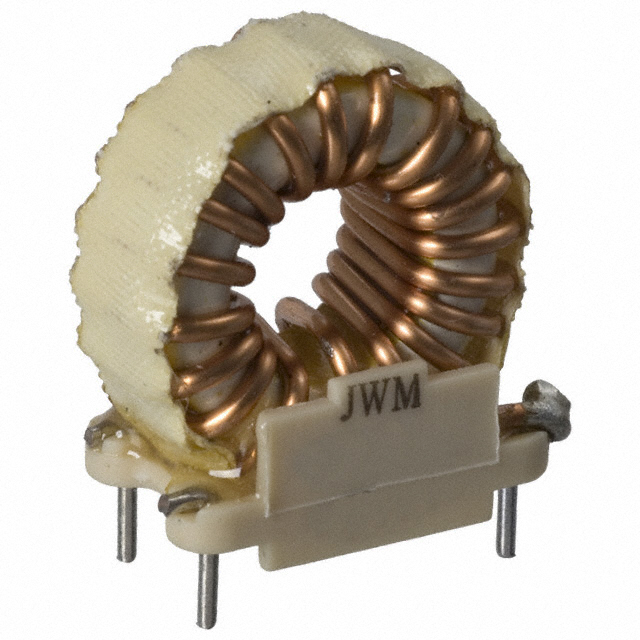

6701-RC
ObsoleteBourns Inc.
FIXED IND 10UH 11A 8 MOHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6701-RC
ObsoleteBourns Inc.
FIXED IND 10UH 11A 8 MOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6701-RC |
|---|---|
| Current Rating (Amps) | 11 A |
| DC Resistance (DCR) [Max] | 8 mOhm |
| Height - Seated (Max) [Max] [z] | 25.4 mm |
| Height - Seated (Max) [Max] [z] | 25.4 mm |
| Inductance | 10 µH |
| Material - Core | Iron Powder |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Vertical |
| Package / Case | 4 Leads |
| Shielding | Shielded |
| Size / Dimension [x] | 0.875 in |
| Size / Dimension [x] | 22.22 mm |
| Size / Dimension [y] | 0.425 " |
| Size / Dimension [y] | 10.8 mm |
| Tolerance | 15 % |
| Type | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
6701 Series
10 µH Shielded Toroidal Inductor 11 A 8mOhm Max Radial, Vertical, 4 Leads (Open)
