93A2A-B28-A15/A15L

Active

Bourns Inc.

PANEL CONTROL - 5/8" (16MM) ST-CP ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

PANEL CONTROL - 5/8" (16MM) ST-CP ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Taper	Actuator Diameter	Actuator Diameter [diameter]	Resistance (Ohms)	Tolerance	Rotation	Bushing Thread	Resistive Material	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Actuator Length [z]	Actuator Length [z]	Number of Gangs	Temperature Coefficient	Power (Watts)	Termination Style	Actuator Type	Number of Turns	Built in Switch	Adjustment Type
Bourns Inc. 93A2A-B28-A15/A15L	Linear	6.35 mm	0.25 in	10k	10 %	300 ░	3/8-32	Cermet	0.687 in	0.625 in	17.45 mm	15.88 mm	22.23 mm	0.875 in	2	150 ppm/°C	1 W	PC Pins	Slotted	1		Side Adjustment

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	270	$ 8.55
Newark	Each	250	$ 7.70
		500	$ 7.16

General part information

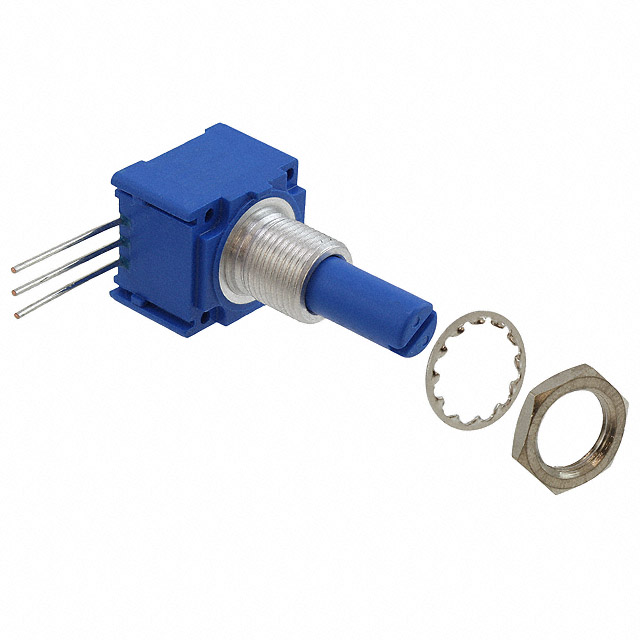

10k Ohm 2 Gang Linear Panel Mount Potentiometer 1.0 Turns Cermet 1W PC Pins

Technical documentation and resources
