106527-4
ActiveTE Connectivity AMP Connectors

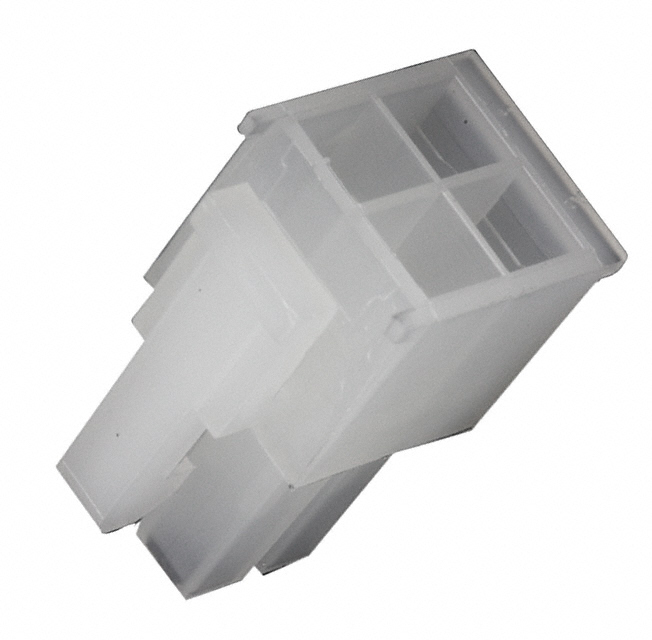

CONN RCPT HSG 4POS 4.20MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
106527-4
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS 4.20MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 106527-4 | 106527 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 4 - 22 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 4.2 mm | 4.2 mm |
| Pitch [x] | 0.165 in | 0.165 in |
| Row Spacing | 4.2 mm | 4.2 mm |
| Row Spacing | 0.165 in | 0.165 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
106527 Series
CONN RCPT HSG 4POS 4.20MM
| Part | Number of Positions | Color | Pitch [x] | Pitch [x] | Fastening Type | Mounting Type | Connector Type | Row Spacing | Row Spacing | Contact Termination | Contact Type | Number of Rows | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 106527-4 | 4 | Natural | 4.2 mm | 0.165 in | Latch Lock | Free Hanging (In-Line) | Receptacle | 4.2 mm | 0.165 in | Crimp | Female Socket | 2 | Contacts Not Included |
TE Connectivity AMP Connectors 2-106527-2 | 22 positions | Natural | 4.2 mm | 0.165 in | Latch Lock | Free Hanging (In-Line) | Receptacle | 4.2 mm | 0.165 in | Crimp | Female Socket | 2 | Contacts Not Included |
TE Connectivity AMP Connectors 1-106527-4 | 14 | Natural | 4.2 mm | 0.165 in | Latch Lock | Free Hanging (In-Line) | Receptacle | 4.2 mm | 0.165 in | Crimp | Female Socket | 2 | Contacts Not Included |
TE Connectivity AMP Connectors 1-106527-8 | 18 | Natural | 4.2 mm | 0.165 in | Latch Lock | Free Hanging (In-Line) | Receptacle | 4.2 mm | 0.165 in | Crimp | Female Socket | 2 | Contacts Not Included |
Description
General part information
106527 Series
4 Rectangular Connectors - Housings Receptacle Natural 0.165" (4.20mm)
