Technical Specifications
Parameters and characteristics for this part
| Specification | EVALSTPM32 |
|---|---|
| Contents | Board(s) |
| Function | Energy/Power Meter |
| Secondary Attributes | On-Board LEDs |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | STPM32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

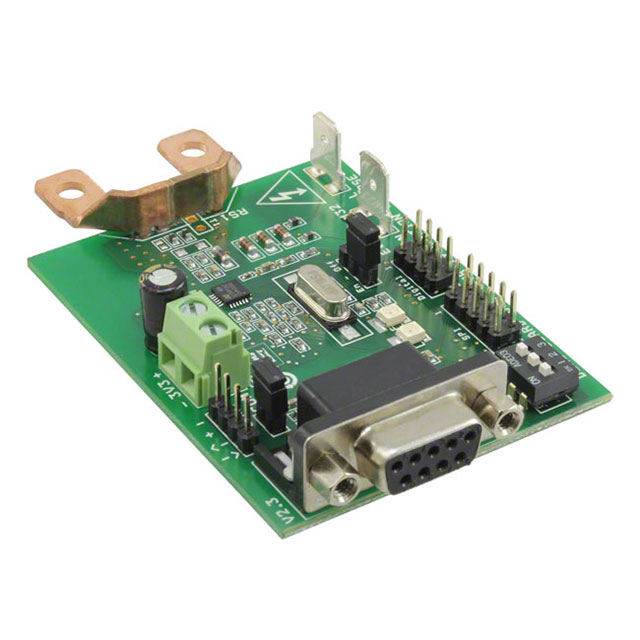

EVALSTPM32 Series
The STPM32 energy metering evaluation board is a class 0.2, single-phase meter with shunt current sensor for power line systems with Vnom= 140 to 300 V(RMS), Inom/ Imax= 5/100 A(RMS), flin= 50/60 Hz ± 10% and Tamb= -40 to +85 °C.
Measured active/reactive power can be output from two programmable LEDs on the board.
The board can be interfaced with a PC running evaluation software through an isolated RS232 port, or through the STEVAL-IPE023V1 USB isolated interface tool for configuration and data reading.
