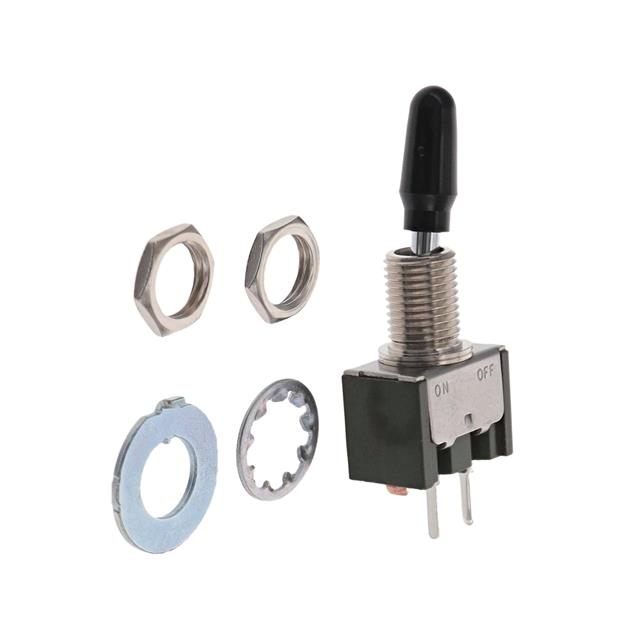

BUSHING MOUNT MINIATURE TOGGLE SWITCH; POLES: SPST; CIRCUITS: ON-OFF; CURRENT RATING: 6A (AC), 4A (DC); RATING (AC): 125V; RATING (DC): 30V; ACTUATOR TYPE: STANDARD ROUND WITH CAP; ACTUATOR LENGTH: 13.50MM; ILLUMINATION: NON-ILLUMINATED; MOUNTING TYPE: PANEL MOUNT; TERMINATION STYLE: PC PIN; PANEL CUTOUT DIMENSIONS: CIRCULAR - 6.50MM DIA; BUSHING THREAD: 14614; FEATURES: BLACK CAP; RATING: 6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2011SS1W03-BA

Obsolete

NKK Switches

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2011SS1W03-BA

Actuator Length [x]	13.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round with Cap
Bushing Thread	1/4-40
Circuit	SPST
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Black Cap
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Off
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2011SS Series

Part	Actuator Material	Illumination	Actuator Length [x]	Circuit	Actuator Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Features	Electrical Life	Switch Function	Current Rating (Amps)	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Bushing Thread	Termination Style
NKK Switches M2011SS1W01-BA	Brass Chrome Plated	Non-Illuminated	13.5 mm	SPST	Standard Round with Cap	6.5 mm	125 V	Black Cap	25000 Steps	On-Off	4 A 6 A	30 V	-30 ░C	85 °C	1/4-40	Solder Lug
NKK Switches M2011SS1W01-BB	Brass Chrome Plated	Non-Illuminated	13.5 mm	SPST	Standard Round with Cap	6.5 mm	125 V	White Cap	25000 Steps	On-Off	4 A 6 A	30 V	-30 ░C	85 °C	1/4-40	Solder Lug
NKK Switches M2011SS1W03-BA	Brass Chrome Plated	Non-Illuminated	13.5 mm	SPST	Standard Round with Cap	6.5 mm	125 V	Black Cap	25000 Steps	On-Off	4 A 6 A	30 V	-30 ░C	85 °C	1/4-40	PC Pin
NKK Switches M2011SS1W01/CUL	Brass Chrome Plated	Non-Illuminated		SPST	Standard Round	6.5 mm	125 V	Epoxy Sealed Terminals	25000 Steps	On-Off	4 A 6 A	30 V	-30 ░C	85 °C	1/4-40	Solder Lug
NKK Switches M2011SS1W02-BE	Brass Chrome Plated	Non-Illuminated	13.5 mm	SPST	Standard Round with Cap	6.5 mm	125 V	Yellow Cap	25000 Steps	On-Off	4 A 6 A	30 V	-30 ░C	85 °C	1/4-40	Quick Connect - 0.062" (1.5mm)
NKK Switches M2011SS4G01	Brass Chrome Plated	Non-Illuminated		SPST	Standard Round	6.5 mm	28 V	Epoxy Sealed Terminals	25000 Steps	On-Off	0.4 VA	28 V	-30 ░C	85 °C	M6 x 0.75	Solder Lug
NKK Switches M2011SS1W03	Brass Chrome Plated	Non-Illuminated		SPST	Standard Round	6.5 mm	125 V	Epoxy Sealed Terminals	25000 Steps	On-Off	4 A 6 A	30 V	-30 ░C	85 °C	1/4-40	PC Pin
NKK Switches M2011SS1G01	Brass Chrome Plated	Non-Illuminated		SPST	Standard Round	6.5 mm	28 V	Epoxy Sealed Terminals	50000 Cycles	On-Off	0.4 VA	28 V	-30 ░C	85 °C	1/4-40	Solder Lug
NKK Switches M2011SS1A01	Brass Chrome Plated	Non-Illuminated		SPST	Standard Round	6.5 mm	125 V	Epoxy Sealed Terminals	25000 Steps	On-Off	4 A 6 A	30 V	-30 ░C	85 °C	1/4-40	Solder Lug
NKK Switches M2011SS1W01-BC	Brass Chrome Plated	Non-Illuminated	13.5 mm	SPST	Standard Round with Cap	6.5 mm	125 V	Red Cap	25000 Steps	On-Off	4 A 6 A	30 V	-30 ░C	85 °C	1/4-40	Solder Lug
