74HC390 Series

Part	Number of Bits per Element	Logic Type	Mounting Type	Package Name	Count Rate	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Direction	Package Width	Package Length	Trigger Type	Operating Temperature (Max)	Operating Temperature (Min)	Reset	Number of Elements
Nexperia USA Inc. 74HC390DB,112	4 bits	Counter Decade	Surface Mount	16-SSOP	71 MHz	6 V	2 V	Up	5.3 mm	0.209 in	Negative Edge	125 °C	-40 °C	Asynchronous	2
Nexperia USA Inc. 74HC390D,652	4 bits	Counter Decade	Surface Mount	16-SO 16-SOIC	71 MHz	6 V	2 V	Up	3.9 mm	0.154 in	Negative Edge	125 °C	-40 °C	Asynchronous	2

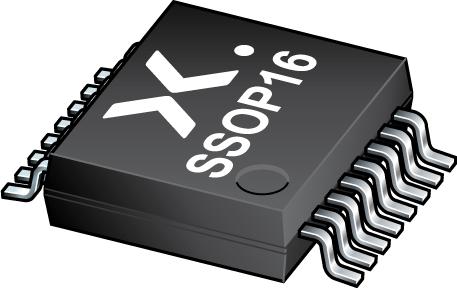

Nexperia USA Inc. 74HC390DB,118	4 bits	Counter Decade	Surface Mount	16-SSOP	71 MHz	6 V	2 V	Up	5.3 mm	0.209 in	Negative Edge	125 °C 125 °C	-40 °C	Asynchronous	2
Nexperia USA Inc. 74HC390PW,112	4 bits	Counter Decade	Surface Mount	16-TSSOP	71 MHz	6 V	2 V	Up	4.4 mm	0.173 in	Negative Edge	125 °C	-40 °C	Asynchronous	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
