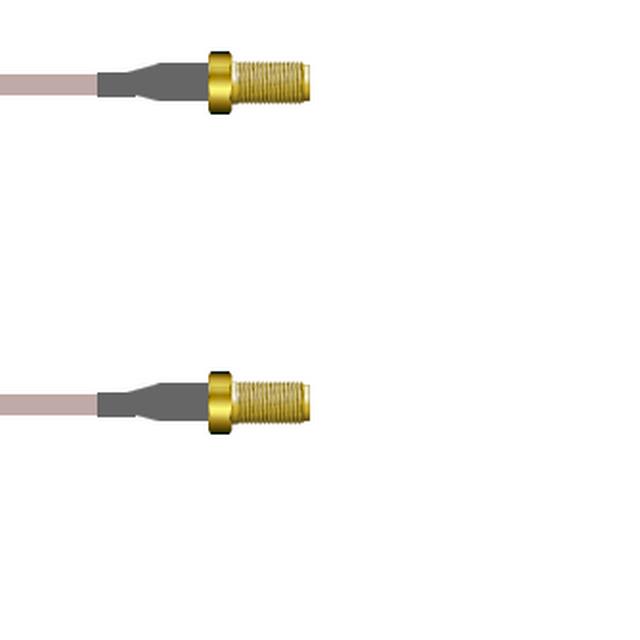

Q-2V02V0005024I

Active

Amphenol Custom Cable

CBL ASSY SMA JACK TO JACK 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2V02V0005024I

Active

Amphenol Custom Cable

CBL ASSY SMA JACK TO JACK 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2V02V0005024I

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMA Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	SMA to SMA

Q-2V02V0 Series

Part	1st Connector	Style	Overall Impedance	Cable Type	2nd Connector	1st Connector Mounting Type	Frequency - Max [Max]	Length	Length	Connector Impedance	Color	Cable Impedance	2nd Connector Mounting Type	Features	1st Contact Gender	2nd Contact Gender	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2V02V0005036I	SMA Jack	SMA to SMA	50 Ohms	RG-316	SMA Jack	Free Hanging (In-Line)	3 GHz	91.44 cm	36 in	50 Ohms	Copper	50 Ohms	Free Hanging (In-Line)	Shielded	Female	Female
Amphenol Custom Cable Q-2V02V00051.5M	SMA Jack	SMA to SMA	50 Ohms	RG-316	SMA Jack	Free Hanging (In-Line)	3 GHz	1.5 m	59.1 in	50 Ohms	Copper	50 Ohms	Free Hanging (In-Line)	Shielded	Female	Female	4.9 ft
Amphenol Custom Cable Q-2V02V0005024I	SMA Jack	SMA to SMA	50 Ohms	RG-316	SMA Jack	Free Hanging (In-Line)	3 GHz	609.6 mm	24 "	50 Ohms	Copper	50 Ohms	Free Hanging (In-Line)	Shielded	Female	Female
Amphenol Custom Cable Q-2V02V0003018I	SMA Jack	SMA to SMA	50 Ohms	RG-174	SMA Jack	Free Hanging (In-Line)	1 GHz			50 Ohms	Black	50 Ohms	Free Hanging (In-Line)	Shielded	Female	Female		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2V02V0003003M	SMA Jack	SMA to SMA	50 Ohms	RG-174	SMA Jack	Free Hanging (In-Line)	1 GHz	3 m	118.1 in	50 Ohms	Black	50 Ohms	Free Hanging (In-Line)	Shielded	Female	Female	9.8 '
Amphenol Custom Cable Q-2V02V0005012I	SMA Jack	SMA to SMA	50 Ohms	RG-316	SMA Jack	Free Hanging (In-Line)	3 GHz	304.8 mm	12 "	50 Ohms	Copper	50 Ohms	Free Hanging (In-Line)	Shielded	Female	Female
Amphenol Custom Cable Q-2V02V0005006I	SMA Jack	SMA to SMA	50 Ohms	RG-316	SMA Jack	Free Hanging (In-Line)	3 GHz	152.4 mm	6 in	50 Ohms	Copper	50 Ohms	Free Hanging (In-Line)	Shielded	Female	Female
Amphenol Custom Cable Q-2V02V0003006I	SMA Jack	SMA to SMA	50 Ohms	RG-174	SMA Jack	Free Hanging (In-Line)	1 GHz	152.4 mm	6 in	50 Ohms	Black	50 Ohms	Free Hanging (In-Line)	Shielded	Female	Female
Amphenol Custom Cable Q-2V02V0003024I	SMA Jack	SMA to SMA	50 Ohms	RG-174	SMA Jack	Free Hanging (In-Line)	1 GHz	609.6 mm	24 "	50 Ohms	Black	50 Ohms	Free Hanging (In-Line)	Shielded	Female	Female
Amphenol Custom Cable Q-2V02V00032.5M	SMA Jack	SMA to SMA	50 Ohms	RG-174	SMA Jack	Free Hanging (In-Line)	1 GHz	2.5 m	98.4 in	50 Ohms	Black	50 Ohms	Free Hanging (In-Line)	Shielded	Female	Female	8.2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 84.97
		25	$ 83.30
		50	$ 81.63
		100	$ 79.96
		250	$ 78.29

Description

General part information

Q-2V02V0 Series

Cable Assembly Coaxial SMA to SMA RG-316 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
