PRA.M0.7TL.LC39NZ
ActiveLEMO

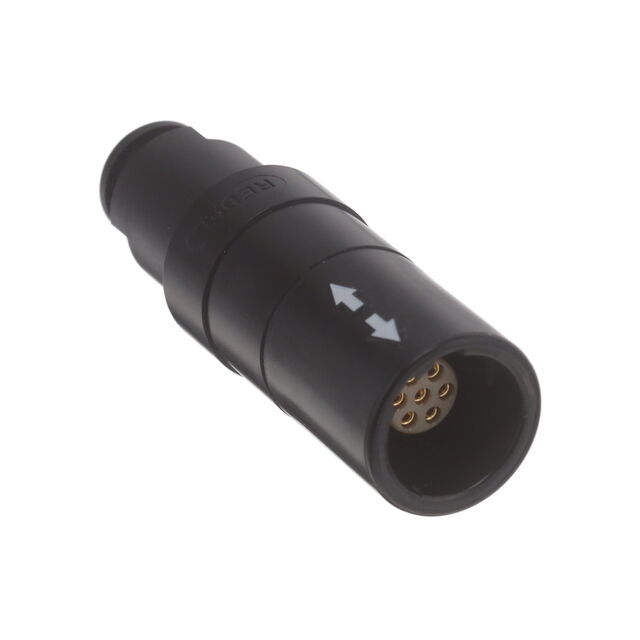

CONN RCPT FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRA.M0.7TL.LC39NZ
ActiveLEMO
CONN RCPT FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PRA.M0.7TL.LC39NZ | PRA.M0 Series |
|---|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Backshell Material, Plating | Polyetherimide (PEI) | Polysulfone (PSU), Polyetherimide (PEI) |
| Cable Opening | - | 0.157 in |
| Cable Opening | - | 0.205 in |
| Cable Opening | - | 4 mm |
| Cable Opening | - | 5.2 mm |
| Cable Opening [Max] [diameter] | 0.154 in | 0.154 in |
| Cable Opening [Max] [diameter] | 3.9 mm | 3.9 mm |
| Cable Opening [Min] [diameter] | 2.7 mm | 2.7 mm |
| Cable Opening [Min] [diameter] | 0.106 in | 0.106 in |
| Color | Black | Gray, Black, Blue |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 5 A | 5 - 8 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 7 | 4 - 8 |
| Operating Temperature [Max] | 170 °C | 150 - 170 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | A | A |
| Primary Material | Plastic | Plastic |
| Shell Material | Polyetherimide (PEI) | Polysulfone (PSU), Polyetherimide (PEI) |
| Shell Size - Insert | - | M08, M05, M04, M06 |
| Shielding | Unshielded | Unshielded |
PRA.M0 Series
CONN RCPT FMALE 8P GOLD SLDR CUP
| Part | Ingress Protection | Number of Positions | Primary Material | Mounting Type | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Orientation | Current Rating (Amps) | Shielding | Color | Shell Material | Connector Type | Insert Material | Fastening Type | Features | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Applications | Shell Size - Insert | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PRA.M0.8GL.LC52G | IP50 | 8 | Plastic | Free Hanging (In-Line) | 0.157 in | 0.205 in | 4 mm | 5.2 mm | A | 5 A | Unshielded | Gray | Polysulfone (PSU) | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | Detent Lock, Push-Pull | Backshell | Gold | 150 °C | -50 °C | Polysulfone (PSU) | Automotive, Industrial, Medical, Testing Equipment & Measurement | M08 | ||||
IP50 | Plastic | Free Hanging (In-Line) | A | 7 A | Unshielded | Black | Polyetherimide (PEI) | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | Detent Lock, Push-Pull | Backshell | Gold | 170 °C | -50 °C | Polyetherimide (PEI) | Automotive, Industrial, Medical, Testing Equipment & Measurement | M05 | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | ||||||
LEMO PRA.M0.4NL.LC39A | IP50 | 4 | Plastic | Free Hanging (In-Line) | A | 8 A | Unshielded | Black, Blue | Polysulfone (PSU) | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | Detent Lock, Push-Pull | Backshell | Gold | 150 °C | -50 °C | Polysulfone (PSU) | Automotive, Industrial, Medical, Testing Equipment & Measurement | M04 | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | ||||
LEMO PRA.M0.6GL.LC52G | IP50 | 6 | Plastic | Free Hanging (In-Line) | 0.157 in | 0.205 in | 4 mm | 5.2 mm | A | 6 A | Unshielded | Gray | Polysulfone (PSU) | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | Detent Lock, Push-Pull | Backshell | Gold | 150 °C | -50 °C | Polysulfone (PSU) | Automotive, Industrial, Medical, Testing Equipment & Measurement | M06 | ||||
IP50 | 7 | Plastic | Free Hanging (In-Line) | A | 5 A | Unshielded | Black | Polyetherimide (PEI) | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | Detent Lock, Push-Pull | Backshell | Gold | 170 °C | -50 °C | Polyetherimide (PEI) | Automotive, Industrial, Medical, Testing Equipment & Measurement | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | ||||||
IP50 | 6 | Plastic | Free Hanging (In-Line) | 0.157 in | 0.205 in | 4 mm | 5.2 mm | A | 6 A | Unshielded | Gray | Polysulfone (PSU) | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | Detent Lock, Push-Pull | Backshell | Gold | 150 °C | -50 °C | Polysulfone (PSU) | Automotive, Industrial, Medical, Testing Equipment & Measurement | M06 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 41.91 | |
| 10 | $ 36.70 | |||
| 25 | $ 35.11 | |||
| 50 | $ 33.98 | |||
| 100 | $ 32.85 | |||
| 250 | $ 31.04 | |||
Description
General part information
PRA.M0 Series
7 Position Circular Connector Receptacle, Female Sockets Solder Cup
Documents
Technical documentation and resources
