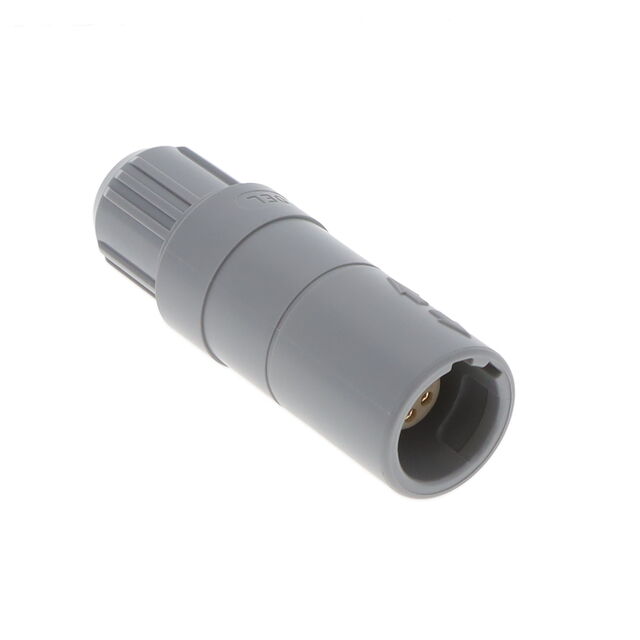

PRA.M0.6GL.LC52G

Active

LEMO

CONN RCPT FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRA.M0.6GL.LC52G

Active

LEMO

CONN RCPT FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.40
		10	$ 26.62
		25	$ 25.47
		50	$ 24.65
		100	$ 23.83
		250	$ 22.51

Description

General part information

PRA.M0 Series

6 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PRA.M0.6GL.LC52G	PRA.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)	Polysulfone (PSU), Polyetherimide (PEI)
Cable Opening	-	2.7 mm
Cable Opening	-	0.154 in
Cable Opening	-	3.9 mm
Cable Opening	-	0.106 in
Cable Opening [Max] [custom]	0.205 in	0.205 in
Cable Opening [Max] [custom]	5.2 mm	5.2 mm
Cable Opening [Min] [custom]	0.157 in	0.157 in
Cable Opening [Min] [custom]	4 mm	4 mm
Color	Gray	Gray, Black, Blue
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	6 A	5 - 8 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	4 - 8
Operating Temperature [Max]	150 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	A	A
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU), Polyetherimide (PEI)
Shell Size - Insert	M06	M08, M05, M04, M06
Shielding	Unshielded	Unshielded

PRA.M0 Series

CONN RCPT FMALE 8P GOLD SLDR CUP

Part	Ingress Protection	Number of Positions	Primary Material	Mounting Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Orientation	Current Rating (Amps)	Shielding	Color	Shell Material	Connector Type	Insert Material	Fastening Type	Features	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Applications	Shell Size - Insert	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
LEMO PRA.M0.8GL.LC52G	IP50	8	Plastic	Free Hanging (In-Line)	0.157 in	0.205 in	4 mm	5.2 mm	A	5 A	Unshielded	Gray	Polysulfone (PSU)	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold	150 °C	-50 °C	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	M08
LEMO PRA.M0.5TL.LC39NZ	IP50		Plastic	Free Hanging (In-Line)					A	7 A	Unshielded	Black	Polyetherimide (PEI)	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold	170 °C	-50 °C	Polyetherimide (PEI)	Automotive, Industrial, Medical, Testing Equipment & Measurement	M05	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PRA.M0.4NL.LC39A	IP50	4	Plastic	Free Hanging (In-Line)					A	8 A	Unshielded	Black, Blue	Polysulfone (PSU)	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold	150 °C	-50 °C	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	M04	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PRA.M0.6GL.LC52G	IP50	6	Plastic	Free Hanging (In-Line)	0.157 in	0.205 in	4 mm	5.2 mm	A	6 A	Unshielded	Gray	Polysulfone (PSU)	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold	150 °C	-50 °C	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	M06
LEMO PRA.M0.7TL.LC39NZ	IP50	7	Plastic	Free Hanging (In-Line)					A	5 A	Unshielded	Black	Polyetherimide (PEI)	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold	170 °C	-50 °C	Polyetherimide (PEI)	Automotive, Industrial, Medical, Testing Equipment & Measurement		2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PRA.M0.6GL.LC52GZ	IP50	6	Plastic	Free Hanging (In-Line)	0.157 in	0.205 in	4 mm	5.2 mm	A	6 A	Unshielded	Gray	Polysulfone (PSU)	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold	150 °C	-50 °C	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	M06
