EH35-2.0-02-20M

Active

Schaffner EMC Inc.

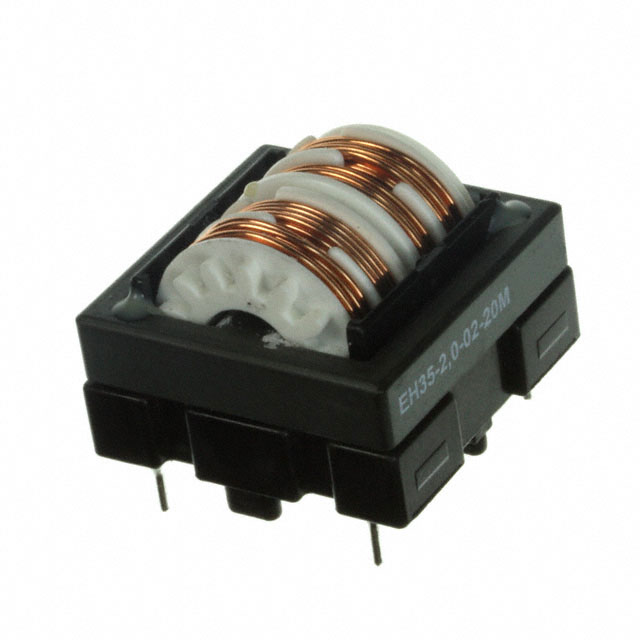

CMC 20MH 2A 2LN TH

Search across all available documentation for this part.

Active

Schaffner EMC Inc.

CMC 20MH 2A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	EH35-2.0-02-20M

Current Rating (Max) [Max]	2 A
DC Resistance (DCR) (Max)	150 mOhm
Filter Type	Power Line
Height (Max) [Max]	1.13 in
Height (Max) [Max]	28.7 mm
Inductance @ Frequency	20 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Horizontal
Package / Case	4 Lead
Size / Dimension [x]	36 mm
Size / Dimension [x]	1.417 in
Size / Dimension [y]	1.417 in
Size / Dimension [y]	36 mm
Voltage Rating - AC	250 V

CMC 20MH 2A 2LN TH

Part	Package / Case	Package / Case	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [Max]	Height (Max) [Max]	Current Rating (Max) [Max]	Inductance @ Frequency	Operating Temperature [custom]	Mounting Type	DC Resistance (DCR) (Max)	Number of Lines	Filter Type
Schaffner EMC Inc. EH35-2.0-02-20M	Horizontal	4 Lead	250 V	36 mm	1.417 in	36 mm	1.417 in	1.13 in	28.7 mm	2 A	20 mH	-25 °C, 100 °C	Through Hole	150 mOhm	2	Power Line

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	250	$ 4.52

General part information

20 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2A DCR 150mOhm (Typ)
