Specification	RJFRB73F

Connector Type	Ethernet, RJ45, Jack
Features	Circular Bayonet Coupling
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
LED Color	Does Not Contain LED
Mounting Type	Bulkhead, Panel Mount
Number of Contacts	8
Number of Ports	1
Number of Positions	8
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	Straight
Ratings	Cat6
Shielding	Shielded
Tab Direction	User Selectable
Termination	IDC

RJFRB Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Ratings	LED Color	Termination	Number of Rows	Tab Direction	Shielding	Number of Positions	Connector Type	Number of Contacts	Orientation	Features	Number of Ports	Ingress Protection Description	Ingress Protection IP Rating	Mounting Type	Length	Cable Type	Color	Style	Convert To (Adapter End)	Mounting Feature	Shell Material, Finish	Type	Convert From (Adapter End)	Accessory Type	For Use With/Related Products
McGill Microwave Systems RJFRB73F	-40 °C	85 °C	Cat6	Does Not Contain LED	IDC	1	User Selectable	Shielded	8	Ethernet Jack RJ45	8	Straight	Circular Bayonet Coupling	1	Dust Tight Waterproof	IP67	Bulkhead Panel Mount

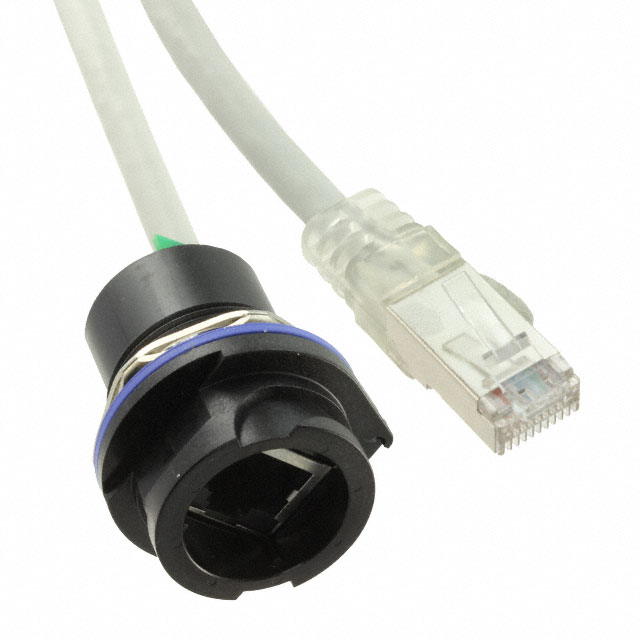

McGill Microwave Systems RJFRB7210100BTX								Shielded	8	Ethernet Jack to Plug RJ45	8		Circular Bayonet Coupling Molded Plugs				Bulkhead Panel Mount	3.28 ft	Round Cable	Gray	Cat6 Industrial Environments - IP67
McGill Microwave Systems RJFRB73S	-40 °C	85 °C	Cat6	Does Not Contain LED	IDC	1	User Selectable	Shielded	8	Ethernet Jack RJ45	8	Straight	Circular Bayonet Coupling	1	Dust Tight Waterproof	IP67	Bulkhead Panel Mount
McGill Microwave Systems RJFRB73U	-40 °C	85 °C	Cat6	Does Not Contain LED	IDC	1	User Selectable	Unshielded	8	Ethernet Jack RJ45	8	Straight	Circular Bayonet Coupling	1	Dust Tight Waterproof	IP67	Bulkhead Panel Mount

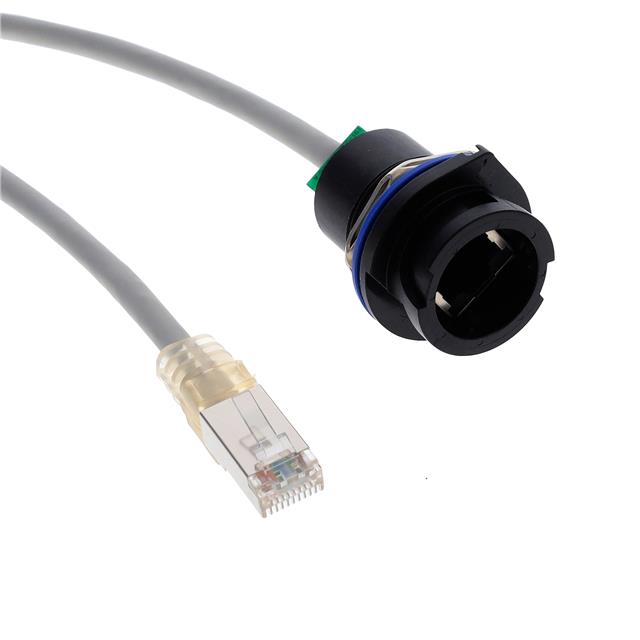

McGill Microwave Systems RJFRB7215100BTX								Shielded	8	Ethernet Jack to Plug RJ45	8		Circular Bayonet Coupling Molded Plugs				Bulkhead Panel Mount	4.92 ft	Round Cable	Gray	Cat6 Industrial Environments - IP67
McGill Microwave Systems RJFRB7205100BTX								Shielded	8	Ethernet Jack to Plug RJ45	8		Circular Bayonet Coupling Molded Plugs				Bulkhead Panel Mount	1.64 ft	Round Cable	Gray	Cat6 Industrial Environments - IP67
McGill Microwave Systems RJFRB71RA	-40 °C	85 °C	Cat5e					Unshielded					Circular Reverse Bayonet Coupling Industrial Environments		Dust Tight Waterproof	IP67	Bulkhead Panel Mount Right Angle					8p8c (RJ45) Jack	Rear Side Nut	Plastic	Coupler	8p8c (RJ45) Jack

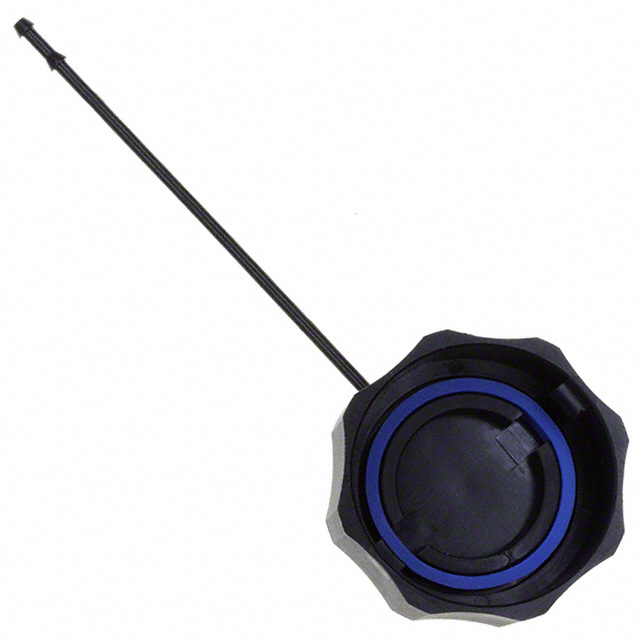

McGill Microwave Systems RJFRBC7													IP67 Lanyard														Cap (Cover) Dust	RJF RB Series Receptacle
McGill Microwave Systems RJFRB71	-40 °C	85 °C	Cat5e					Unshielded					Circular Reverse Bayonet Coupling Industrial Environments		Dust Tight Waterproof	IP67	Bulkhead Panel Mount					8p8c (RJ45) Jack	Rear Side Nut	Plastic	Coupler	8p8c (RJ45) Jack
McGill Microwave Systems RJFRB75	-40 °C	85 °C		Does Not Contain LED	Solder	1	User Selectable	Shielded	8	Ethernet Jack RJ45	8	Straight	Circular Bayonet Coupling	1	Dust Tight Waterproof	IP68	Bulkhead Panel Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RJ-USB Field Solutions Catalog

RJFRB73F | Datasheet
