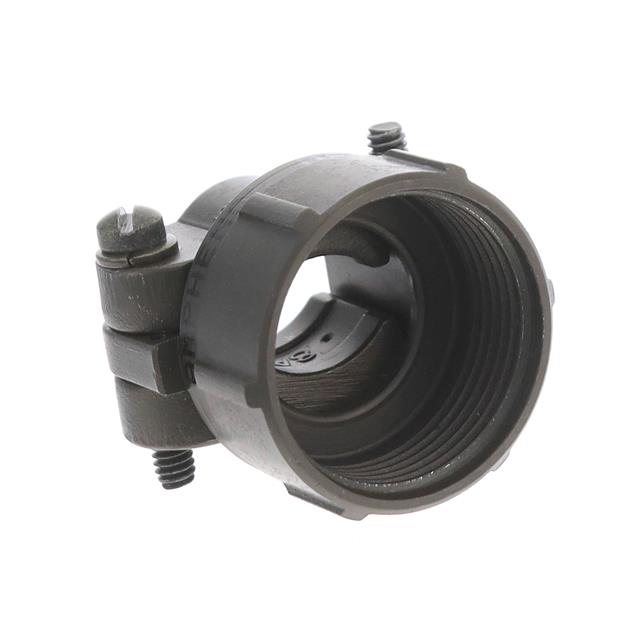

MS3057-8A

Active

Amphenol Interconnect India

CONN BACKSHELL

Search across all available documentation for this part.

Active

Amphenol Interconnect India

CONN BACKSHELL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Cable Clamp 16, 16S

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	MS3057-8A	MS3057 Series

Accessory Type	-	Cable Clamp
Cable Exit	180 °	180 °
Cable Opening	-	0.23 - 0.738 in
Cable Opening	-	10.87 - 18.75 mm
Cable Opening	-	5.84 - 11.3 mm
Cable Opening	-	23.52 mm
Cable Opening	-	0.926 in
Cable Opening	-	0.611 in
Cable Opening	-	15.52 mm
Cable Opening	-	0.312 in
Cable Opening	-	7.93 mm
Cable Opening [Max] [custom]	0.515 in	0.515 in
Cable Opening [Max] [custom]	13.08 mm	13.08 mm
Cable Opening [Min] [custom]	0.316 in	0.316 in
Cable Opening [Min] [custom]	8.03 mm	8.03 mm
For Use With/Related Products	MIL-C-22992 Connectors	MIL-C-22992 Connectors, MS Series Connectors
Plating	Cadmium	Cadmium
Primary Material	Metal	Metal
Shell Size - Insert	-	18 - 36
Shell Size - Insert	-	14S, 14, 28, 24, 10SL, 12S, 12, 12SL, 10S, 8S, 20, 22
Shielding	Unshielded	Unshielded
Thread Size	-	5/8-24 UNEF
Type	Cable Clamp	Cable Clamp

CONN BACKSHELL

Part	Plating	Shell Size - Insert	For Use With/Related Products	Primary Material	Shielding	Type	Cable Exit	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert	Accessory Type	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Thread Size
Amphenol Interconnect India MS3057-24A	Cadmium	36	MIL-C-22992 Connectors	Metal	Unshielded	Cable Clamp	180 °
Amphenol Interconnect India MS3057-6A	Cadmium		MIL-C-22992 Connectors	Metal	Unshielded	Cable Clamp	180 °	0.23 in, 0.428 in	10.87 mm	5.84 mm	14, 14S
Amphenol Interconnect India MS3057-10A		18	MS Series Connectors									Cable Clamp
Amphenol Interconnect India MS3057-16A	Cadmium		MIL-C-22992 Connectors	Metal	Unshielded	Cable Clamp	180 °				24, 28		23.52 mm	0.926 in	0.611 in	15.52 mm
Amphenol Interconnect India MS3057-8A	Cadmium		MIL-C-22992 Connectors	Metal	Unshielded	Cable Clamp	180 °										0.316 in	0.515 in	13.08 mm	8.03 mm
Amphenol Interconnect India MS3057-4A	Cadmium		MIL-C-22992 Connectors	Metal	Unshielded	Cable Clamp	180 °				10S, 10SL, 12, 12S, 12SL										0.312 in	7.93 mm	5/8-24 UNEF
Amphenol Interconnect India MS3057-3A			MS Series Connectors								8S	Cable Clamp
Amphenol Interconnect India MS3057-12A	Cadmium		MIL-C-22992 Connectors	Metal	Unshielded	Cable Clamp	180 °	0.445 in, 0.738 in	18.75 mm	11.3 mm	20, 22
