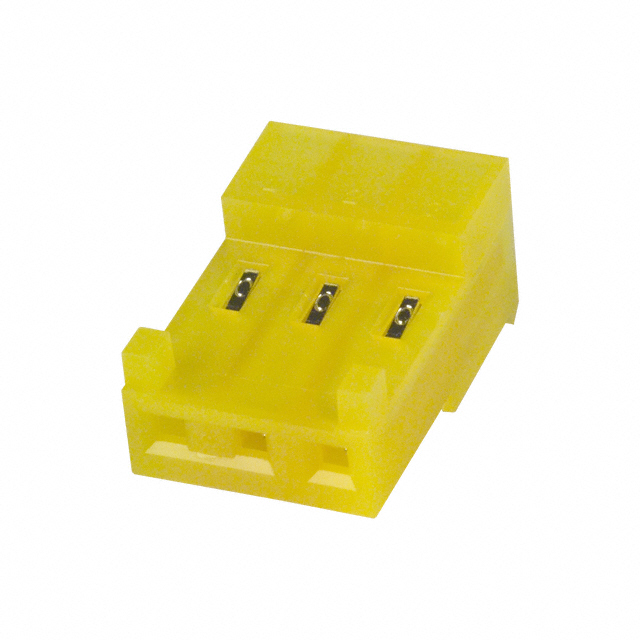

Specification	644462-3

Cable Termination	IDC
Color	Yellow
Connector Type	Receptacle
Contact Finish	Tin-Lead
Contact Finish Thickness	80 µin
Contact Type	Female Socket
Features	Closed End, Polarizing Key
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Number of Rows	1
Pitch	0.156 in
Wire Gauge	20 AWG
Wire Type	Ribbon Cable, Discrete

644462 Series

Part	Connector Type	Wire Gauge	Features	Contact Finish Thickness	Contact Type	Contact Finish	Pitch	Wire Type	Cable Termination	Number of Positions	Number of Rows	Color	Mounting Type

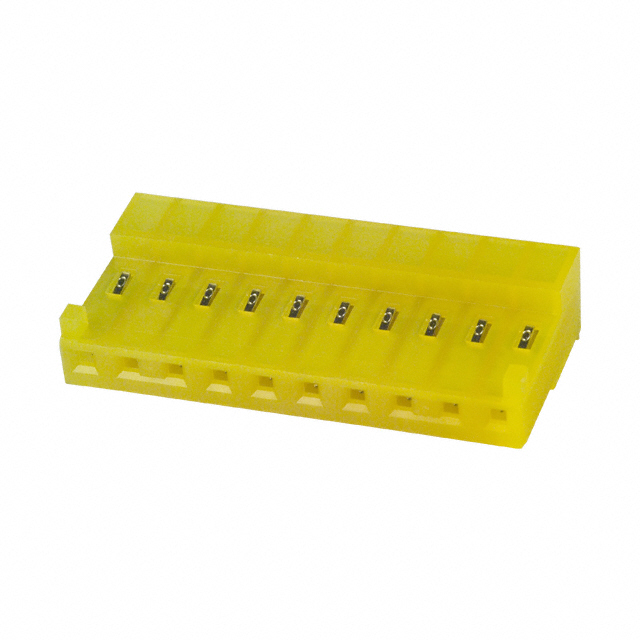

TE Connectivity AMP Connectors 1-644462-0	Receptacle	20 AWG	Closed End Polarizing Key	80 µin	Female Socket	Tin-Lead	0.156 in	Discrete Ribbon Cable	IDC	10	1	Yellow	Free Hanging (In-Line)
TE Connectivity AMP Connectors 644462-3	Receptacle	20 AWG	Closed End Polarizing Key	80 µin	Female Socket	Tin-Lead	0.156 in	Discrete Ribbon Cable	IDC	3	1	Yellow	Free Hanging (In-Line)

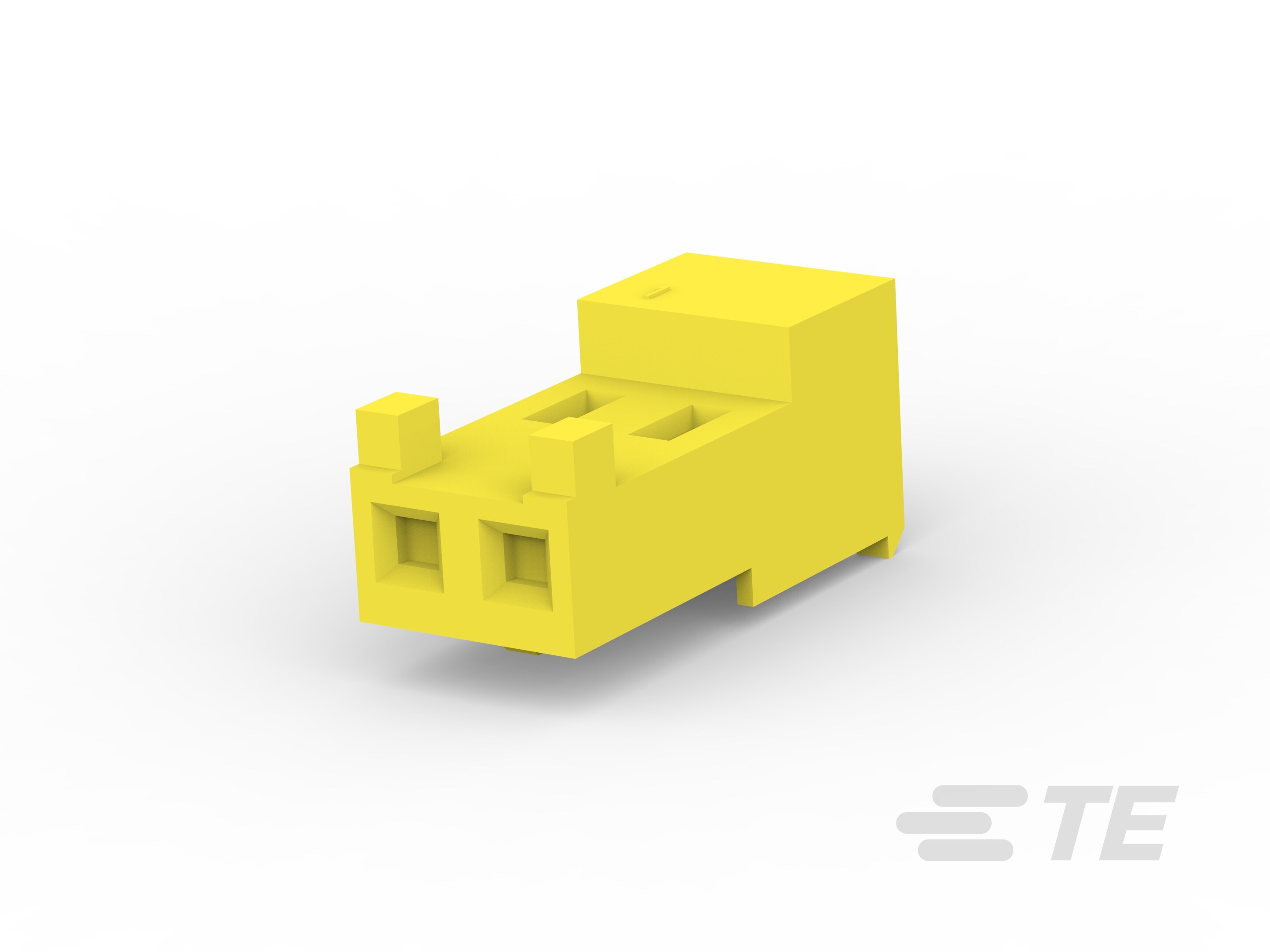

TE Connectivity AMP Connectors 3-644462-2	Receptacle	20 AWG	Closed End Polarizing Key	80 µin	Female Socket	Tin	0.156 in	Discrete Ribbon Cable	IDC	2	1	Yellow	Free Hanging (In-Line)

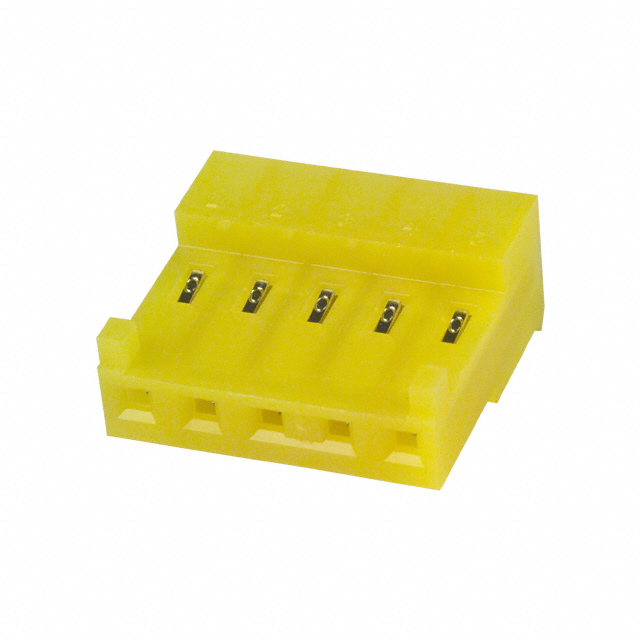

TE Connectivity AMP Connectors 3-644462-5	Receptacle	20 AWG	Closed End Polarizing Key	80 µin	Female Socket	Tin	0.156 in	Discrete Ribbon Cable	IDC	5	1	Yellow	Free Hanging (In-Line)

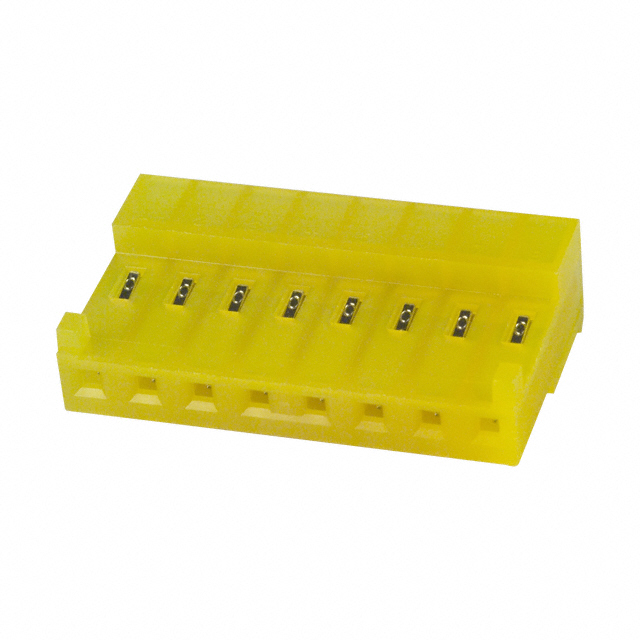

TE Connectivity AMP Connectors 3-644462-8	Receptacle	20 AWG	Closed End Polarizing Key	80 µin	Female Socket	Tin	0.156 in	Discrete Ribbon Cable	IDC	8	1	Yellow	Free Hanging (In-Line)

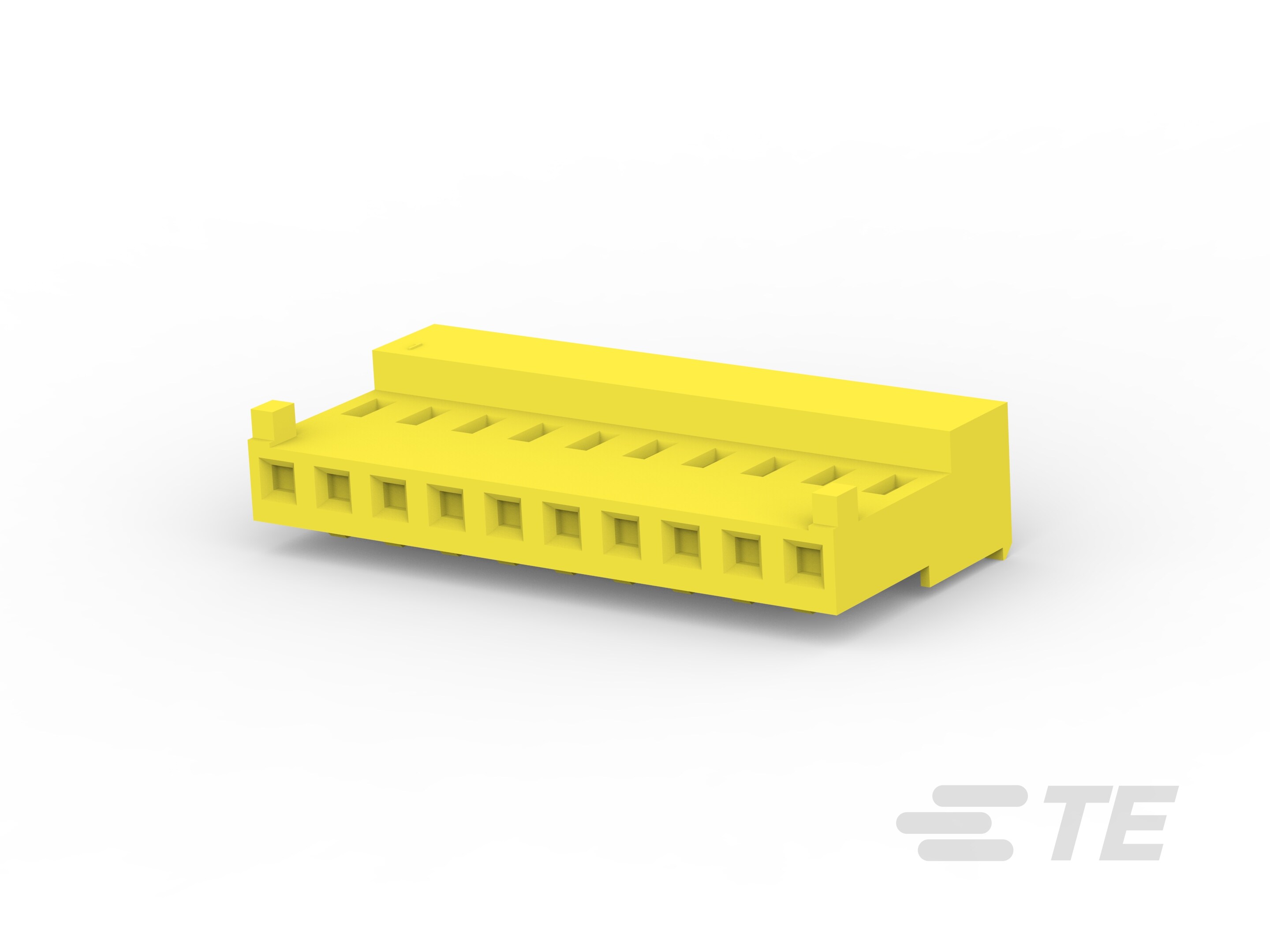

TE Connectivity AMP Connectors 4-644462-0	Receptacle	20 AWG	Closed End Polarizing Key	80 µin	Female Socket	Tin	0.156 in	Discrete Ribbon Cable	IDC	10	1	Yellow	Free Hanging (In-Line)

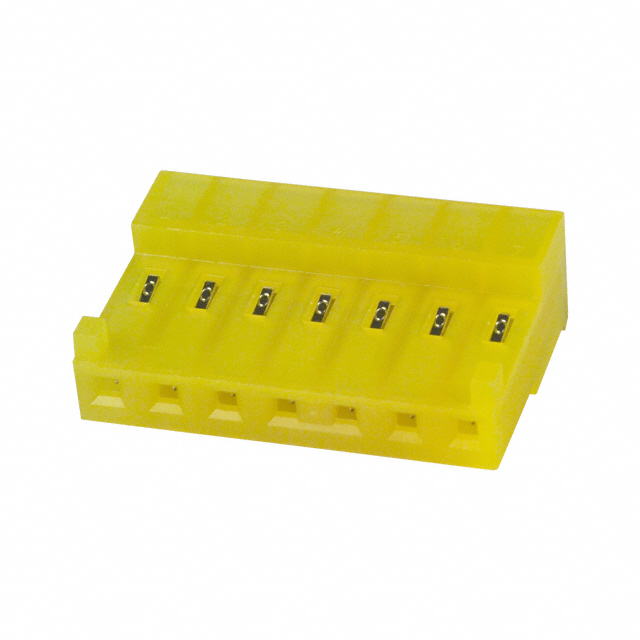

TE Connectivity AMP Connectors 644462-7	Receptacle	20 AWG	Closed End Polarizing Key	80 µin	Female Socket	Tin-Lead	0.156 in	Discrete Ribbon Cable	IDC	7	1	Yellow	Free Hanging (In-Line)

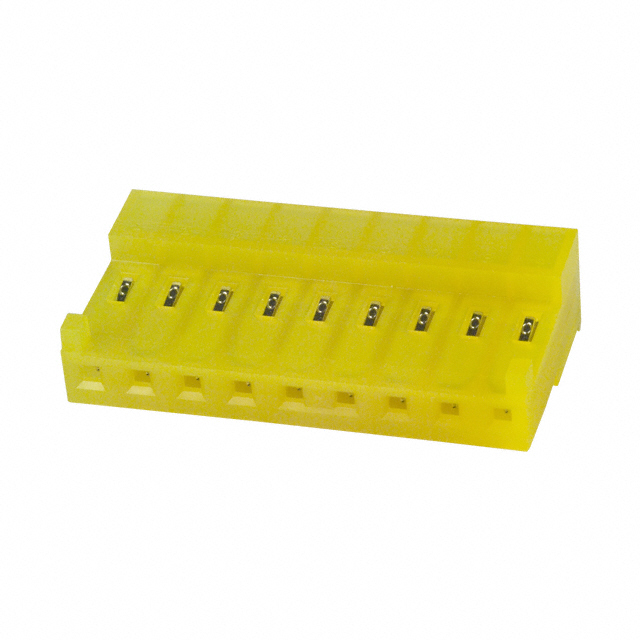

TE Connectivity AMP Connectors 3-644462-9	Receptacle	20 AWG	Closed End Polarizing Key	80 µin	Female Socket	Tin	0.156 in	Discrete Ribbon Cable	IDC	9	1	Yellow	Free Hanging (In-Line)
TE Connectivity AMP Connectors 644462-8	Receptacle	20 AWG	Closed End Polarizing Key	80 µin	Female Socket	Tin-Lead	0.156 in	Discrete Ribbon Cable	IDC	8	1	Yellow	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

644462-3 | Datasheet
