2-967640-1
ActiveTE Connectivity AMP Connectors

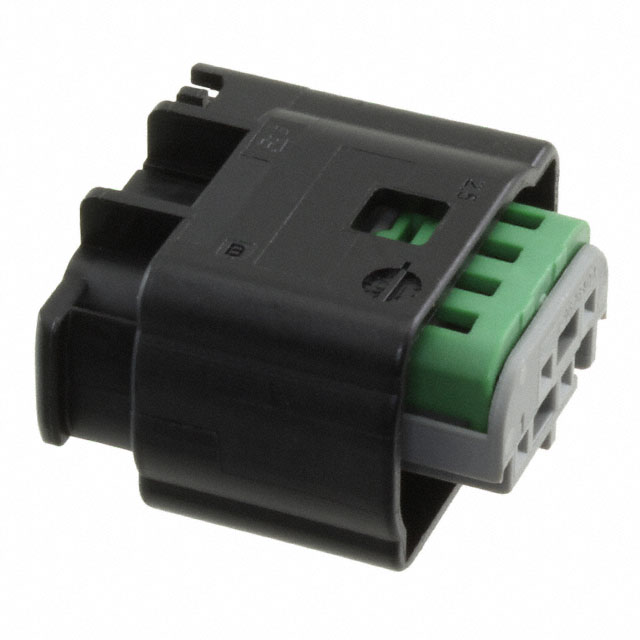

CONN RCPT HSG 4POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-967640-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-967640-1 | 967640 Series |
|---|---|---|
| Color | Gray | Blue, Black, Gray |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Holder | Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 4 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Row Spacing | - | 0.1 in |
| Row Spacing | - | 2.54 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.07 | |
| 10 | $ 1.71 | |||
| 25 | $ 1.59 | |||
| 50 | $ 1.50 | |||
| 100 | $ 1.42 | |||
| 250 | $ 1.32 | |||
| 500 | $ 1.24 | |||
| 1700 | $ 1.13 | |||
| 3400 | $ 1.07 | |||
967640 Series
CONN MQS BU-GEH EDS SW4P
| Part | Contact Type | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Positions | Color | Number of Rows | Fastening Type | Insulation Material | Connector Type | Row Spacing [x] | Row Spacing | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-967640-1 | Female Socket | Crimp | -40 °C | 120 °C | Free Hanging (In-Line) | 4 | Blue | 2 | Latch Holder | Polybutylene Terephthalate (PBT), Glass Filled | Receptacle | 0.1 in | 2.54 mm | |
TE Connectivity AMP Connectors 1-967640-1 | Female Socket | Crimp | -40 °C | 120 °C | Free Hanging (In-Line) | 4 | Black | 2 | Latch Holder | Polybutylene Terephthalate (PBT), Glass Filled | Receptacle | Contacts Not Included | ||
TE Connectivity AMP Connectors 2-967640-1 | Female Socket | Crimp | -40 °C | 120 °C | Free Hanging (In-Line) | 4 | Gray | 2 | Latch Holder | Polybutylene Terephthalate (PBT), Glass Filled | Receptacle | Contacts Not Included |
Description
General part information
967640 Series
4 Rectangular Connectors - Housings Receptacle Gray
