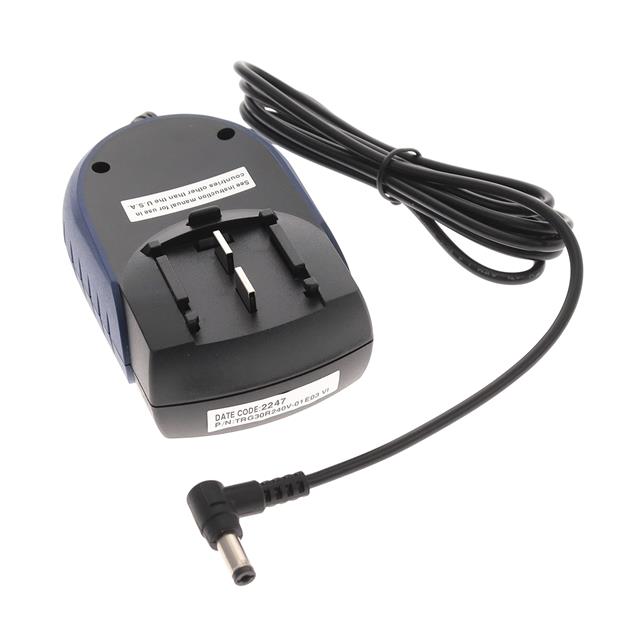

TRG30R240V-01E03 VI

Active

Cincon Electronics Co. LTD

AC/DC WALL MOUNT ADAPTER 24V 30W

Search across all available documentation for this part.

Active

Cincon Electronics Co. LTD

AC/DC WALL MOUNT ADAPTER 24V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	TRG30R240V-01E03 VI

Applications	ITE (Commercial)
Approval Agency	PSE, cULus, TUV, GS, FCC, CE
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	1.25 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug R/A
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	12 mm
Polarization	Positive Center
Power (Watts)	30 W
Region Utilized	International
Size / Dimension [x]	2.24 "
Size / Dimension [x]	57 mm
Size / Dimension [y]	57.6 mm
Size / Dimension [y]	2.27 in
Size / Dimension [z]	1.32 in
Size / Dimension [z]	33.5 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Cord Length	Cord Length	Applications	Voltage - Output	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Input Type	No Load Power Consumption [Max]	Current - Output (Max) [Max]	Form	Standard Number	Output Connector [diameter]	Output Connector [x]	Output Connector	Efficiency	Approval Agency	Polarization
Cincon Electronics Co. LTD TRG30R240V-01E03 VI	57.6 mm	2.27 in	2.24 "	1.32 in	33.5 mm	57 mm	70.9 in	1.8 m	ITE (Commercial)	24 V	-20 C	60 °C	30 W	International	90 VAC	264 VAC	Multi-Blade	Multi-Blade (Sold Separately)	75 mW	1.25 A	Wall Mount (Class II)	60950-1	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	CoC Tier 2 Level VI	CE cULus FCC GS PSE TUV	Positive Center
Cincon Electronics Co. LTD TRG30R240V-01E03-GY-BK VI	57.6 mm	2.27 in	2.24 "	1.32 in	33.5 mm	57 mm	70.9 in	1.8 m	ITE (Commercial)	24 V	-20 C	60 °C	30 W	International	90 VAC	264 VAC	Multi-Blade	Multi-Blade (Sold Separately)	75 mW	1.25 A	Wall Mount (Class II)	60950-1	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	CoC Tier 2 Level VI	CE cULus FCC GS PSE TUV	Positive Center

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 30 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
