Part	Color	Thickness	Features	Width - Outer Edges	Contact Finish	Length - Overall	Stud/Tab Size	Terminal Type	Contact Material	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Insulation	Mounting Type	Termination	Insulation Diameter (Max)	Insulation Diameter (Min)	Material - Insulation
TE Connectivity AMP Connectors 31903	Blue	0.033 in	Serrated Termination	0.343 in	Tin	0.859 in	10 Stud	Circular	Copper	16 AWG	14 AWG	Insulated	Free Hanging (In-Line)	Crimp	0.17 in	0.115 in	Vinyl
TE Connectivity AMP Connectors 31903

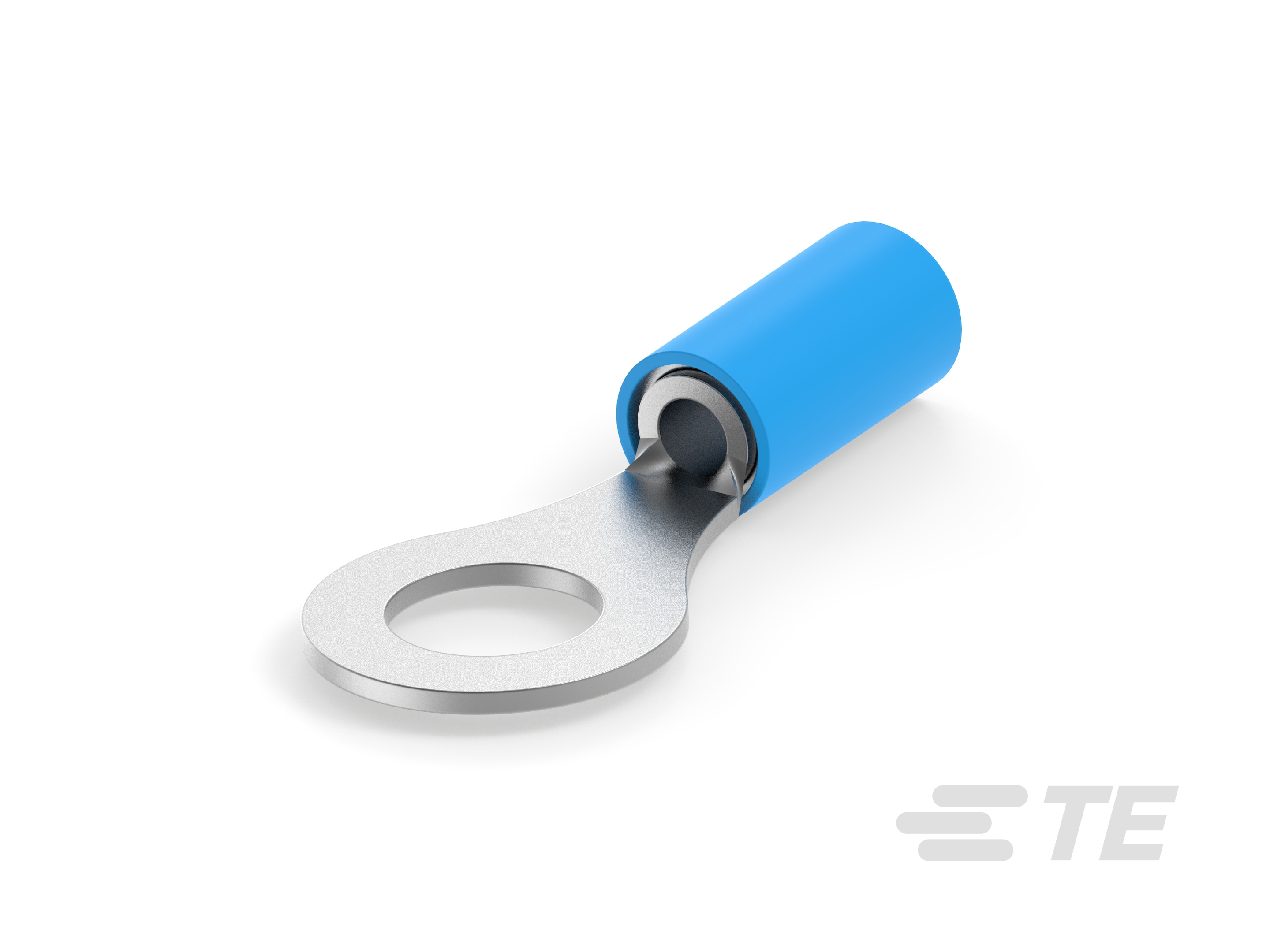

TE Connectivity AMP Connectors 31906	Blue	0.031 in	Serrated Termination	0.469 in	Tin	1.078 in	0.25 Stud	Circular	Copper	16 AWG	14 AWG	Insulated	Free Hanging (In-Line)	Crimp	0.17 in	0.115 in	Poly-Vinyl Chloride PVC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
