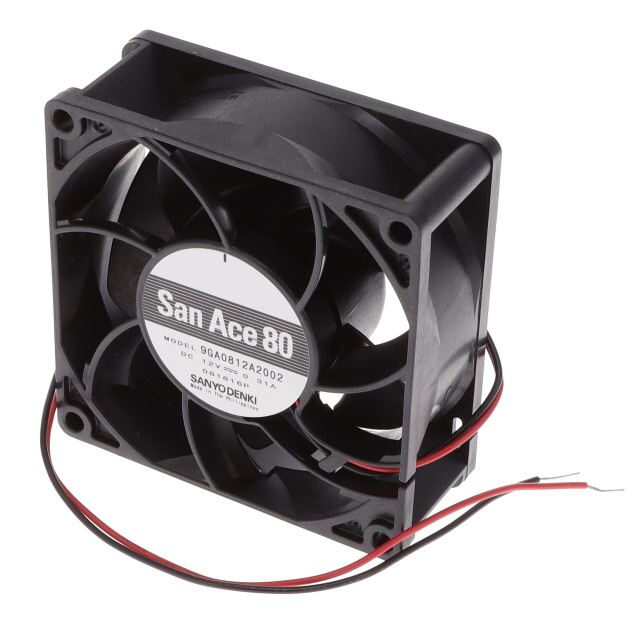

Specification	9GA0812A2002

Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Protection
Material - Blade	Plastic
Material - Frame	Plastic
Power (Watts)	3.72 W
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Width	32 mm

9GA0812 Series

Part	Weight	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Width	Approval Agency	Features	Power (Watts)	Noise	Operating Temperature (Min)	Operating Temperature (Max)	Air Flow	RPM	Fan Type	Static Pressure	Termination Leads Count	Termination Type	Termination	Voltage - Rated	Bearing Type	Lifetime	Material - Blade	Voltage Range (Min)	Voltage Range (Max)	Current Rating	Material - Frame
Sanyo Denki America Inc. 9GA0812G4002	0.243 lb	80 mm	Square	80 mm	25.2 mm	CSA TUV UL	Locked Rotor Protection	5.76 W	45 dB	-4 °F	158 °F	67.4 CFM	6800 RPM	Tubeaxial	0.6 in H2O	2 leads	Wire Leads	2 Wire Leads	12 VAC	Ball	Varies Based on Temperature	Plastic	10.8 VDC	13.2 VDC	480 mA	Plastic
Sanyo Denki America Inc. 9GA0812J4001	0.243 lb	80 mm	Square	80 mm	25.2 mm	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	7.2 W	48 dB	-4 °F	158 °F	73 CFM	7400 RPM	Tubeaxial	0.7 in H2O	3	Wire Leads	3 Wire Leads	12 VAC	Ball	Varies Based on Temperature	Plastic	10.8 VDC	13.2 VDC	600 mA	Plastic
Sanyo Denki America Inc. 9GA0812L2001		80 mm	Square	80 mm	32 mm		Locked Rotor Protection Speed Sensor (Tach)	960 mW						Tubeaxial		3	Wire Leads	3 Wire Leads	12 VAC	Ball		Plastic				Plastic
Sanyo Denki America Inc. 9GA0812H4001	0.243 lb	80 mm	Square	80 mm	25.2 mm	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	2.64 W	37 dB	-4 °F	158 °F	51.5 CFM	5200 RPM	Tubeaxial	0.35 in H2O	3	Wire Leads	3 Wire Leads	12 VAC	Ball	Varies Based on Temperature	Plastic	10.8 VDC	13.2 VDC	0.22 A	Plastic
Sanyo Denki America Inc. 9GA0812P1H611	0.353 lb	80 mm	Square	80 mm	38 mm	CSA TUV UL	Locked Rotor Protection PWM Control Speed Sensor (Tach)	7.2 W	55 dB	-4 °F	158 °F	79.4 CFM	8250 RPM	Tubeaxial	1.53 in H2O	4 leads	Wire Leads	4 Wire Leads	12 VAC	Ball	Varies Based on Temperature	Plastic	10.8 VDC	13.2 VDC	600 mA	Plastic
Sanyo Denki America Inc. 9GA0812S161	0.353 lb	80 mm	Square	80 mm	38 mm	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	11.28 W	59 dB	-4 °F	158 °F	91.8 CFM	9550 RPM	Tubeaxial	1.93 in H2O	3	Wire Leads	3 Wire Leads	12 VAC	Ball	Varies Based on Temperature	Plastic	10.8 VDC	13.2 VDC	0.94 A	Plastic
Sanyo Denki America Inc. 9GA0812P4J0011	0.243 lb	80 mm	Square	80 mm	25 mm	CSA TUV UL	Locked Rotor Protection PWM Control Speed Sensor (Tach)	7.2 W	48 dB	-4 °F	158 °F	73 CFM	7400 RPM	Tubeaxial	0.7 in H2O	4 leads	Wire Leads	4 Wire Leads	12 VAC	Ball	Varies Based on Temperature	Plastic	10.8 VDC	13.2 VDC	600 mA	Plastic
Sanyo Denki America Inc. 9GA0812B2D001		80 mm	Square	80 mm	32 mm		Locked Rotor Sensor	1.56 W						Tubeaxial		3	Wire Leads	3 Wire Leads	12 VAC	Ball		Plastic				Plastic
Sanyo Denki America Inc. 9GA0812P1G61	0.353 lb	80 mm	Square	80 mm	38 mm	CSA TUV UL	Locked Rotor Protection PWM Control Speed Sensor (Tach)	14.4 W	60 dB	-4 °F	158 °F	100.6 CFM	10500 RPM	Tubeaxial	1.93 in H2O	4 leads	Wire Leads	4 Wire Leads	12 VAC	Ball	Varies Based on Temperature	Plastic	10.8 VDC	13.2 VDC	1.2 A	Plastic
Sanyo Denki America Inc. 9GA0812A2002		80 mm	Square	80 mm	32 mm		Locked Rotor Protection	3.72 W						Tubeaxial		2 leads	Wire Leads	2 Wire Leads	12 VAC	Ball		Plastic				Plastic
