345-051-558-688
ActiveEDAC Inc.

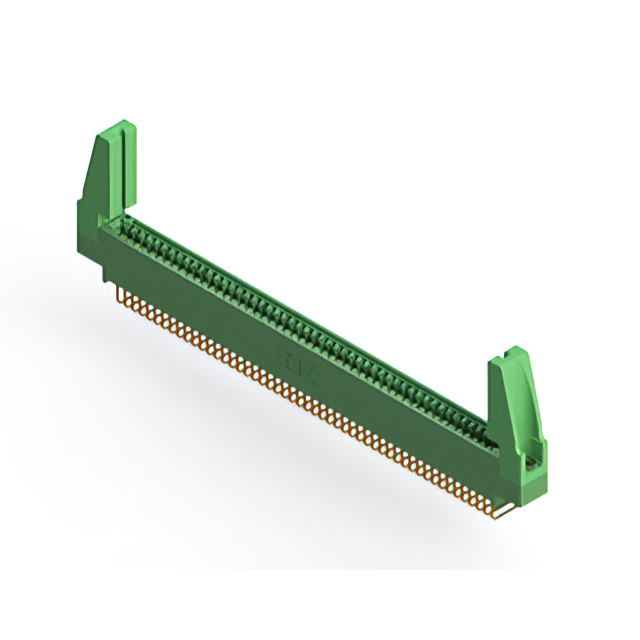

2.54MM RIGHT-ANGLE 51P -40℃~+105℃ PUSH-PULL,P=2.54MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-051-558-688
ActiveEDAC Inc.
2.54MM RIGHT-ANGLE 51P -40℃~+105℃ PUSH-PULL,P=2.54MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-051-558-688 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 51 |
| Number of Positions/Bay/Row [custom] | 51 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
345-051 Series
...
| Part | Number of Rows | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Color | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Material - Insulation | Number of Positions | Card Type | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Termination Rows | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Termination | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Female | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Polyester Thermoplastic | 51 | Non Specified - Single Edge | Cantilever | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Gold | 1 | Copper Alloy | 10 Áin | 0.25 Ám | 51 | Wire Wrap | |||
EDAC Inc. | 1 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Female | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 51 | Non Specified - Single Edge | Cantilever | 4-40 Threaded Insert Top Mount Opening | Gold | 1 | Copper Alloy | 10 Áin | 0.25 Ám | 51 | Solder | |||||
EDAC Inc. | 1 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Female | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 51 | Non Specified - Single Edge | Cantilever | 4-40 Threaded Insert Top Mount Opening | Gold | 1 | Copper Alloy | 10 Áin | 0.25 Ám | 51 | Solder | Card Guides | ||||
EDAC Inc. | 1 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Female | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 51 | Non Specified - Single Edge | Cantilever | Side Mount Opening Unthreaded | Gold | 1 | Copper Alloy | 10 Áin | 0.25 Ám | 51 | Wire Wrap | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Female | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 51 | Non Specified - Single Edge | Cantilever | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Gold | 1 | Copper Alloy | 10 Áin | 0.25 Ám | 51 | Solder | |||
EDAC Inc. | 1 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Female | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 51 | Non Specified - Single Edge | Cantilever | Side Mount Opening Unthreaded | Gold | 1 | Copper Alloy | 10 Áin | 0.25 Ám | 51 | Wire Wrap | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Female | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 51 | Non Specified - Single Edge | Cantilever | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Gold | 1 | Copper Alloy | 10 Áin | 0.25 Ám | 51 | Solder Eyelet(s) | |||
EDAC Inc. | 1 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Female | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 51 | Non Specified - Single Edge | Cantilever | 4-40 Threaded Insert Top Mount Opening | Gold | 1 | Copper Alloy | 10 Áin | 0.25 Ám | 51 | Wire Wrap | Card Guides | ||||
EDAC Inc. | 1 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Female | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Polyester Thermoplastic | 51 | Non Specified - Single Edge | Cantilever | 4-40 Threaded Insert Top Mount Opening | Gold | 1 | Copper Alloy | 10 Áin | 0.25 Ám | 51 | Wire Wrap | Card Guides | ||||
EDAC Inc. | 1 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Female | Green | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Polyester Thermoplastic | 51 | Non Specified - Single Edge | Cantilever | Gold | 1 | Copper Alloy | 10 Áin | 0.25 Ám | 51 | Wire Wrap | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-051 Series
51 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
