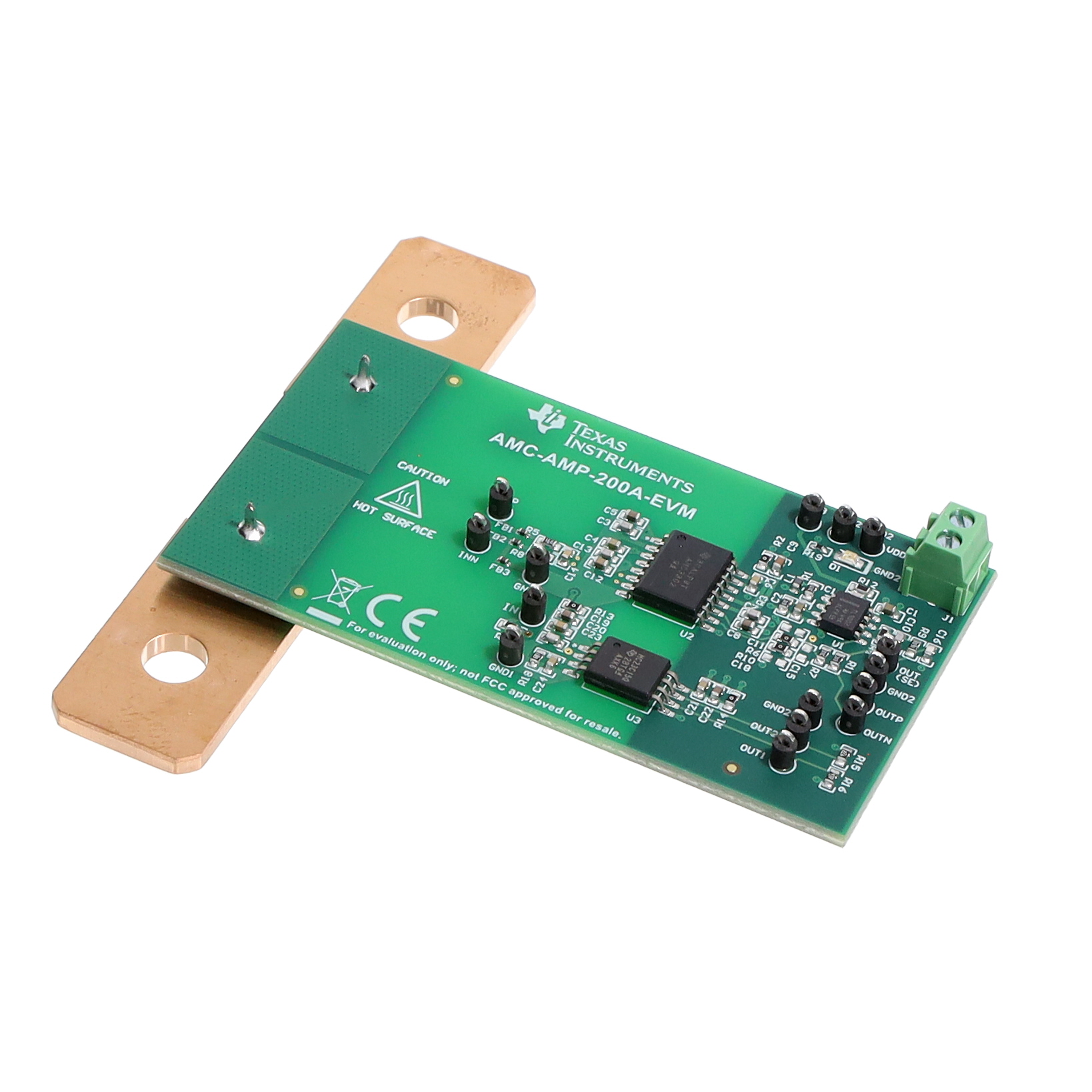

AMC-AMP-200A-EVM
ActiveTexas Instruments
AMC3302 EVALUATION MODULE FOR 20
AMC-AMP-200A-EVM
ActiveTexas Instruments
AMC3302 EVALUATION MODULE FOR 20
Description
General part information
AMC-AMP-200A-EVM
AMC3302 EVALUATION MODULE FOR 20
Technical Specifications
Parameters and characteristics for this part
| Specification | AMC-AMP-200A-EVM |
|---|---|
| Amplifier Type | Current Sense |
| Channels per IC (Count) | 1 |
| Channels per IC (Single) | 1 |
| Channels per IC (Type) | Single |
| Contents | Board |
| Current - Output / Channel | 14 mA |
| Current - Supply (Main IC) | 0.0295 mA |
| Embedded | No |
| Interface | Digital |
| Output Type | Differential |
| Sensing Range (Max) | 200 A |
| Sensing Range (Min) | -200 A |
| Sensor Type | Current Sensor |
| Supply Configuration | Dual, Single |
| Utilized IC / Part | AMC3302 |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 3 V |
| Voltage - Supply (Single) Maximum | 5.5 V |
| Voltage - Supply (Single) Minimum | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
