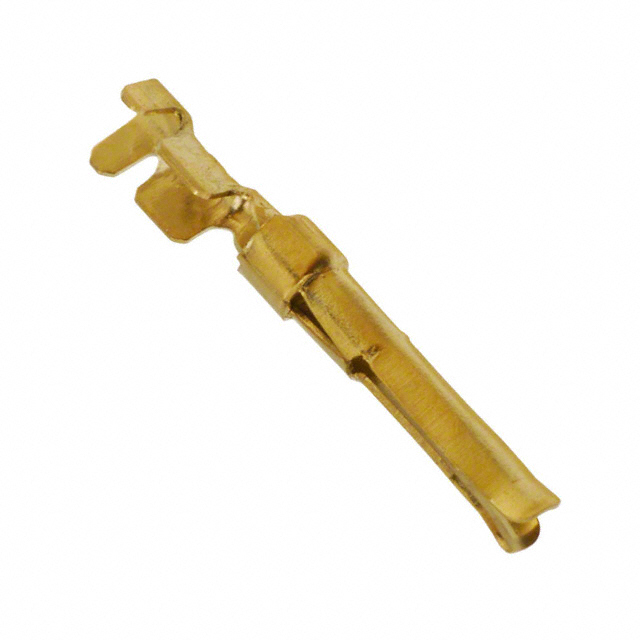

L17-RR-D1-F-01-100
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB SOCKET 20-24AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L17-RR-D1-F-01-100
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB SOCKET 20-24AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L17-RR-D1-F-01-100 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Form | Stamped |
| Contact Material | Phosphor Bronze |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | Insulation Support |
| Termination Finish | Gold |
| Termination Finish Thickness | Flash |
| Type | Signal |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.16 | |
| 10 | $ 0.13 | |||
| 25 | $ 0.10 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.09 | |||
| 300 | $ 0.08 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.06 | |||
Description
General part information
L17RRD1 Series
D-Sub Contact Female Socket Gold 20-24 AWG Crimp Stamped
