1241001-1
ActiveTE Connectivity AMP Connectors

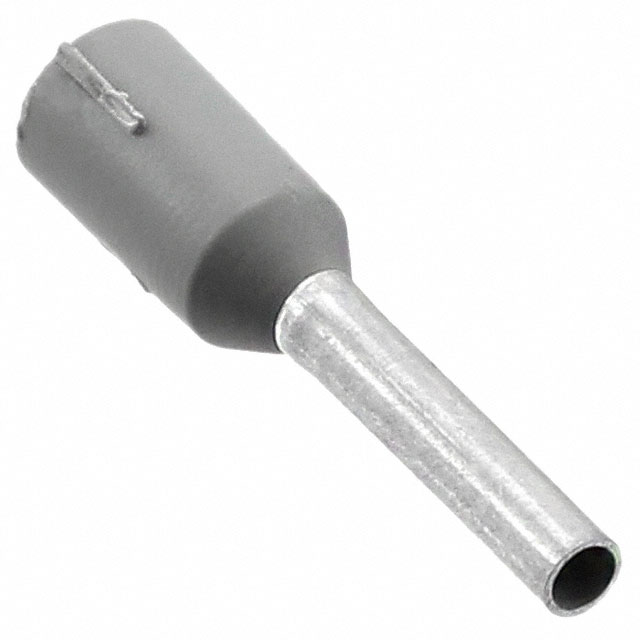

CONN FERRULE DIN 18AWG GRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241001-1
ActiveTE Connectivity AMP Connectors
CONN FERRULE DIN 18AWG GRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1241001-1 |
|---|---|
| Color | Gray |
| Insulation | Insulated |
| Length - Overall [x] | 14.5 mm |
| Length - Pin [x] | 8 mm |
| Size | 18 AWG |
| Size | 0.75 mm² |
| Style | DIN |
| Type | Single Wire |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.18 | |
| 10 | $ 0.15 | |||
| 25 | $ 0.14 | |||
| 50 | $ 0.13 | |||
| 100 | $ 0.13 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| 2500 | $ 0.10 | |||
| Tape & Reel (TR) | 10000 | $ 0.08 | ||
| 30000 | $ 0.07 | |||
| 50000 | $ 0.06 | |||
1241001 Series
CONN FERRULE DIN 18AWG GRAY
| Part | Insulation | Size | Size | Type | Color | Length - Pin [x] | Length - Overall [x] | Style |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1241001-1 | Insulated | 18 AWG | 0.75 mm² | Single Wire | Gray | 8 mm | 14.5 mm | DIN |
Description
General part information
1241001 Series
Gray Wire Ferrule Connector DIN 18 AWG (0.75mm²) Single Wire
